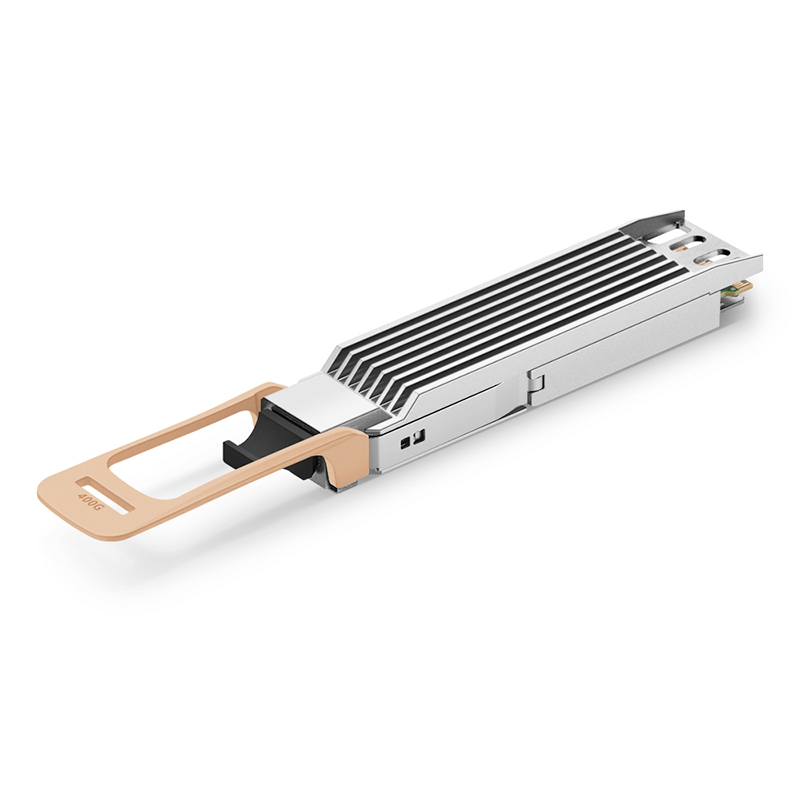

400G OSFP

Pro-optics provides hyperscale data centers with a series of 400G OSFP pluggable optical transceiver modules based on 50G PAM4 technologies. These modules can cover the interconnection links within 50m/100m over multimode fiber (MMF) or 500m to 30km over single-mode fiber (SMF).

Features

  • Hot-pluggable OSFP form factor transceiver modules

  • Compliant with OSFP MSA, CMIS and IEEE 802.3 specifications

  • 4x 100G PAM4 electrical interface

  • 4x 100G PAM4 optical interface

  • Data rate up to 425Gbps

  • 850nm VCSEL or 1310nm/CWDM/LWDM EML transmitters and PIN or APD receivers

  • Reach up to 50m/100m over MMF or 500m/2km/10km/30km over SMF

  • Duplex LC/CS or single/dual-MPO receptacle

  • Low power consumption

  • Built-in digital diagnostic functions

  • Case operating temperature range: 0°C to 70°C

  • 3.3V power supply voltage

  • RoHS compliant (lead free)

Applications

  • Hyperscale Data Center

  • High-Performance Computing

Ordering Information

P/NDescriptionData RateWavelengthDistanceConnectorTemp.

POOS40VR4

400G OSFP112 VR4 MPO-12.pdf

400G OSFP-RHS VR4

(MMA4Z00-NS400)(Flat top/RHS)

4x100G, 400GbE, NDR850nm50m/100m (OM4)MPO-12C
POOS40SR4400G OSFP-RHS SR44x100G, 400GbE850nm100m (OM4)MPO-12C

POOS40DR4-RHS

400G OSFP-RHS DR4

(MMS4X00-NS400)(Flat top/RHS)

4x100G, 400GbE, NDR1310nm500mMPO-12C
POOS40XDR4400G OSFP XDR44x100G, 400GbE1310nm2kmMPO-12C
POOS40PLR4400G OSFP PLR44x100G, 400GbE1310nm10kmMPO-12C
POOS40FR4400G OSFP FR44x100G, 400GbECWDM2kmDuplex LCC
POOS40LR4400G OSFP LR44x100G, 400GbECWDM10kmDuplex LCC
POOS40ER4400G OSFP ER44x100G, 400GbEnWDM30kmDuplex LCC
