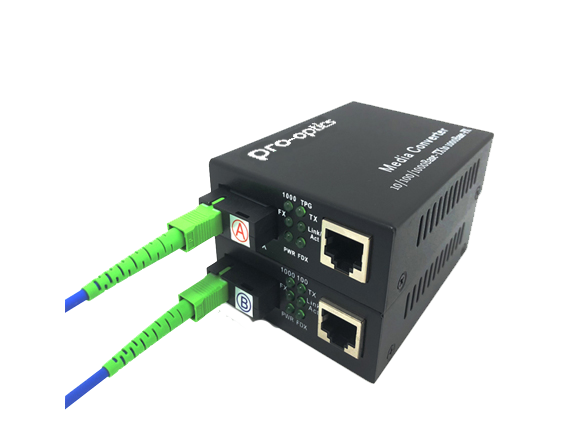

10 / 100base-tx to 100Base-FX media converter

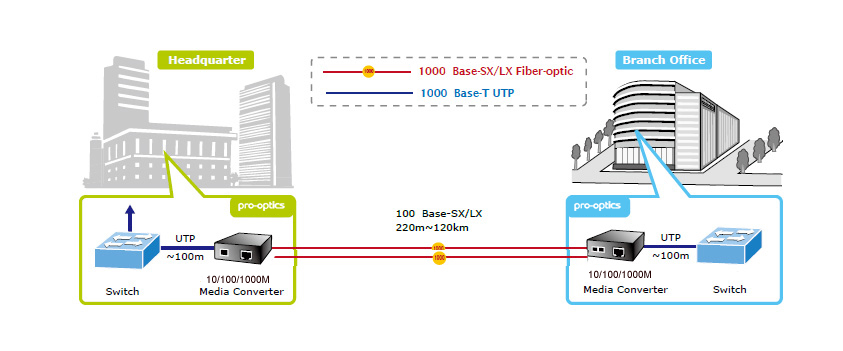

The WD-100-35-20 &Pro-optics-WD-100-53-20 converter complies with IEEE 802.3 standards. It is designed to convert data signal between 10/100 Base-TX and 100 Base Fx Fast Ethernet. The media converter is connected between Fiber cable and twisted cable segments with network operating smoothly. . Adopting WDM technology, Pro-optics-WDM-100-35-20 &Pro-optics-WDM-100-53-20 takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. BiDi WDM - Wave Division Multiplexing Technology allows you use just a 1 fiber cable instead of 2, because transmit and receive channels are separated by different wavelenghts.

 * Complies with IEEE802.3 and IEEE802.3u 10/100Base-TX and 100Base-FX
 * MTU size supported 1600 bytes maximum
 * Supports pure converter mode data forwarding for extreme low latency
 * Built in 128Kb RAM for data buffer
 * Supports modified cut-through frame forwarding for low latency
 * Optional forward fragments
 * 10/100Mbps and full/half duplex automatically configure in TP port
 * Supports end fault function (optional)
 * Mini Type. (90mm*70mm*27mm)
 * MDI/MDI-X Auto Negotiation
 * Support EEPROM configuration
 * LED Indicators: POWER, FX ，TP
 * FCC Class A & CE approved
 * LLR, LFP - Link Loss Return (LLR), Link Failure Pass (LFP) features supported
 * RoHs compliant
 * Only 1 fiber used instead of 2 - WDM BiDi technology
 * Stainless steel parts (value added feature)
 * Can fit 14 slots media converter chassis ( Pro-optics-MC-R14)

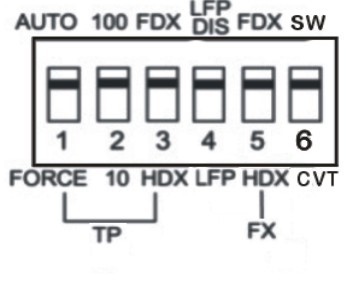

 * Our 10/100M have DIP Switch, the DIP define as follow. support 9K and LFP function




Product
ProtocolIEEE 802.3, 10BASE-T
IEEE 802.3u, 100BASE-TX
IEEE 802.3u, 100BASE-FX
IEEE 802.3x, Flow Control
Dimensions (W x D x H)90 x 70 x 27 mm
Weight0.2kg
Power Input5V DC, 2A, max.
Power SupplyAC Adapter 100-240VAC Frequency: 50-60Hz
EnclosureCompact-sized metal housing
Case with anticorrosion treatment
Electrostatic paint
Connectors and Cables
Shielded Twisted-pairRJ45, Category 5 (EIA/TIA 568)
Fiber-opticPro-optics-DU-100-13-2ST : ST / Multi-mode / 2km
Pro-optics-DU-100-13-2  : SC / Multi-mode / 2km
Pro-optics-DU-100-13-2FC : FC/ Multi-mode / 2km
Pro-optics-DU-100-13-20 : SC / Single mode / 20km
Pro-optics-DU-100-13-40 : SC / Single mode / 40km
Pro-optics-DU-100-13-60 : SC / Single mode / 60km
Pro-optics-WDM-100-35-20: WDM SC / Single mode / 20km
Pro-optics-WDM-100-53-20: WDM SC / Single mode / 20km
Pro-optics-WDM-100-35-60: WDM SC / Single mode / 60km
Pro-optics-WDM-100-53-60: WDM SC / Single mode / 60km
Multi-mode Cable50/125, 62.5/125 µm
Single-mode (SM) Cable9/125 µm
Optic WavelengthPro-optics-DU-100-13-2ST: 1310nm
Pro-optics-DU-100-13-2: 1310nm
Pro-optics-DU-100-13-2FC: 1310nm
Pro-optics-DU-100-13-20: 1310nm
Pro-optics-DU-100-13-40: 1310nm
Pro-optics-DU-100-13-60: 1310nm
Pro-optics-WD-100-35-20: TX: 1310nm; RX: 1550nm
Pro-optics-WD-100-53-20: TX: 1550nm; RX: 1310nm
Pro-optics-WD-100-35-60: TX: 1310nm; RX: 1550nm
Pro-optics-WD-100-53-60: TX: 1550nm; RX: 1310nm
Max. Launch Power (dBm)Pro-optics-DU-100-13-2ST: -14
Pro-optics-DU-100-13-2: -14
Pro-optics-DU-100-13-2FC-803: -14
Pro-optics-DU-100-13-20:-8
Pro-optics-DU-100-13-40:-4
Pro-optics-DU-100-13-60:0
Pro-optics-WD-100-35-20:-8
Pro-optics-WD-100-53-20:-8
Pro-optics-WD-100-35-60:0
Pro-optics-WD-100-53-60:0
Min. Launch Power (dBm)Pro-optics-DU-100-13-2ST: -20 (62.5/125µm), -23.5 (50/125µm)
Pro-optics-DU-100-13-2: -20 (62.5/125µm), -23.5 (50/125µm)
Pro-optics-DU-100-13-2FC: -20 (62.5/125µm), -23.5 (50/125µm)
Pro-optics-DU-100-13-20: −20
Pro-optics-DU-100-13-40: -15
Pro-optics-DU-100-13-60:-5
Pro-optics-WD-100-35-20:-14
Pro-optics-WD-100-53-20:-14
Pro-optics-WD-100-35-60:-5
Pro-optics-WD-100-53-60:-5
Receive Sensitivity (dBm)Pro-optics-DU-100-13-2ST: -31.8
Pro-optics-DU-100-13-2: -31.8
Pro-optics-DU-100-13-2FC: -31.8
Pro-optics-DU-100-13-20: -32
Pro-optics-DU-100-13-40:-34
Pro-optics-DU-100-13-60: -35
Pro-optics-WD-100-35-20:-31
Pro-optics-WD-100-53-20:-31
Pro-optics-WD-100-35-60:-34
Pro-optics-WD-100-53-60:-34
Maximum Input Power (dBm)Pro-optics-DU-100-13-2ST: -14
Pro-optics-DU-100-13-2: -14
Pro-optics-DU-100-13-2FC: -14
Pro-optics-DU-100-13-20:0
Pro-optics-DU-100-13-40:0
Pro-optics-DU-100-13-60:0
Pro-optics-WD-100-35-20:0
Pro-optics-WD-100-53-20:0
Pro-optics-WD-100-35-60:0
Pro-optics-WD-100-53-60:0
Supported Distances and Functions
Shielded Twisted-pair100m (328 ft.)
Multi-mode Fiber Optic412m (1,350 ft.) (half-duplex)
2km (1.2 miles) (full-duplex)
Single-mode (SM)412m (1,350 ft.) (half-duplex)
15km (9 miles) (full-duplex)
20km (12 miles) (full-duplex)
35km (21 miles) (full-duplex)
50km (31 miles) (full-duplex)
60km (37 miles) (full-duplex)
Port ModeTP: Half and full duplex, auto-negotiation
FX: Half and full duplex via DIP switch
Environment & Emissions
Operating EnvironmentTemperature: 0~50 degrees C
Humidity: 5~90% non-condensing
Storage EnvironmentTemperature: -40~70 degrees C
Humidity: 5~90% non-condensing
EmissionsFCC Class A, CE Class A
