FC-FC Patch Cables

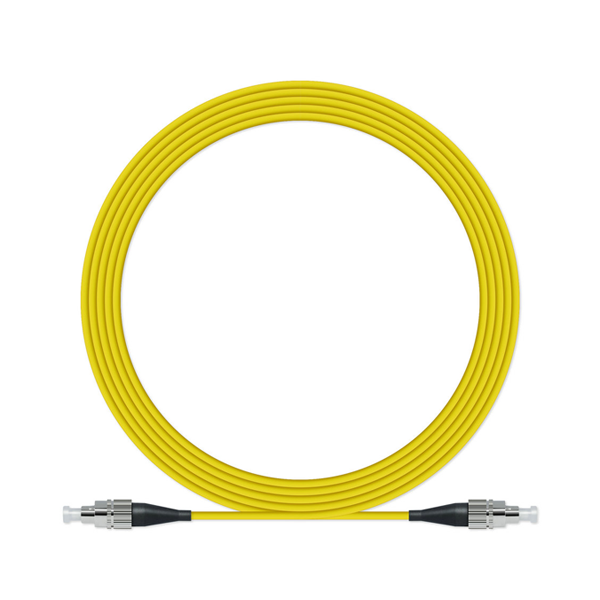

FC to FC 9/125μm OS2 Singlemode Duplex Fiber Patch Cable (SC-SC, 2.0mm, UPC, OFNR, Yellow) Fiber Optic Patch Cable also is known as fiber patch cord, optical cable, or fiber optic jumper. As an important component commonly used in fiber-optic networks, high-quality fiber patch cables are essential for any high-performance fiber-optic network. 3c-link offers an extensive line of FC to FC 9/125µm OS2 single-mode duplex fiber optic patch cables with many choices of different lengths, jacket material, polish, and cable diameter. Those SC to SC 9/125µm single-mode OS2 fiber patch cables support long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which provides an ideal fiber cabling solution with an extremely competitive price for users in data communication and telecommunication networks.

Features

• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• Ideal solution for high-speed data transmission

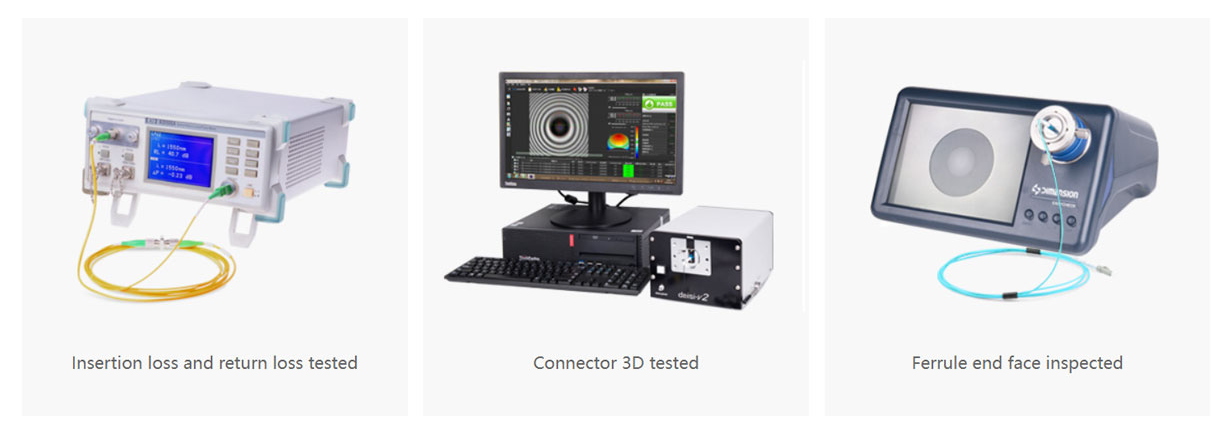

• 100% inspected for optical characteristics before shipment

Specification

Fiber Type	9/125µm Singlemode OS2	Fiber Count	Duplex (2-fiber)
Connector Type	SC to SC	Polish	UPC to UPC
Cable Length	1m,2m,3m … 50m or Customize	Cable Diameter	2.0 mm
Tensile Strength	70 N	Length Tolerance	+/- 1cm
Insertion Loss	≤0.2dB	Return Loss	≥50dB
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Jacket Material	PVC (OFNR riser-rated)	Jacket Color	Yellow
Environment	Operating: -20°C to 70°C Storage: -40°C to 85°C	Compliance	Telcordia GR-326-CORE RoHS compliant

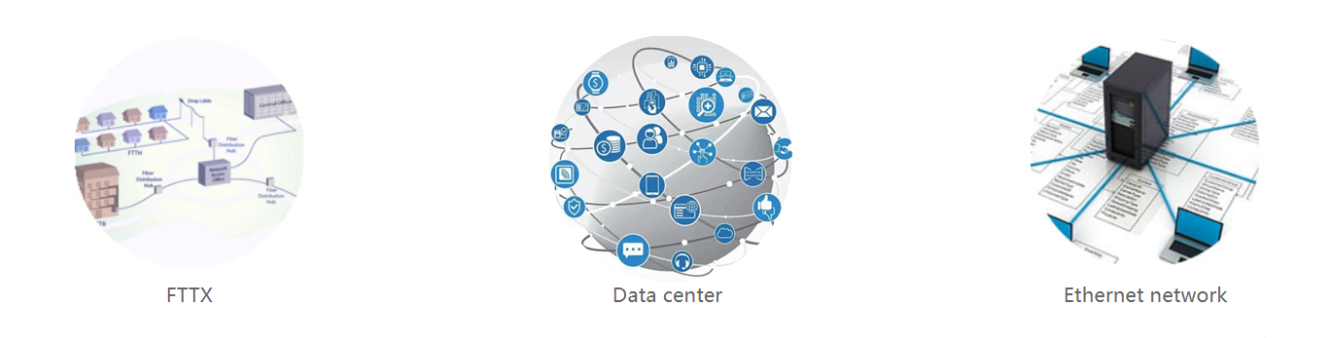

Application	Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication	Application	Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations
