Optical Layer Systems

Supports C-band DWDM system optical amplification.
Supports a maximum saturated output power of -5dBm and a minimum input power of -38dBm.
Low noise figure, high gain and low power consumption.
Supports SNMP-based unified network management platform, network management mode CLI, Web, NetRiver (graphical interface).
Monitorable: Pump drive current, pump output power, pump switch, pump temperature, input optical power, output optical power, module temperature.

System Parameter		Technical Index
Wavelength range		1528nm~1565nm
Input power range		Minimum: -38dBm
Output power range		-28dBm~-5dBm
Maximum gain		10dB
Noise figure		3dB
Gain flatness		3dB
Output isolation		40dB
Input/output return loss		55dB
Output pump leakage		-30dBm
Polarization dependent gain		0.5dB
Polarization mode dispersion		0.5ps
Network management mode		CLI、NetRiver、Web
Product dimension		177(W)× 40(H)× 225(D)(mm)
Environmental requirements	Working temperature	-10℃ ~ 70℃
	Storage temperature	-40℃ ~ 80℃
	Relative humidity	5% ~ 95% no condensation.
Safety and EMC		Compliance with FCC, UL, CE, TUV, CSA standards.
Power consumption		<30W

You need help?

For questions about PRO-OPTICS products, to schedule a demo or speak with a sales representative, complete the form below, and we’ll be in touch shortly.

Send

Raman Fiber Amplifier

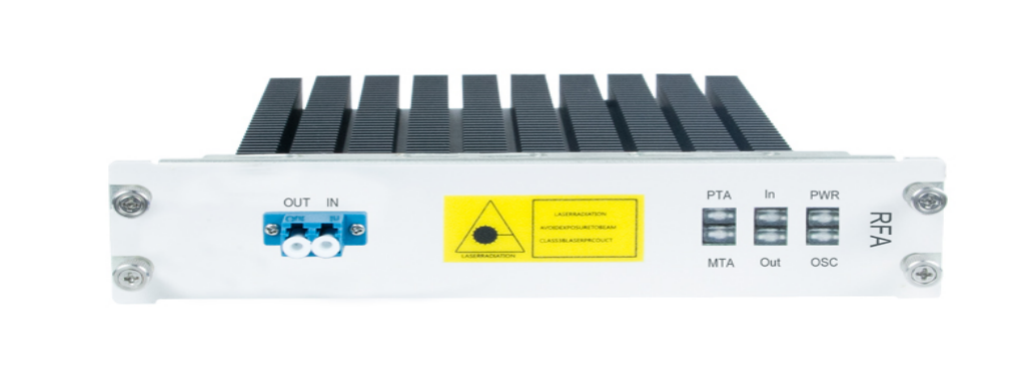

RFA Card
