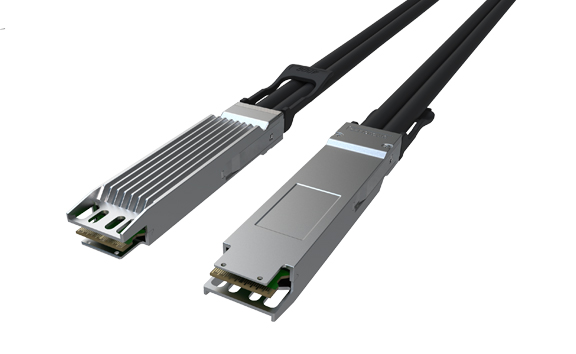

800G OSFP DAC

Pro-optics 800G OSFP passive or active direct-attached copper cable (DAC) assemblies are compatible with 800GbE and InfiniBand networking equipment in data center. This portfolio is suitable for very short distances and offers a highly cost-effective way to establish an 800 Gigabit link connectivity between devices using OSFP and OSFP or QSFP112 ports. The OSFP copper cables are designed for 800Gb/s high-speed interconnecting networking applications such as data center, high-performance computing networks, enterprise core and distribution layers.

Features

  • 2x400Gb/s data rate OSFP to 1x OSFP or 2/4x OSFP/QSFP112

  • Based on 8-channels of 100G-PAM4 modulation

  • 3m or 5m max length

  • Low power consumption

  • Operating case temperature 0°C to +70°C

  • Single 3.3V supply voltage

  • Hot pluggable

  • RoHS compliant

  • LSZH (Low Smoke Zero Halogen) jacket

  • LF (Lead Free) HF (Halogen Free) PCB

  • SFPmsa.org based

  • SFF-8636 based I2C management interface

Applications

  • Low EMI radiation Switches, servers and routers

  • Data Center networks

  • Storage area networks

  • High performance computing

  • Telecommunication and wireless infrastructure

  • Medical diagnostics and networking

  • Test and measurement equipment

Ordering Information

800Gb/s Twin-port OSFP to 2x400Gb/s OSFP InfiniBand ACC (Active DAC)

P/NDescriptionData RateAWGLengthMax. Power Consumption
POOS80A3M800G OSFP to 800G OSFP-RHS(Flat-top) ACC, MCA4J80-N003-FTFIB NDR30AWG3m1.5W per port
POOS80A4M800G OSFP to 800G OSFP ACCIB NDR30AWG4m1.5W per port
POOS80A5M800G OSFP to 800G OSFP ACCIB NDR26AWG5m1.5W per port

800Gb/s Twin-port OSFP to 2x400Gb/s OSFP-RHS(Flat-top) Splitter ACC (Active DAC)

P/NDescriptionData RateAWGLengthMax. Power Consumption
POOS80A2OS4M800G OSFP to 2x 400G OSFP-RHS(Flat-top) ACC, MCA7J60-N004IB NDR30AWG4m1.5W per 800G port, 0.6W per 400G port
POOS80A2OS5M800G OSFP to 2x 400G OSFP-RHS(Flat-top) ACC,  MCA7J60-N005IB NDR26AWG5m1.5W per port, 0.6W per 400G port

800Gb/s Twin-port OSFP to 2x400Gb/s QSFP112 Splitter ACC (Active DAC)

P/NDescriptionData RateAWGLengthMax. Power Consumption
POOS80A2QS4M800G OSFP to 2x 400G QSFP112 ACC, MCA7J70-N004IB NDR30AWG4m1.5W per 800G port, 0.6W per 400G port
POOS80A2QS5M800G OSFP to 2x 400G QSFP112 ACC, MCA7J70-N004IB NDR26AWG5m1.5W per port, 0.6W per 400G port

800Gb/s Twin-port OSFP to 4x200Gb/s OSFP-RHS(Flat-top) Splitter ACC (Active DAC)

P/NDescriptionData RateAWGLengthMax. Power Consumption
POOS80A4OS4M800G OSFP to 4x 200G OSFP-RHS(Flat-top) ACC, MCA7J70-N004IB NDR30AWG4m1.5W per 800G port, 0.3W per 200G port
POOS80A2OS5M800G OSFP to 4x 200G OSFP-RHS(Flat-top) ACC, MCA7J70-N005IB NDR26AWG5m1.5W per port, 0.3W per 200G port

800Gb/s Twin-port OSFP to 4x200Gb/s QSFP112 Splitter ACC (Active DAC)

P/NDescriptionData RateAWGLengthMax. Power Consumption
POOS80A4QS4M800G OSFP to 4x 200G QSFP112 ACC, MCA7J75-N004IB NDR30AWG4m1.5W per 800G port, 0.3W per 200G port
POOS80A2QS5M800G OSFP to 4x 200G QSFP112 ACC, MCA7J75-N004IB NDR26AWG5m1.5W per port, 0.3W per 200G port

800Gb/s Twin-port OSFP to 800Gb/s Twin-port OSFP InfiniBand PCC (Passive DAC)

P/NDescriptionData RateAWGLength
POOS80P0.5M800G OSFP to 800G OSFP PCC, Finned-top to Finned-top, MCP4Y10-N00AIB NDR30AWG0.5m
POOS80P1M800G OSFP to 800G OSFP PCC, Finned-top to Finned-top, MCP4Y10-N001IB NDR30AWG1m
POOS80P1M-F800G OSFP to 800G OSFP PCC, Finned-top to Flat-top(RHS), MCP4Y10-N001-FTFIB NDR30AWG1m
POOS80P1.5M800G OSFP to 800G OSFP PCC, Finned-top to Finned-top, MCP4Y10-N01AIB NDR30AWG1.5m
POOS80P2M800G OSFP to 800G OSFP PCC, Finned-top to Finned-top, MCP4Y10-N002IB NDR30AWG2m

800Gb/s Twin-port OSFP to 2x400Gb/s OSFP-RHS (Flat-top) Splitter PCC (Passive DAC)

P/NDescriptionData RateAWGLength
POOS80P2OS1M800G OSFP to 2x 400G OSFP-RHS(Flat-top) PCC, MCP7Y50-N001IB NDR30AWG1m
POOS80P2OS1.5M800G OSFP to 2x 400G OSFP-RHS(Flat-top) PCC, MCP7Y50-N01AIB NDR30AWG1.5m
POOS80P2OS2M800G OSFP to 2x 400G OSFP-RHS(Flat-top) PCC, MCP7Y50-N002IB NDR26AWG2m
POOS80P2OS2.5M800G OSFP to 2x 400G OSFP-RHS(Flat-top) PCC, MCP7Y50-N02AIB NDR26AWG2.5m
POOS80P2OS3M800G OSFP to 2x 400G OSFP-RHS(Flat-top) PCC, MCP7Y50-N002IB NDR26AWG3m

800Gb/s Twin-port OSFP to 2x400Gb/s QSFP112 Splitter PCC (Passive DAC)

P/NDescriptionData RateAWGLength
POOS80P2QS1M800G OSFP to 2x 400G QSFP112 PCC, MCP7Y10-N001IB NDR30AWG1m
POOS80P2QS1.5M800G OSFP to 2x 400G QSFP112 PCC, MCP7Y10-N01AIB NDR30AWG1.5m
POOS80P2QS2M800G OSFP to 2x 400G QSFP112 PCC, MCP7Y10-N002IB NDR26AWG2m
POOS80P2QS2.5M800G OSFP to 2x 400G QSFP112 PCC, MCP7Y10-N02AIB NDR26AWG2.5m
POOS80P2QS3M800G OSFP to 2x 400G QSFP112 PCC, MCP7Y10-N003IB NDR26AWG3m

800Gb/s Twin-port OSFP to 4x200Gb/s OSFP-RHS(Flat-top) Splitter PCC (Passive DAC)

P/NDescriptionData RateAWGLength
POOS80P4OS1M800G OSFP to 4x 200G OSFP-RHS(Flat-top) PCC, MCP7Y50-N001IB NDR30AWG1m
POOS80P4OS1.5M800G OSFP to 4x 200G OSFP-RHS(Flat-top) PCC, MCP7Y50-N01AIB NDR30AWG1.5m
POOS80P4OS2M800G OSFP to 4x 200G OSFP-RHS(Flat-top) PCC, MCP7Y50-N002IB NDR26AWG2m
POOS80P4OS2.5M800G OSFP to 4x 200G OSFP-RHS(Flat-top) PCC, MCP7Y50-N02AIB NDR26AWG2.5m
POOS80P4OS3M800G OSFP to 4x 200G OSFP-RHS(Flat-top) PCC, MCP7Y50-N003IB NDR26AWG3m

800Gb/s Twin-port OSFP to 4x200Gb/s QSFP112 Splitter PCC (Passive DAC)

P/NDescriptionData RateAWGLength
POOS80P4QS1M800G OSFP to 4x 200G QSFP112 PCC, MCP7Y40-N001IB NDR30AWG1m
POOS80P2QS1.5M800G OSFP to 4x 200G QSFP112 PCC, MCP7Y40-N01AIB NDR30AWG1.5m
POOS80P4QS2M800G OSFP to 4x 200G QSFP112 PCC, MCP7Y40-N002IB NDR26AWG2m
POOS80P4QS2.5M800G OSFP to 4x 200G QSFP112 PCC, MCP7Y40-N02AIB NDR26AWG2.5m
POOS80P4QS3M800G OSFP to 4x 200G QSFP112 PCC, MCP7Y40-N003IB NDR26AWG3m
