Product Description

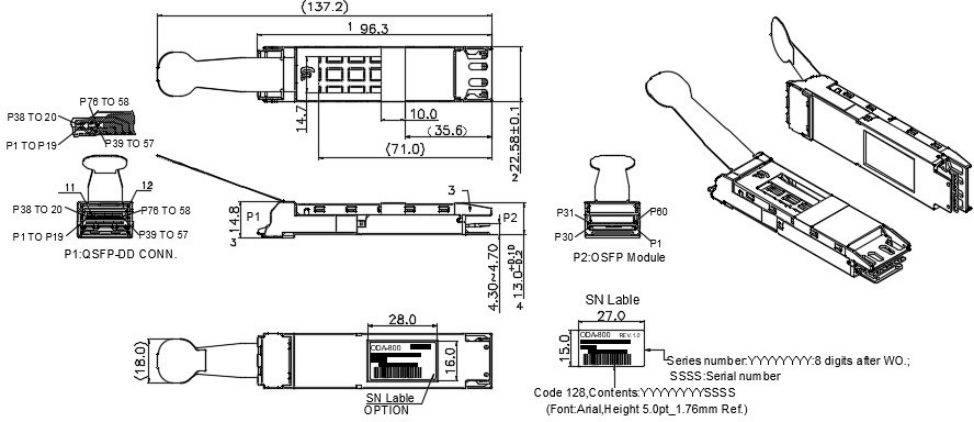

This specification details the performance of the OSFP to QSFP-DD adapter, which enables 800 Gigabit Ethernet connectivity using QSFP-DD technology while also supporting lower-speed connections—400, 200, 100, or 40 Gigabit Ethernet—for OSFP only. This adapter facilitates a smooth and cost-effective migration to 800 Gigabit Ethernet by allowing you to install lower-speed QSFP or enhanced QSFP-DD modules in available OSFP ports when the corresponding network equipment operates at reduced speeds.

Features
• Compliant with IEEE802.3ck (800GBASE-CR8)
• Compliant with IEEE802.3ck (400GBASE-CR4)
• Compliant with IEEE802.3cd (400GBASE-CR8)
• Compliant with IEEE802.3cd (200GBASE-CR4)
• Compliant with IEEE802.3bj (200GBASE-CR8)
• Compliant with IEEE802.3bj (100GBASE-CR4)
• Compliant with IEEE802.3ba (40GBASE-CR4)
• Data rates : 56Gbps/Lane(or 112Gbps/Lane)
• I/O Connector designed for high speed differential signal applications
• Connector Compliant with OSFP Octal Small form factor Pluggable module - OSFP MSA & QSFP-DD MSA Standard
• Low Power Consumption < 0.5W
RoHS compliant
Applications
• Storage, Switch, & RAID Systems
• High-Performance Computing (HPC)
• Network Interface Cards (NIC's)
• Telecommunication equipment
• Data center and enterprise storage systems
