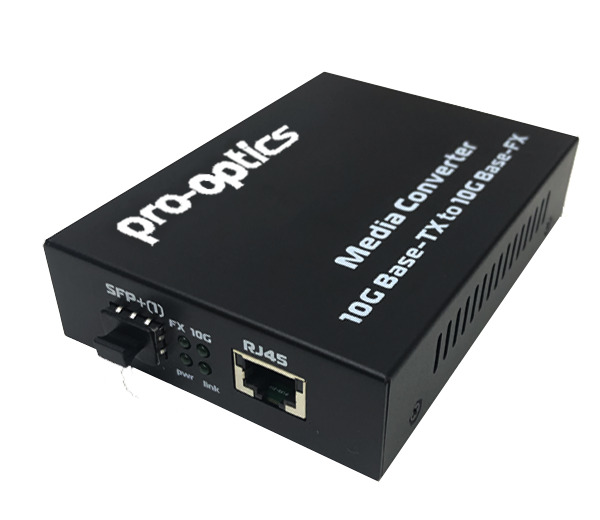

10G Copper to 10GBASE-X SFP+ Media Converter

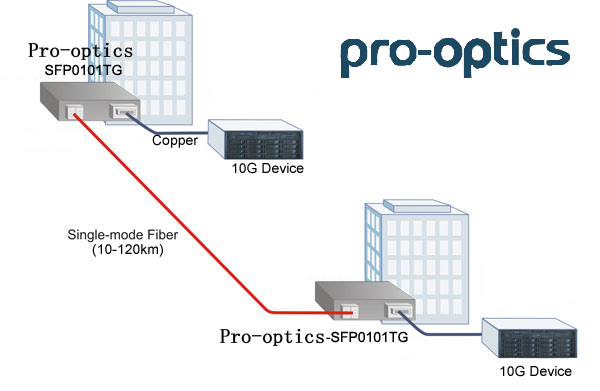

Pro-optics-LINK 10G Media Converter is equipped with one 10G1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.

High Performance 10Gbps Ethernet Capacity

The Pro-optics-SFP0101TG offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric,16K jumbo frame feature and auto negotiation support in its 10 Gigabit port, the Pro-optics-SFP0101TG  can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.

Robust Protection

The Pro-optics-SFP0101TG provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.


Low Power Consumption

The Pro-optics-SFP0101TG adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.75 watts when in full operation.


Easy Chassis Installation

The Pro-optics-SFP0101TG  Media Converter can be used as a stand-alone unit or as a slide-in module to the Pro-optics-LINK  Media Converter Chassis (Pro-optics-MC-R16 chassis series). The media chassis can assist in providing DC power to the Pro-optics-SFP0101TG  Media Converter to maintain the fiber-optic network at one centralized location.

Physical Port

  • One 10G/1000BASE-T RJ45 interface with auto MDI/MDI-X function

  • One 10GBASE-X SFP+ slot interface


Layer 2 Features

  • IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant

  • Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

  • 16K jumbo frame size support

  • Automatic address learning and address aging


Case and Installation

  • External 5V DC, 2A power supply

  • DIN-rail and wall-mount design

  • Supports 6000 VDC Ethernet ESD protection

  • 100 meters over Cat 6A / Cat7 at 10Gbps

  • 0 to 50 degrees C operating temperature

  • Co-works with Pro-optics-LINK’s 19” Media Converter Chassis(Pro-optics-MC-R16)

  • Plug and Play installation

Hardware Specifications
Copper Interface1 x 10G/1000BASE-T RJ45
Auto-MDI/MDI-X, auto-negotiation
Fiber Optic Interface1 x 10GBASE-X R SFP+ interface
 PWR (Green)
10G/1G RJ45 Interfaces:
 1G/10G LNK (Green)
Switch Processing SchemeStore and Forward
ESD Protection6KV DC
EnclosureCompact-sized metal case
InstallationDesktop, wall mountable
Media convert Chassis installation
Dimensions (WxDxH)140 x 100 x 32mm
Weight360g (device only)
Power Requirements5V DC, 2A max.
Power Consumption3.75 watts / 12.8 BTU per hour max.
Converter Specifications
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Address Table9K entries, automatic source address learning and aging
Jumbo Frame16K
Network Cables10G/5G/2.5G/1G/100M BASE-T:
 10G--Cat 6A/Cat 7
 5G--Cat 6/Cat 6A/Cat 7
 1G/2.5G--Cat 5e/Cat 6/Cat 6A/ Cat 7
 100M--Cat 5/Cat 5e/Cat 6/Cat 6A/ Cat 7
 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)
 EIA/TIA-568 100-ohm STP (100 meters, max.)
 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m
 9/125μm single-mode fiber optic cable, up to 60km
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Operating environment0 ~ 50 degrees C
Storage environment-10 ~ 70 degrees C
Operating Humidity5 ~ 95%, relative humidity (non-condensing)
Storage Humidity5 ~ 95%, relative humidity (non-condensing)
Standards ComplianceIEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10Gbps Ethernet
IEEE 802.3x full-duplex flow control
