100G QSFP28 Optical Transceivers

BiDi LR1/ER1, DR1, FR1, LR1, ER1, DWDM, SR1.2, SWDM4, SR4, PSM4, CWDM4, CLR4, 4WDM-10, LR4, 4WDM-40, ER4 Lite, ER4, ZR4

Home>Products>Optical Transceivers>20G/40G/50G/100G

100G QSFP28

Pro-optics provides data center, 5G and metro telecommunication networks with a series of 100G QSFP28 pluggable optical transceiver modules based on 25G/28G NRZ or 50G/100G PAM4 technologies. These modules can cover the interconnection links within 70m to 300m over multimode fiber (MMF) or 500m to 80km over single-mode fiber (SMF).

Features

  • Hot-pluggable QSFP28 form factor transceiver modules

  • Compliant with QSFP28 MSA, IEEE 802.3, InfiniBand EDR and OTN OTU4 specifications

  • 4x 25G NRZ electrical interface

  • Single 100G PAM4 or 2x 50G PAM4 or 4x 25G/28G NRZ optical interface

  • Data rate up to 103.125Gbps, 106.25GBps or 112Gbps

  • 850nm VCSEL or 1310nm/CWDM/LAN-WDM/DWDM DFB (DML or EML) transmitters and PIN or APD receivers

  • Reach up to 70m/100m/200m/300m over MMF or 500m/2km/10km/20km/40km/80km over SMF

  • Simplex LC or Duplex LC or dual CS or single MPO receptacle

  • Low power consumption

  • Built-in digital diagnostic functions

  • Case operating temperature range: 0°C to 70°C or -40°C to +85°C

  • 3.3V power supply voltage

  • RoHS compliant (lead free)

Applications

  • Data Center

  • Storage Area Network

  • High-Performance Computing

  • 5G Fronthaul

  • 5G Mid/Backhaul

  • Metro Telecommunication

Ordering Information

100G QSFP28 BiDi Series

P/NDescriptionData RateWavelengthDistanceConnectorTemp.
POQP1101-xx100G QSFP28 SR1.22x50G, 100GbE/HDR100850nm/910nm70m (OM3)
100m (OM4)
150m (OM5)		Duplex LCC

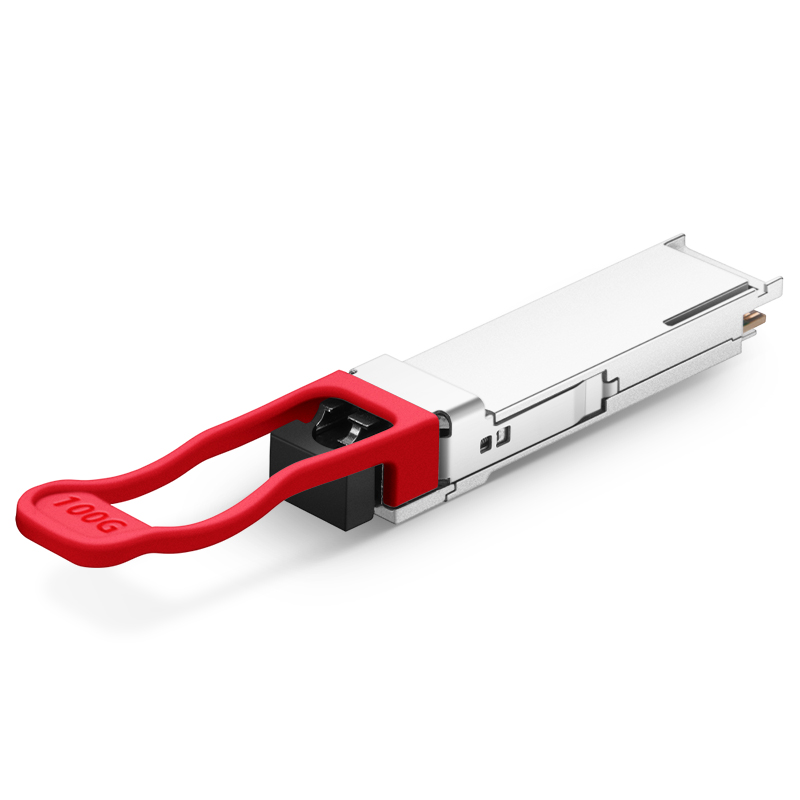

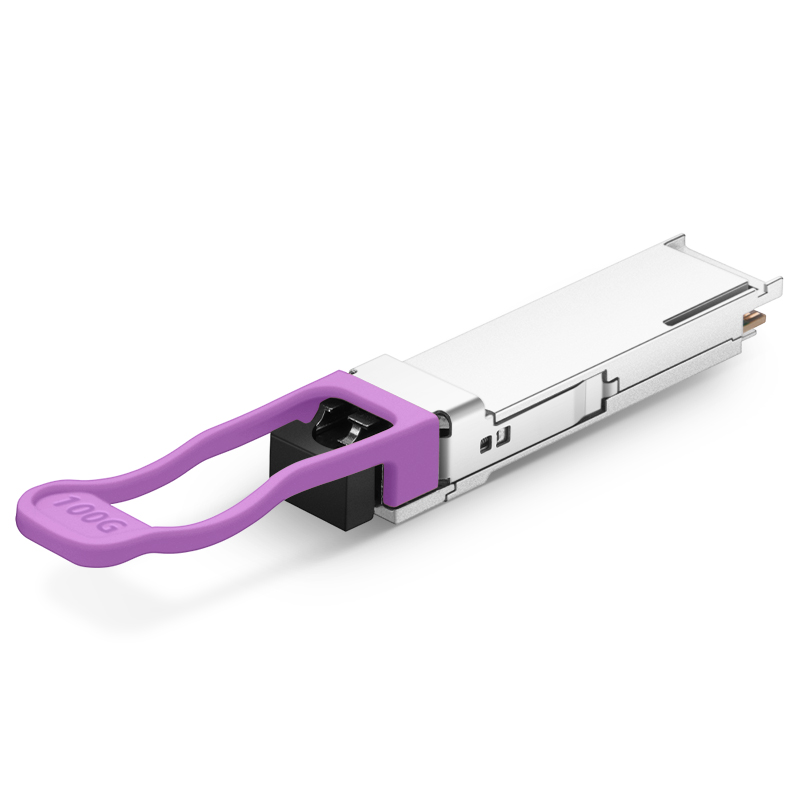

POQP1110-23100G QSFP28 BR10-U100GbE1271nm/1331nm10kmSimplex LCC
POQP1110-32100G QSFP28 BR10-D100GbE1331nm/1271nm10kmSimplex LCC
POQP1120-xx100G QSFP28 BR20-U100GbE1291nm/1311nm20kmSimplex LCC
POQP1120-xx100G QSFP28 BR20-D100GbE1311nm/1291nm20kmSimplex LCC
POQP1140-xx100G QSFP28 BR40-U100GbE1304.58nm/1309.14nm40kmSimplex LCC
POQP1140-xx100G QSFP28 BR40-D100GbE1309.14nm/1304.58nm40kmSimplex LCC

100G QSFP28 Single Lambda CWDM Series

P/NDescriptionData RateWavelengthDistanceConnectorTemp.
POQP1102-Cxx100G QSFP28 CWDM FR1100GbE1271-1331nm (4λ)2kmDuplex LCC
POQP1110-Cxx100G QSFP28 CWDM LR1100GbE1271-1331nm (4λ)10kmDuplex LCC

100G QSFP28 DWDM Series

P/NDescriptionData RateWavelengthDistanceConnectorTemp.
POQP1025-Dxx100G QSFP28 DWDM
O-band 200GHz		100GbE1295.56-1312.58nm
(16λ)		25kmDuplex LCC
POQP101A-Dxx100G QSFP28 DWDM
C-band 100GHz		100GbEC21-C60
(40λ)		100kmDuplex LCC

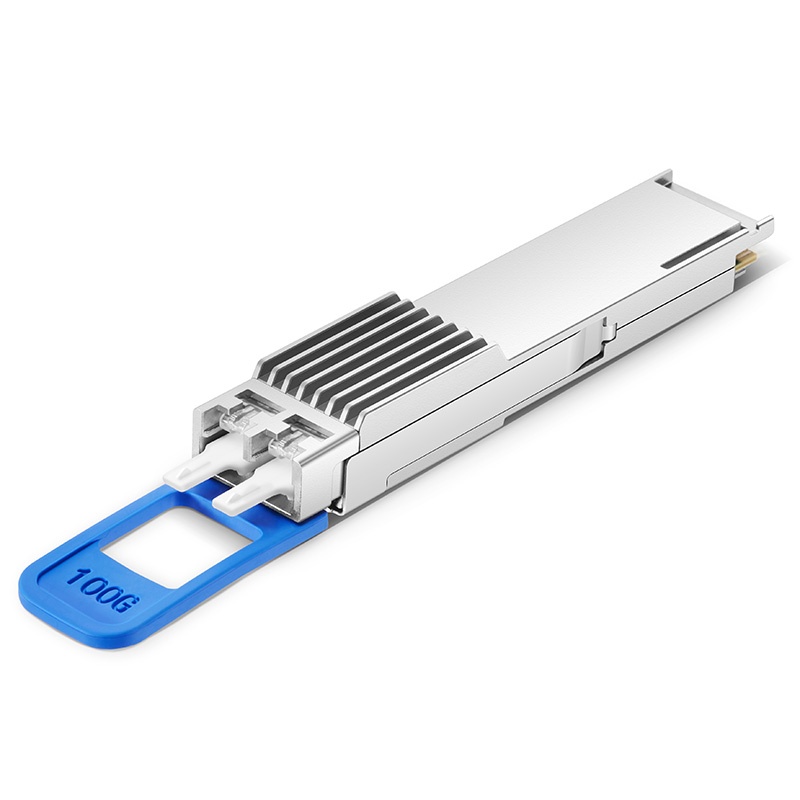

POQP1080-Dxx-(x)100G QSFP28 DWDM
C-band 100GHz		2x50G, 100GbEC13-C60 (48λ)80km
(w/ DCM & EDFA)		Dual CSC

100G QSFP28 Single Lambda Series

P/NDescriptionData RateWavelengthDistanceConnectorTemp.
POQP1101-85100G QSFP28 SR1100GbE850nm60m (OM3)
100m (OM4)		Duplex LCC
POQP1105-13100G QSFP28 DR1100GbE1310nm500mDuplex LCC
POQP1102-13100G QSFP28 FR1100GbE1310nm2kmDuplex LCC
POQP1110-13100G QSFP28 LR1-10100GbE1310nm10kmDuplex LCC
POQP1120-13100G QSFP28 LR1-20100GbE1310nm20kmDuplex LCC
POQP1130-13100G QSFP28 ER1-30100GbE1310nm30kmDuplex LCC
POQP1140-13100G QSFP28 ER1-40100GbE1310nm40kmDuplex LCC

100G QSFP28 with 2x 50G PAM4 Optical Interface

P/NDescriptionData RateWavelengthDistanceConnectorTemp.
POQP1101-xx100G QSFP28 SR22x50G, 100GbE/HDR100850nm70m (OM3)
100m (OM4)		MPO-12C

100G QSFP28 with 4x 25G/28G NRZ Optical Interface

P/NDescriptionData RateWavelengthDistanceConnectorTemp.

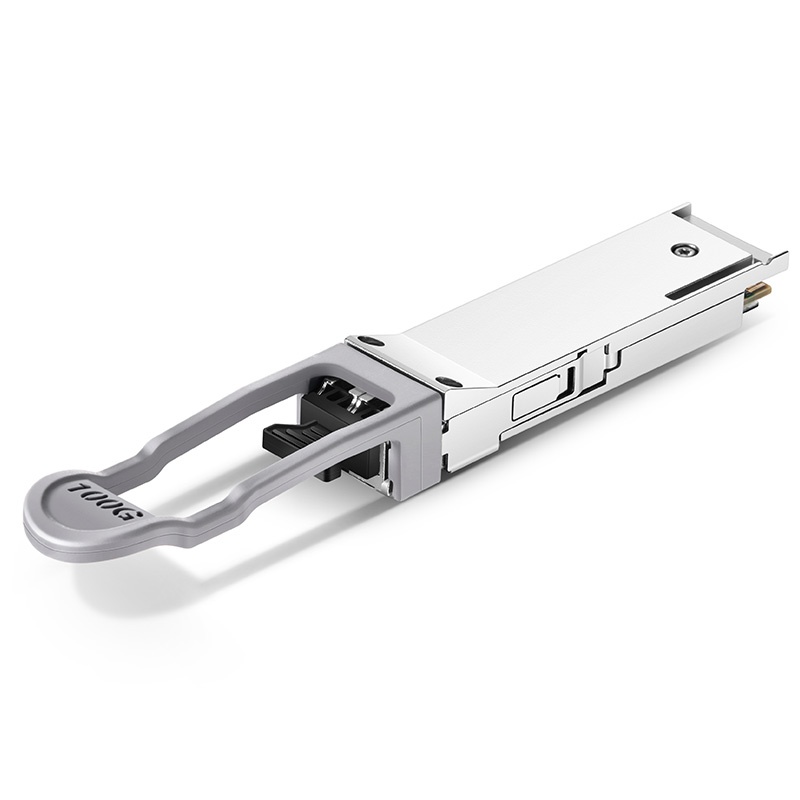

POQP1101-xx100G QSFP28 SWDM44x25G, 100GbE/EDR850nm70m (OM3)
100m (OM4)
150m (OM5)		Duplex LCC

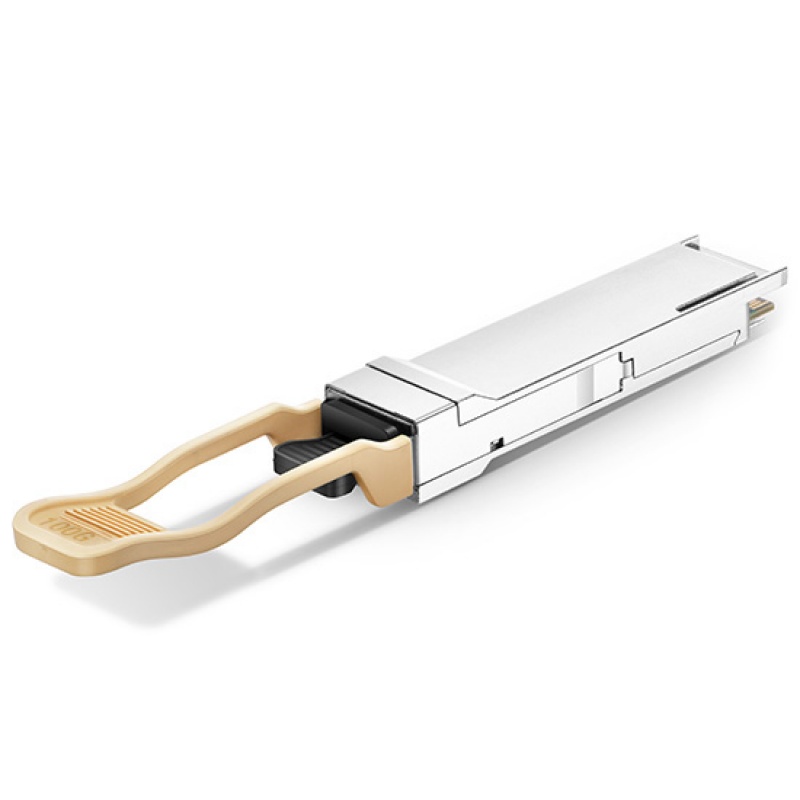

POQP1101-85100G QSFP28 SR44x25G, 100GbE/EDR
4x28G, 128GFC/OTU4		850nm70m (OM3)
100m (OM4)		MPO-12C
POQP1101I-85100G QSFP28 SR44x25G, 100GbE/EDR
4x28G, 128GFC/OTU4		850nm70m (OM3)
100m (OM4)		MPO-12I
POQP1103-85100G QSFP28 ESR44x25G, 100GbE/EDR
4x28G, 128GFC/OTU4		850nm200m (OM3)
300m (OM4)		MPO-12C
POQP1103I-85100G QSFP28 ESR44x25G, 100GbE/EDR
4x28G, 128GFC/OTU4		850nm200m (OM3)
300m (OM4)		MPO-12I

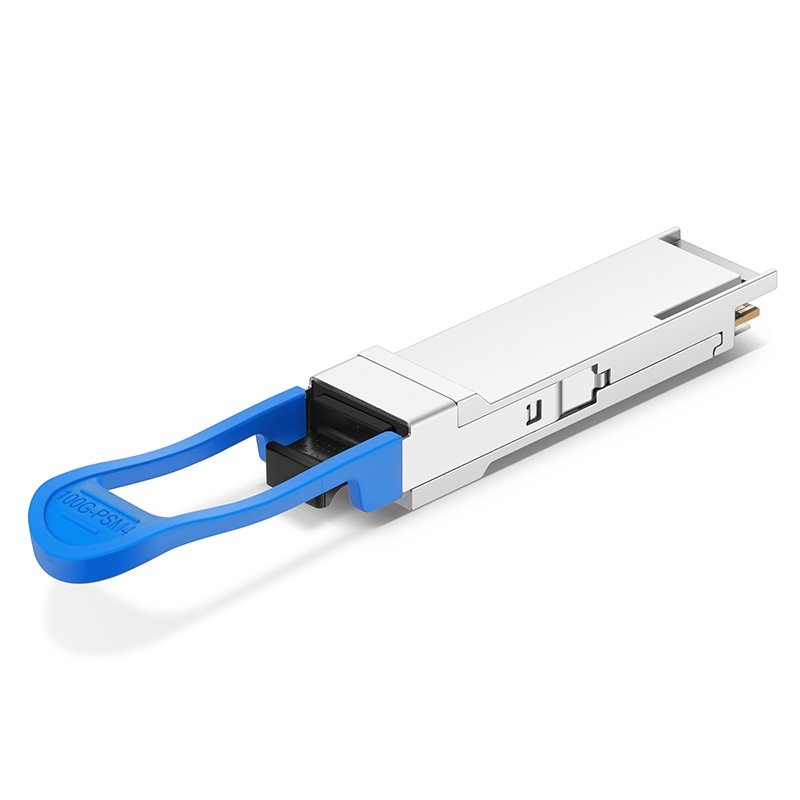

POQP1105-13100G QSFP28 PSM44x25G, 100GbE/EDR1310nm500mMPO-12C
POQP1105I-13100G QSFP28 PSM44x25G, 100GbE/EDR1310nm500mMPO-12I
POQP1102-13100G QSFP28 PSM44x25G, 100GbE/EDR1310nm2kmMPO-12C
POQP1102I-13100G QSFP28 PSM44x25G, 100GbE/EDR1310nm2kmMPO-12I
POQP1110-13100G QSFP28 PSM44x25G, 100GbE/EDR1310nm10kmMPO-12C
POQP1110I-13100G QSFP28 PSM44x25G, 100GbE/EDR1310nm10kmMPO-12I
POQP1102-xx100G QSFP28 CWDM44x25G, 100GbE/EDRCWDM2kmDuplex LCC
POQP1102I-xx100G QSFP28 CWDM44x25G, 100GbE/EDRCWDM2kmDuplex LCI
POQP1110-xx100G QSFP28 CWDM44x25G, 100GbE/EDRCWDM10kmDuplex LCC
POQP1110I-xx100G QSFP28 CWDM44x25G, 100GbE/EDRCWDM10kmDuplex LCI
POQP1102-xx100G QSFP28 CLR44x25G, 100GbE/EDRCWDM2km w/o FECDuplex LCC
POQP1102I-xx100G QSFP28 CLR44x25G, 100GbE/EDRCWDM2km w/o FECDuplex LCI
POQP1110-xx100G QSFP28 CLR44x25G, 100GbE/EDRCWDM10km w/o FECDuplex LCC
POQP1110I-xx100G QSFP28 CLR44x25G, 100GbE/EDRCWDM10km w/o FECDuplex LCI
POQP1110-xx100G QSFP28 4WDM-104x25G, 100GbE/EDRCWDM10kmDuplex LCC
POQP1110I-xx100G QSFP28 4WDM-104x25G, 100GbE/EDRCWDM10kmDuplex LCI
POQP1110-xx100G QSFP28 LR44x25G, 100GbE/EDR
4x28G, OTU4		LAN-WDM10kmDuplex LCC
POQP1110I-xx100G QSFP28 LR44x25G, 100GbE/EDR
4x28G, OTU4		LAN-WDM10kmDuplex LCI
POQP1120-xx100G QSFP28 LR4/4WDM-204x25G, 100GbE
4x28G, OTU4		LAN-WDM20kmDuplex LCC
POQP1120I-xx100G QSFP28 4WDM-204x25G, 100GbELAN-WDM20kmDuplex LCI
POQP1140-xx100G QSFP28 4WDM-404x25G, 100GbELAN-WDM30km w/o FEC
40km w/ FEC		Duplex LCC
POQP1140I-xx100G QSFP28 4WDM-404x25G, 100GbELAN-WDM30km w/o FEC
40km w/ FEC		Duplex LCI
POQP1140-xx100G QSFP28 ER4 Lite4x25G, 100GbE
4x28G, OTU4		LAN-WDM30km w/o FEC
40km w/ FEC		Duplex LCC
POQP1140-xx100G QSFP28 ER44x25G, 100GbE
4x28G, OTU4		LAN-WDM40km w/o FECDuplex LCC
POQP1180-xx100G QSFP28 ZR44x25G, 100GbE
4x28G, OTU4		LAN-WDM80kmDuplex LCC
