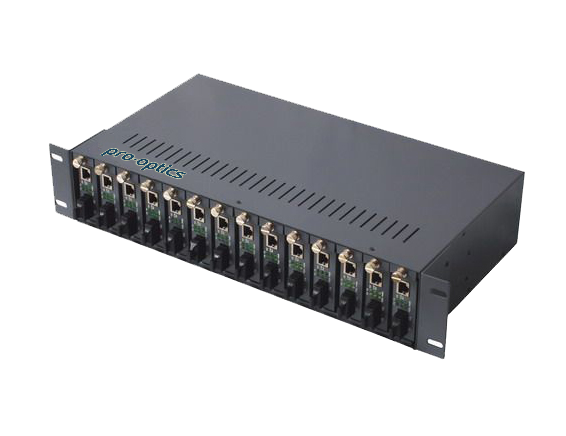

Providing more capacity to the converters in one chassis, Pro-optics-LINK Pro-optics-MC-R16 provides 16 slots in the 19" rack, saving more spaces for fiber-optic wiring yet easing the maintenance of media conversion. The Pro-optics-MC-R16 media chassis allows the connectivity of up to 16 Pro-optics-LINK Ethernet/ Fast Ethernet Gigabit Ethernet Converters in one chassis. with LED indicators are designed for cooling the system and keeping you informed about the status of the system . The independent power supply in each bay of the Pro-optics-MC-R16 can let you freely install the converters without interrupting the rest of the networks. Moreover, each bay of the media center can be deployed like Pro-optics-LINK's converter family-like Ethernet, Fast Ethernet twisted pair to fiber-optic conversion, Gigabit SX to LX conversion, etc.

• High quality 19" Rack-mountable Chassis installation
• Supports up to 16 card type  media converters
• LED indicators for system and fan status
• Bay power isolation to ensure each bay is electrically isolated from each other
• Supports multiple converters - 10/100/1000Mbps, copper, fiber, single/multi-mode ST/SC/MTRJ connectors
• Reduces the effort of converter maintenance and management, diagnose the status at one time
• Cost-effective, easy to install

Slot16 open slots; 22 x 95x 50 mm (W x D x H)
Dimensions (W x H x D)440 mm x 88 mm x 180 mm, 2.0 U height
Power Requirement100-240V AC, 1.8A, 50/60Hz
Power Output+5V DC per slot, 1A minimum
DC Output+5V DC (+/-1%) per slot
LED IndicatorsPower1, Power2 (On: operating; Off: device or fan fail)
EnvironmentTemperature: 0~50 degrees C (operating); -20~70 degrees C (storage) Humidity: 0~90% (non-condensing)
ComplianceFCC Class A, CE-mark
