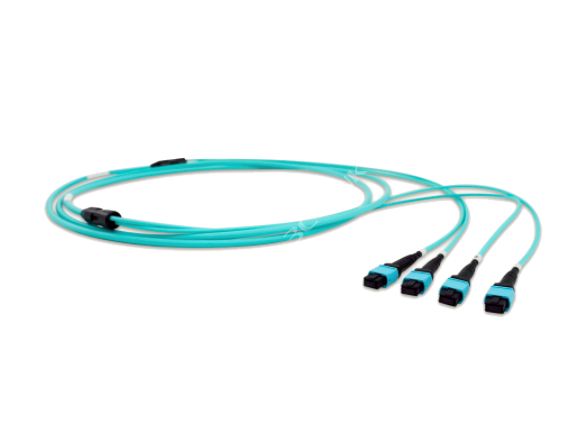

MPO/MTP Trunk Cables

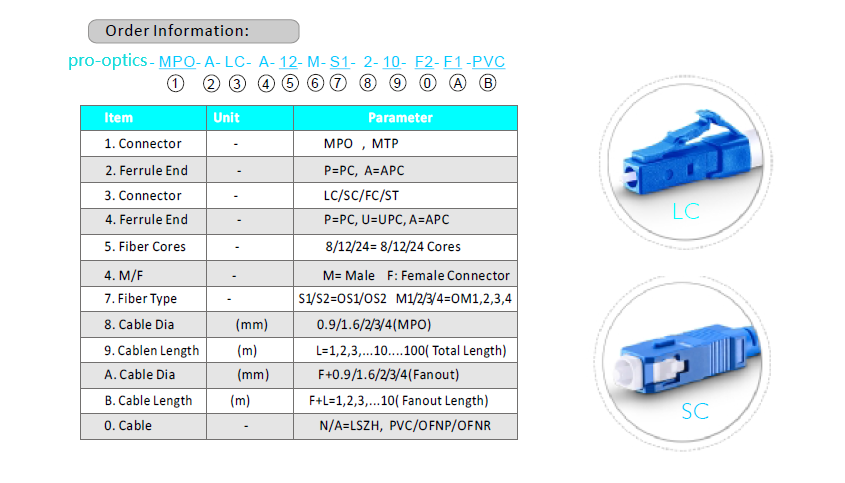

Complied Standards

• Comply with TIA/EIA 604-5, IEC 61754 series, Telcodia GR-1435-CORE Issue 2，Telcodia GR-326-CORE Issue 4 standards.

  Fire resistance comply with low smoking (IEC 61304), halogen free (IEC 60754-1), flame retardant (IEC 60332- pro-optics), and corrosion proof (IEC 60754-2)

•


• Mechanical Performance

• Fibre Count	Bending Radius（mm）		Temperature(℃）			Package
  	Static	Dynamic	Operation	Installation	Storage
  2	10D	20D	-20 to +60	-5 to +50	-25 to +70	PE bag for L＜50m， Reel packaging for L≥50m
  4	10D	20D	-20 to +60	-5 to +50	-25 to +70
  6	10D	20D	-20 to +60	-5 to +50	-25 to +70
  8	10D	20D	-20 to +60	-5 to +50	-25 to +70
  12	10D	20D	-20 to +60	-5 to +50	-25 to +70
  24	10D	20D	-20 to +60	-5 to +50	-25 to +70

• Fiber Height

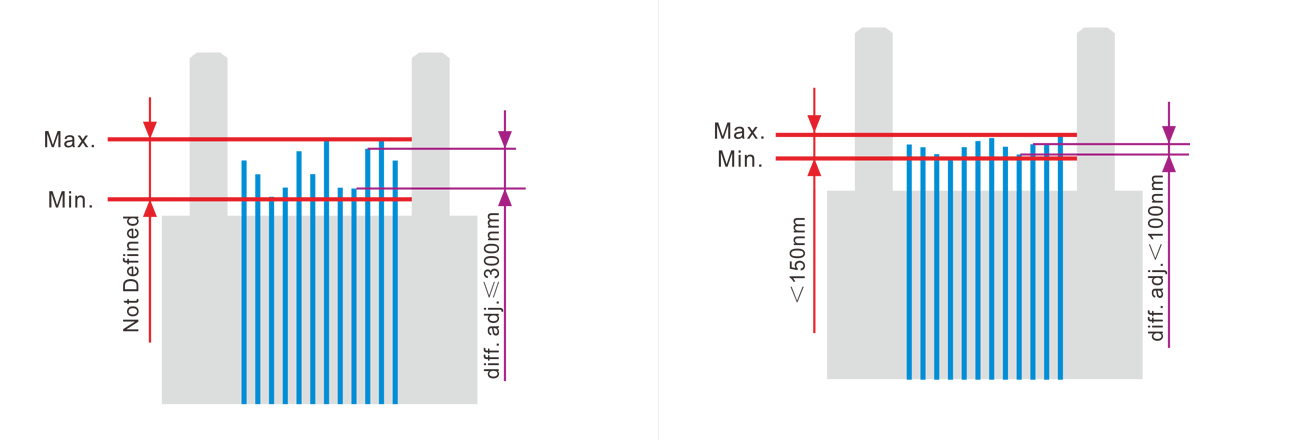

• Fiber Height is a critical factor for connection performance, it needs to be controlled within a certain range. and the distance between the shortest and longest fiber as well as the variation in adjacent Fiber Heights have to be minimized to ensure good coplanarity of all fibers. pro-optics-LINK has set much tighter tolerances on Fiber Height than IEC to have the most consistent Fiber Heights for a prefect connection.

•

• Connector Performance

• Connector Type	IL(dB)	500times Durability ΔIL(dB)	Temperature Cycling ΔIL(dB)
  MPO/MTP MM Elite	≤0.35	≤0.20	≤0.20
  MPO/MTP SM Elite	≤0.35	≤0.20	≤0.20
  MPO/MTP MM standard	≤0.70	≤0.20	≤0.20
  MPO/MTP SM standard	≤0.70	≤0.20	≤0.20
  LC MM connector	≤0.30	≤0.20	≤0.20
  LC SM connector	≤0.30	≤0.20	≤0.20

• Cable Performance

• Fibre Type	Core/Cladding Dia.（µm）	Bandwidth (MHz·km)	Wavelength（nm）	Max. Attenuation（dB/km）
  G652D	9/125	NA	1310/1550	0.36/0.22
  G657A2	9/125	NA	1310/1550	0.36/0.22
  OM1	62.5/125	200	850/1300	3.0/1.0
  OM2	50/125	500	850/1300	3.0/1.0
  OM3	50/125	2000	850/1300	3.0/1.0
  OM4	50/125	4700	850/1300	3.0/1.0

*  Asynchronous Transmission Mode(ATM)
  *  Gigabit Ethernet
  *  Active Deviced/Transceiver Interface
  *  CATV, Video and Multimedia
  *  Premise Installations
  *  Telecommunication Networks
  *  Parallel optical interconnect between PC Cards and patch panels
  *  Interconnection for O/E modules
  *  Industrial & Military
  *  Optical Switch inter frame connections
