SC-SC Patch Cables

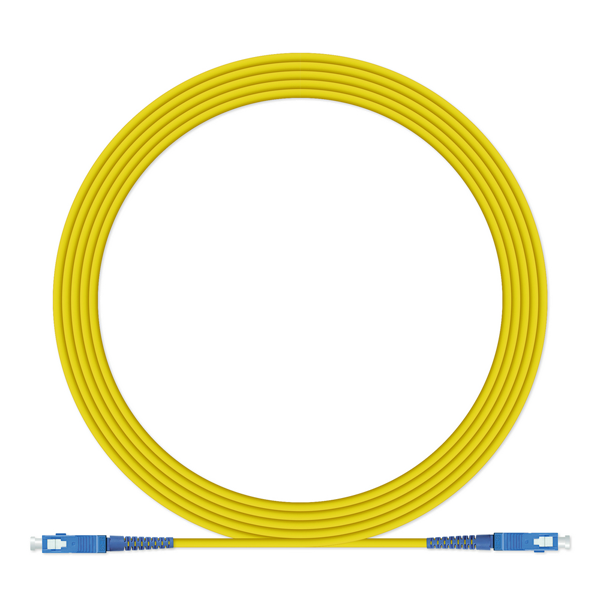

SC to SC 9/125μm OS2 Singlemode Duplex Fiber Patch Cable (SC-SC, 2.0mm, UPC, OFNR, Yellow) Fiber Optic Patch Cable also is known as fiber patch cord, optical cable, or fiber optic jumper. As an important component commonly used in fiber-optic networks, high-quality fiber patch cables are essential for any high-performance fiber-optic network. 3c-link offers an extensive line of SC to SC 9/125µm OS2 single-mode duplex fiber optic patch cables with many choices of different lengths, jacket material, polish, and cable diameter. Those SC to SC 9/125µm single-mode OS2 fiber patch cables support long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which provides an ideal fiber cabling solution with an extremely competitive price for users in data communication and telecommunication networks.

Features

• Low insertion loss
• High back reflection loss
• Stable capability and high reliability

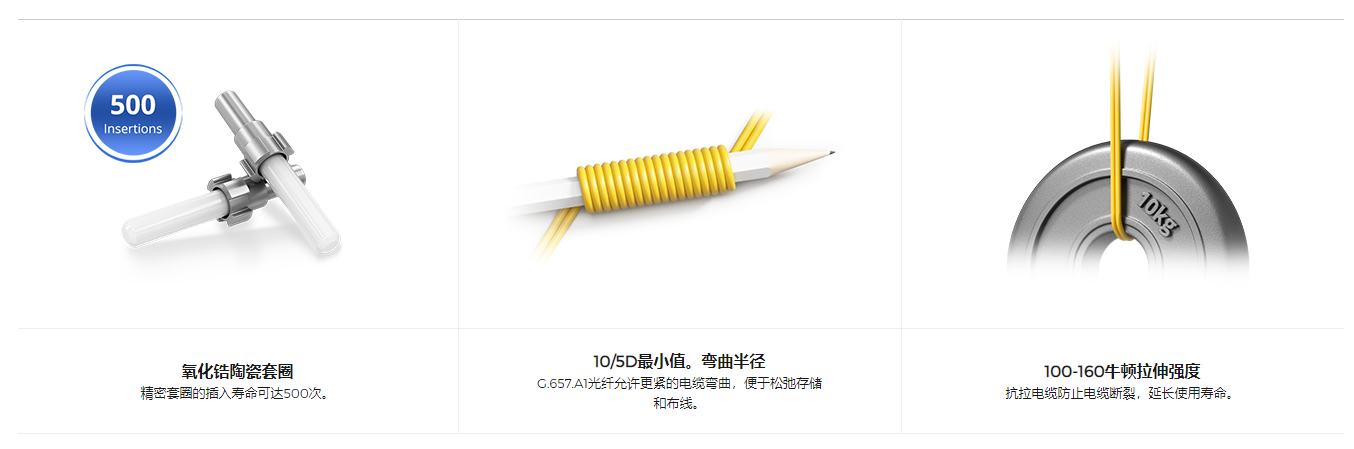

• Excellent mechanical capability
• PVC jacket as default
• Ideal solution for high-speed data transmission

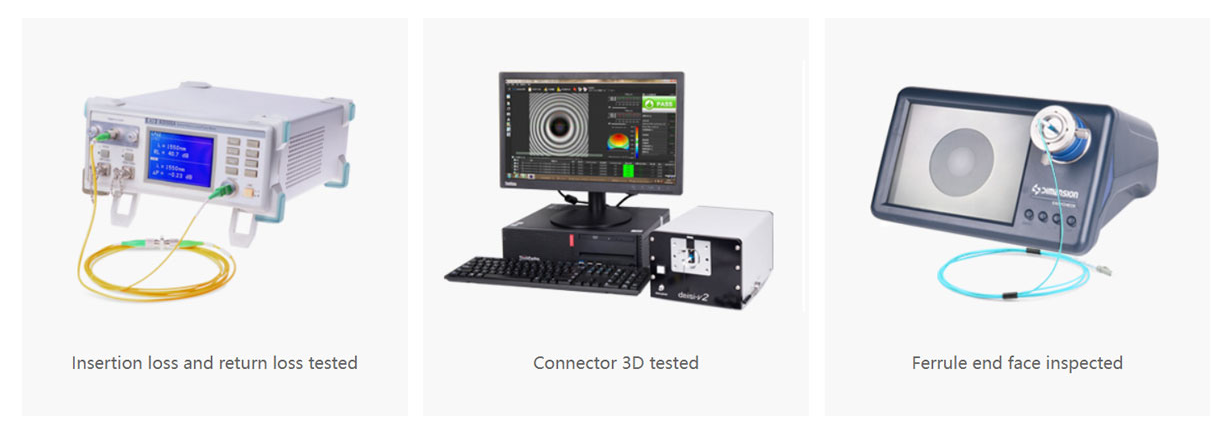

• 100% inspected for optical characteristics before shipment


Specification

  Fiber Type9/125µm Singlemode OS2Fiber CountDuplex (2-fiber)
  Connector TypeSC to SCPolishUPC to UPC
  Cable Length 1m,2m,3m … 50m or CustomizeCable Diameter2.0 mm
  Tensile Strength70 NLength Tolerance+/- 1cm
  Insertion Loss≤0.2dBReturn Loss≥50dB
  Repeatability≤0.2dBInterchangeability≤0.2dB
  Jacket MaterialPVC (OFNR riser-rated)Jacket ColorYellow
  EnvironmentOperating: -20°C to 70°C
Storage: -40°C to 85°C		ComplianceTelcordia GR-326-CORE
RoHS compliant
  ApplicationOptical fiber communications system
Optical fiber access networks
Optical fiber CATV
Optical fiber test equipment
Optical fiber data communication		 ApplicationPremises Distribution
Local Area Networks (LAN)
Fiber-to-the-Home (FTTX)
Device Terminations
