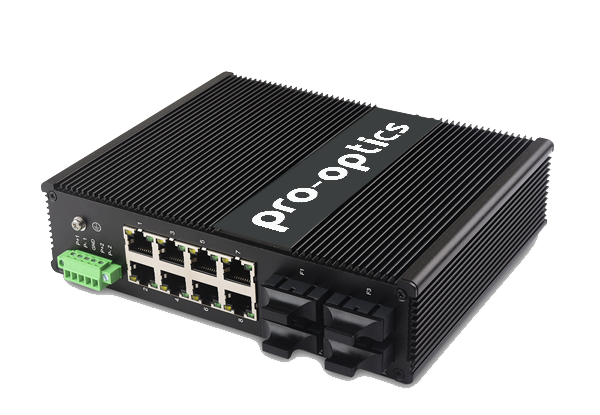

8-TX + 4-FX 10/100/1000M IES

Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the Pro-optics-SFP0408G’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.
Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) for enterprises becomes so easy to users when long-distance deployment is employed. The Pro-optics-SFP0408G can handle extremely large amounts of data in a secure topology linking to a metro switch, backbone or high-capacity server.


Small but Tough

The Pro-optics-SFP0408G is specifically designed with durable components and strong housing to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the Pro-optics-SFP0408G is ideal for service providers, campuses and public areas to deploy outdoor wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.


Dual Power Input for High Availability Network System

The Pro-optics-SFP0408G features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the Pro-optics-SFP0408G via power supply 2 alternatively without any loss of operation.


Low Power Consumption for Green Networking

The Pro-optics-SFP0408G, adopting the advanced green networking technology, provides cable length power saving, and link-up and link-down power saving. These features make the Pro-optics-SFP0408G consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the Pro-optics-SFP0204G can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.


Robust Protection

The Pro-optics-SFP0408G provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



With POE Funcation
