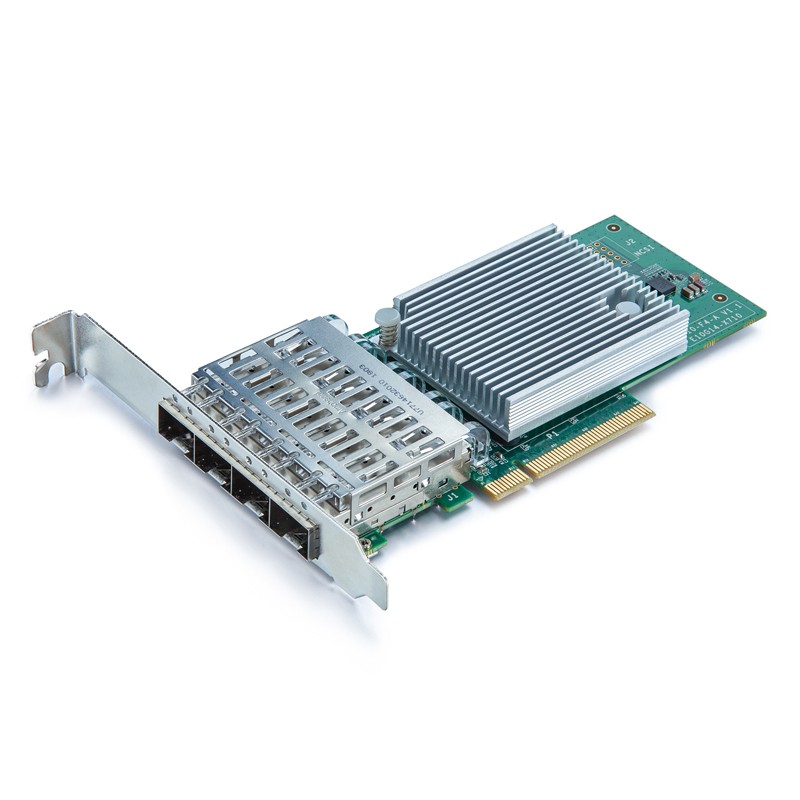

4X 10G Intel X710-T4

Quad-port 10 GbE adapters

4x SFP+ Ports

PCI Express* (PCIe) 3.0, x8

Intel® XL710-AM1 Gigabit Ethernet Controller

Exceptional Low Power Adapters

Network Virtualization offloads including Geneve, VXLAN, and NVGRE

Ethernet Flow Director for hardware-based application traffic steering

Data Plane Developer Kit (DPDK) optimized for efficient packet processing

Excellent small packet performance

Intel XL710 Based

Adapter fault tolerance (AFT)

Switch fault tolerance (SFT)

Adaptive load balancing (ALB)

Teaming support

IEEE 802.3ad (link aggregation control protocol)

PCIe Hot Plug*/Active Periphera component interconnect (PCI)

IEEE 802.1Q* VLANs

IEEE 802.3 2005* flow control support

Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol(UDP), Internet protocol (IP))

IEEE 802.1p*

TCP segmentation large send offload

MSI-X supports Multiple Independent Queues

Interrupt moderation

IPv6 offloading — Checksum and segmentation capability

Controller-processor: Intel® Ethernet Controller XL710-AM2

Network Standards: IEEE 802.3

Physical Layer Interface: • 4x10GBASE-SR4  • 4x10GBASE-LR4

Operating temperature: 0 °C to 55 °C (32 °F to 131 °F)

Air Flow: Minimum of 150 LFM required

Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)

Storage humidity: Maximum: 90% non-condensing relative humidity at 35 °C

LED Indicators: LINK (solid) and ACTIVITY (blinking)

LINK SPEED (green=10 Gbps; yellow=1Gbps)

Data rate supported per port:  • Optical: 10 GbE   • Direct Attach: 10 GbE

Bus type: PCI Express 3.0 (8 GT/s)

Bus width: 4-lane PCI Express* and 8-lane PCI Express

Interrupt levels: INTA, MSI, MSI-X

Windows Server 2012 R2*

Windows Server 2012 R2 Core

Windows Server 2012

Windows Server 2012 Core

Windows Server 2008 R2*

Windows Server 2008 R2 Core

Linux* Stable Kernel version 2.6.32/3x

Linux RHEL 6.5 and RHEL 7.0

Linux SLES 11 SP3 and SLES 12

FreeBSD* 9 and FreeBSD* 10

UEFI* 2.1

UEFI* 2.3

VMware ESXi 5.11 (Limited Functionality)

VMware ESXi 5.51
