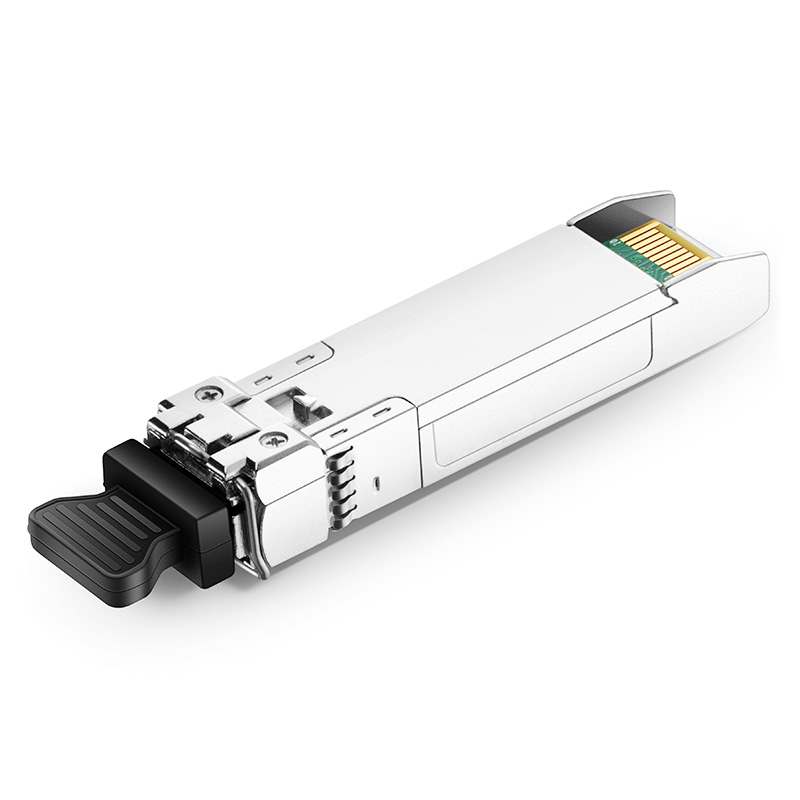

16GFC SFP+

Pro-optics provides data center and storage area networks with a series of 16GFC SFP+ pluggable optical transceiver modules. These modules can cover the 16G Fibre Channel interconnection links within 100m/125m over multimode fiber (MMF) or 10km over single-mode fiber (SMF).

Features

  • Hot-pluggable SFP+ form factor transceiver modules

  • Compliant with SFP+ MSA and 16G Fibre Channel specifications

  • Data rate up to 14.025Gbps

  • 850nm VCSEL or 1310nm DML transmitter and PIN receiver

  • Reach up to 100m/125m over MMF or 10km over SMF

  • Duplex LC receptacle

  • Low power consumption

  • Built-in digital diagnostic functions

  • Case operating temperature range: 0°C to 70°C

  • 3.3V power supply voltage

  • RoHS compliant (lead free)

Applications

  • Data Center

  • Storage Area Network

Ordering Information

P/NDescriptionData RateWavelengthDistanceConnectorTemp.
POSP1601-8516GFC SFP+ SW16GFC850nm100m (OM3)
125m (OM4)
Duplex LCC
POSP1610-1316GFC SFP+ LW16GFC1310nm10kmDuplex LCC
