Features

Hot-pluggable CFP/CFP2/CFP4 form factor transceiver modules
Compliant with CFP MSA, IEEE 802.3 and OTN OTU4 specifications
10x 10G or 4x 25G NRZ electrical interface
10x 10G or 4x 25G NRZ optical interface
Data rate up to 103.125Gbps or 112Gbps
850nm VCSEL or 1310nm/LAN-WDM DFB (DML or EML) transmitters and PIN or APD receivers
Reach up to 100m/150m/300m/400m over MMF or 10km/40km/80km over SMF
Duplex LC or single MPO receptacle
Low power consumption
Built-in digital diagnostic functions
Case operating temperature range: 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

Metro Telecommunication

Ordering Information

100G CFP4 Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POC41101-85	100G CFP4 SR4	4x25G, 100GbE 4x28G, 128GFC/OTU4	850nm	70m (OM3) 100m (OM4)	MPO-12	C
POC41110-xx	100G CFP4 LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	10km	Duplex LC	C
POC41120-xx	100G CFP4 LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	20km	Duplex LC	C
POC41140-xx	100G CFP4 ER4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	40km	Duplex LC	C

100G CFP2 Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POC21101-85	100G CFP2 SR10	10x10G, 100GbE 10x11G, OTU4	850nm	100m (OM3) 150m (OM4)	MPO-24	C
POC21104-85	100G CFP2 SR10	10x10G, 100GbE 10x11G, OTU4	850nm	300m (OM3) 400m (OM4)	MPO-24	C
POC21110-xx	100G CFP2 LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	10km	Duplex LC	C
POC21120-xx	100G CFP2 LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	20km	Duplex LC	C
POC21140-xx	100G CFP2 ER4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	40km	Duplex LC	C

100G CFP Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POCP1101-85	100G CFP SR10	10x10G, 100GbE 10x11G, OTU4	850nm	100m (OM3) 150m (OM4)	MPO-24	C
POCP1104-85	100G CFP SR10	10x10G, 100GbE 10x11G, OTU4	850nm	300m (OM3) 400m (OM4)	MPO-24	C

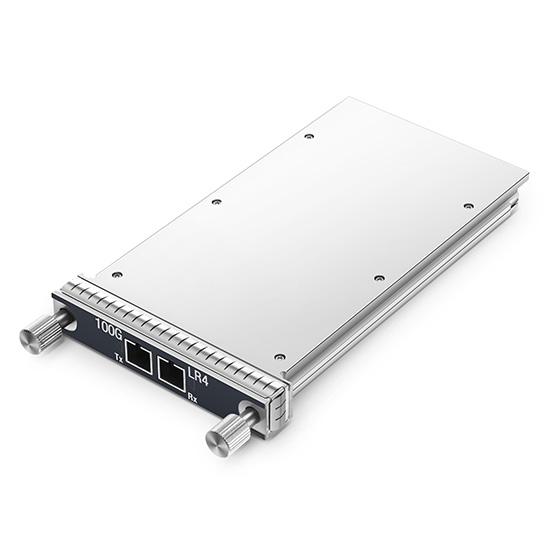

POCP1110-xx	100G CFP LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	10km	Duplex LC	C
POCP1120-xx	100G CFP LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	20km	Duplex LC	C
POCP1140-xx	100G CFP ER4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	40km	Duplex LC	C

Metro Telecommunication

100G CFP4 Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POC41101-85	100G CFP4 SR4	4x25G, 100GbE 4x28G, 128GFC/OTU4	850nm	70m (OM3) 100m (OM4)	MPO-12	C
POC41110-xx	100G CFP4 LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	10km	Duplex LC	C
POC41120-xx	100G CFP4 LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	20km	Duplex LC	C
POC41140-xx	100G CFP4 ER4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	40km	Duplex LC	C

100G CFP2 Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POC21101-85	100G CFP2 SR10	10x10G, 100GbE 10x11G, OTU4	850nm	100m (OM3) 150m (OM4)	MPO-24	C
POC21104-85	100G CFP2 SR10	10x10G, 100GbE 10x11G, OTU4	850nm	300m (OM3) 400m (OM4)	MPO-24	C
POC21110-xx	100G CFP2 LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	10km	Duplex LC	C
POC21120-xx	100G CFP2 LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	20km	Duplex LC	C
POC21140-xx	100G CFP2 ER4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	40km	Duplex LC	C

100G CFP Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POCP1101-85	100G CFP SR10	10x10G, 100GbE 10x11G, OTU4	850nm	100m (OM3) 150m (OM4)	MPO-24	C
POCP1104-85	100G CFP SR10	10x10G, 100GbE 10x11G, OTU4	850nm	300m (OM3) 400m (OM4)	MPO-24	C
POCP1110-xx	100G CFP LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	10km	Duplex LC	C
POCP1120-xx	100G CFP LR4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	20km	Duplex LC	C
POCP1140-xx	100G CFP ER4	4x25G, 100GbE 4x28G, OTU4	LAN-WDM	40km	Duplex LC	C
