8*RJ-45 / 2*SFP IES

The new generation Managed Industrial Gigabit Switch is with 2-Port 10/100/1000Base-TX and 8-Port 100/1000Base-FX SFP that provide stable and reliable Ethernet transmission offered by Fiberroad, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain

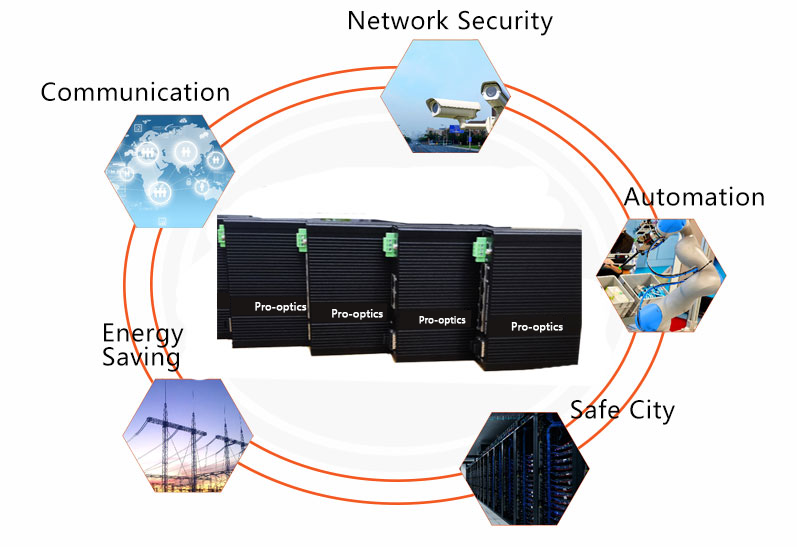

Wide Public Service Applications

Industrial-grade Ethernet Switches can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.


Redundant Ring, Fast Recovery for Surveillance System

Supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments.There is no theoretical limit on the number of rings that can be added to a network. So as long as you have sufficient bandwidth, you can keep adding nodes.

User-Friendly Management Software

For efficient management, the Managed Industrial Switches is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, GUI, easy-to-use, platform-independent management and configuration facility.

  • For text-based management, it can be accessed via Telnet and the console port.

  • For standard-based monitor and management software, it offers SNMPv3 connection for secure remote management.



Robust Layer 2 Features

The managed Ethernet functions include STP/RSTP/MSTP/ITU-T G.8032 ERPS and multiple μ-Ring for redundant cabling, layer 2 Ethernet IGMP, VLAN, QoS, ACL, Security, IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet.

Advanced PoE management functions optional, such as weekly PoE power scheduling as well as device auto-checking and auto-reset. The built-in “PoE schedule” for energy saving, enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

Flexibility and Extension Solution

Support dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Support SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.


Environmentally Hardened Design

With IP40 Aluminum case for better heat dissipation and industrial grade temperature -40°~75°, dust proof and DIN Rail mountable on plant floors or in curb side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (9 to 56V DC, or 48 to 56V DC for PoE) for worldwide high availability applications requiring dual or backup power inputs.

High Heat Dissipation Structure, thermally conductive pad connected to PoE and main chipset, and the both side chipset is closely fit to the aluminum case, and the casing is striping style to get the most dissipation performance, so the whole design is very precise and delicate.


Physical Port

RJ45 Port and Speed8×10/100/1000Base-Tx
Fiber Port and Speed2×100/1000Base-Fx SFP
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Parameters
Ethernet StandardsIEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ab Gigabit 1000T

IEEE 802.3x flow control and back pressure

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3ad port trunk with LACP

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN tagging

IEEE 802.1ad Q-in-Q VLAN stacking

IEEE 802.1x Port Authentication Network Control

IEEE 802.1ab LLDP

ITU G.8032 ERPS Ring

RFC 768 UDP

RFC 793 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP v1

RFC 2236 IGMP v2

Packet Buffer8Mbits
Packet Length10Kbytes
MAC Address Table8K
Transmission ModeStore and Forward (full/half duplex mode)
Switch Fabric24Gbps/non-blocking
Exchange PropertyDelay time: < 7ps
Backplane bandwidth: 24Gbps; Packet forwarding rate: 17.86Mpps
PoE (Optional)
PoE Standard8×IEEE 802.3af/IEEE 802.3at PoE
Power BudgetMax. PoE output power budget 30W
LED Indicator
PowerConnect-always
SYSIndustrial Ethernet Switch System work state
RJ45Link/Act: connect-always; data exchange-twinkle
FiberLink/Act: connect-always; data exchange-twinkle
Power Information
Power Access ModePhoenix terminal
Redundant Power InputDC 12-56V
Overload ProtectionYes
Power ReverseSupport
Power ConsumptionFull-load<12W
Physical Property
Protection GradeIP40 aluminum case
Cooling ModeNatural cooling, no fan design

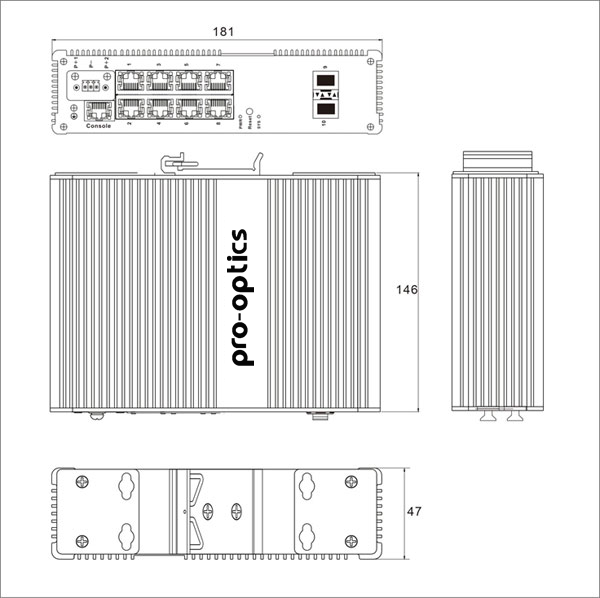

Dimensions181mm×146mm×47mm
Installation ModeDIN Rail/wall-mountable
Weight750g (With PoE: 800g)
Working Environment
Operating Temperature-40°C~75°C
Operating Humidity5%~90% non-condensing
Storage Temperature-40°C~85°C
Warranty
MTBF500,000 hours
Defects Liability Period3 year warranty, lifetime technical support
Certification Standard
EMCFCC Part15 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8

EN61000-4-11

VibrationIEC60068-2-6

-40~75°C High and Low Temperature Test

IP40 Protection Test

Software FeaturesRedundant network:

STP, RSTP, MSTP, IT-T G.8032 Ethernet Ring Protection Switching (ERPS)for redundant cabling

ERPS/ Ring for Redundant Cabling, recovery time<20ms in 250 devices

Multicast: IGMP snooping V1/V2/V3

VLAN: IEEE 802.1Q4K VLAN, GVRP, GMRP, QINQ

Link Aggregation: Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation

Management Function: CLI, Web based management, SNMP v1/v2c/v3, Telnet/SSH server for management

Diagnostic Maintenance: Port mirroring, Ping

Alarm management: 1 way relay alarm output, RMON, SNMP Trap

RMON, MIBII, Port mirroring, Event syslog, DNS, SNTP, IEEE 802.1ab LLDP

Security: DHCP Server/Client/Relay option 82/Snooping User hierarchical management

Flexibility security: Port based and MAC based IEEE 802.1X, ACL, HTTP/HTTPS, SSL/SSH v2

Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control.

Broadcast storm suppression, Un known-Multicast suppression and Unknown-Unicast suppression

Software upgrade via HTTP, redundant firmware to avoid upgrade failure
