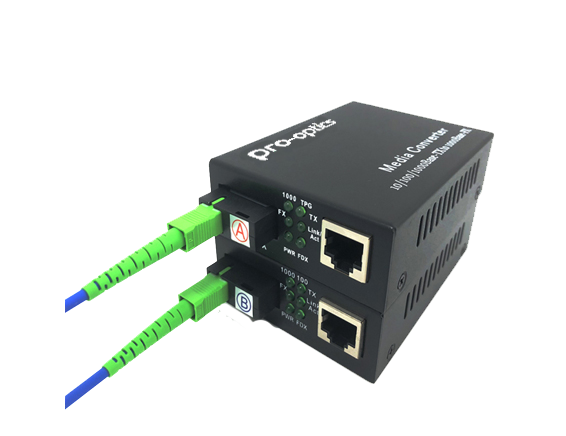

Copper to Fiber Gigabit Meida Converter

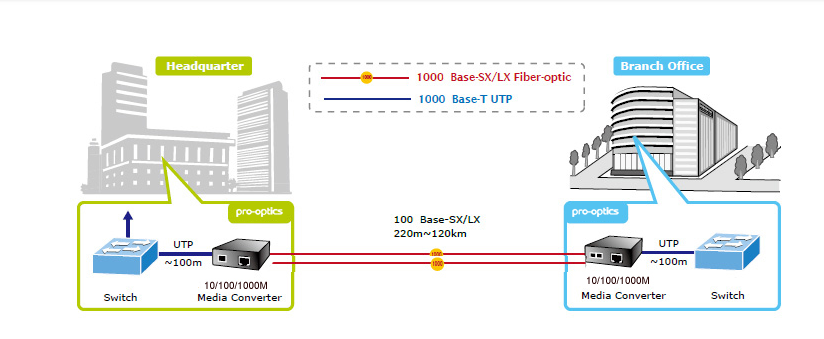

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ45 port and highly stable Gigabit fiber performance, Pro-optics-LINK Pro-optics-DU-1000 ,Pro-optics-WDM-1000, Pro-optics-SFP0101G media converters support conversion between 10/100/1000BASE-T and 1000BASE-SX/LX network. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively. Distance Extension with High Performance and Steady Network Communications Pro-optics-LINK gigabit media converter series extends communication distance with highly Gigabit performance via fiber optic cable. The Pro-optics-DU-1000 / Pro-optics-WDM-1000 series provides media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM, 15/60km) for various fiber optic applications

Enhanced Smart Management Features

The Pro-optics-DU-1000 or Pro-optics-WDM-1000 series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass through function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. The DIP switch can disable or enable the LFP function. The LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission.  and The DIP also can support 9K jumbo frame.

Easy Installation

The Pro-optics-DU-1000 or Pro-optics-WDM-1000  series support Pro-optics-MC-R14 2U Chassis. this media converter with media converter ear can plug into Pro-optics-LINK 14 slots media converter chassis.

 Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m (GT-802)
 1000BASE-LX: 9/125μm single-mode cable provides long distance for 10km (GT-802S)
 1000BASE-LX WDM interface for up to 15km (single-mode fiber 9μm/125μm) on GT-806A15/B15
 1000BASE-LX WDM interface for up to 60km (single-mode fiber 9μm/125μm) on GT-806A60/B60
 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
 Layer 2 key Features
- IEEE 802.3x full-duplex flow-control and back-pressure in half-duplex eliminate the loss of packets
- Supports auto MDI/MDI-X function
- Store-and-Forward mechanism
- Non-blocking full wire-speed forwarding rate
 Media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX
 Fiber media allows
- Multi-mode fiber using SC/LC/WDM connector
- Single-mode fiber using SC/LC/WDM connector
 Compact size for working with Pro-optics-LINK MC family media chassis (Pro-optics-MC-R14)
 Wall-mountable design
 LED indicators for easy network diagnostics
 Provides DIP switch for LFP function (Disable/Enable) setting
 OAM TS-1000 supported
 9K Jumbo Frame Supported
 Choice of fiber-connector from SC, LC and WDM, multi-mode/single-mode fiber for 1000Base SFP interface
 Compact in size, easy installation

Converter Specifications
SpeedTwisted-pair:
  10/20Mbps for half/full-duplex
  100/200Mbps for half/full duplex
  2000Mbps for full-duplex
Fiber-optic:
  2000Mbps for full-duplex
  200Mbps for full-duplex (GT-805A only)
Network CablesTwisted-pair
  10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
  100BASE-TX: 2-pair UTP Cat. 5, up to 100m
  1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable
1000BASE-SX:
  50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m.
1000BASE-LX:
  9/125μm single-mode cable, providing long distance for 10/15/20/30/40/50/60/70/120km (vary on SFP module)

100BASE-FX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 2km(vary on SFP module)
9/125μm single-mode cable, providing long distance for 20/40/60m (vary on SFP module)
Jumbo Packet Size9K
