8TX 10/100/1000M IES

High Power PoE Solution for Harsh Industrial Network

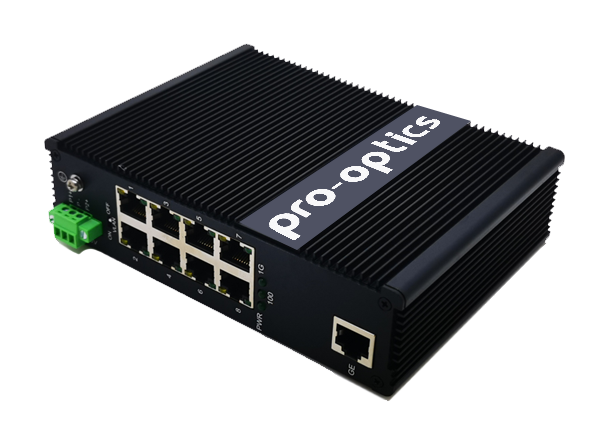

The Pro-optics-PSE1008G is the smallest industrial-grade 8-Port PoE+ Switch in Pro-optics-LINK industrial PoE product line and is specially designed to be installed in a narrow environment. It provides up to 240-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. With four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE copper interface for uplink connection.


The power system of the Pro-optics-PSE1008G  supports 48~54V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

Plug and Play High Power Sourcing Solution

Complying with the IEEE 802.3at Power over Ethernet Plus technology, the Pro-optics-PSE1008G  provides up to 30 watts of PoE output power to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. Furthermore, the Pro-optics-PSE1008G  can extend much longer distance by using Pro-optics-LINK PoE Extender for powering up the PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PoE extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.


Dual Power Input for High Availability Network System

The Pro-optics-PSE1008G  features a strong dual power input system with wide-ranging voltages (48V~54V DC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the Pro-optics-PSE1008G  via Power Supply 2 without any break of operation.


Robust Protection

The Pro-optics-PSE1008G  provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Flexible and Easy Installation with Limited Space

The compact-sized Pro-optics-PSE1008G  is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.
