Active Optical Cables (AOC)

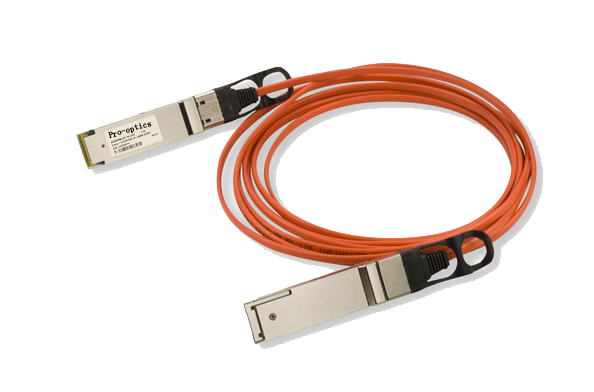

Pro-optics Interconnect Solutions 56 Gb/s Low Power Active Optical Cable assemblies offer a cost-effective, extended reach option for high-speed data center intercon-nects. Using 850 nm VCSEL technology, Pro-optics QSFP+ cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 16Gb/s per direction, providing an aggregated rate of 40Gb/s. The cable is available in a number of standard lengths up to 100 meters.

Lowest weight for high port count architectures
High-density 56 Gb/s interconnectivity
Small bend radius for easy installation and fiber management
Low power consumption
Based on industry-standard QSFP form factor
Utilizes vertically integrated and highly reliable VCSEL technology
Includes innovative digital diagnostics

InfiniBand 4X SDR, DDR, QDR and FDR
Ethernet 10G, 40G, 56G
FiberChannel 40G, SAN, 4x16G
Rack-to-Rack, Shelf-to-Shelf Interconnect Top of Rack (TOR) Switch
Networking, Storage
Hubs, switches, routers, servers Supercomputer, HPC

P/N	Data Rate (bps)	Description	Length (meter)	Cable Type	Power	BER
56G-AOC5M	56 G	QSFP+ to QSFP+ AOC	5	MMF OM3	< 1.05W	< 10^(-15)
56G-AOC10M	56 G	QSFP+ to QSFP+ AOC	10	MMF OM3	< 1.05W	< 10^(-15)
56G-AOC15M	56 G	QSFP+ to QSFP+ AOC	15	MMF OM3	< 1.05W	< 10^(-15)
56G-AOC10M	56 G	QSFP+ to QSFP+ AOC	20	MMF OM3	< 1.05W	< 10^(-15)
56G-AOC30M	56 G	QSFP+ to QSFP+ AOC	30	MMF OM3	< 1.05W	< 10^(-15)
56G-AOC50M	56 G	QSFP+ to QSFP+ AOC	50	MMF OM3	< 1.05W	< 10^(-15)
56G-AOC100M	56 G	QSFP+ to QSFP+ AOC	100	MMF OM3	< 1.05W	< 10^(-15)
