40G/56G QSFP+

Pro-optics provides data center and metro telecommunication networks with a series of 40G/56G QSFP+ pluggable optical transceiver modules based on 10G/14G NRZ technologies. These modules can cover the interconnection links within 100m to 400m over multimode fiber (MMF) or 2km to 40km over single-mode fiber (SMF).

Features

Hot-pluggable QSFP+ form factor transceiver modules
Compliant with QSFP+ MSA, IEEE 802.3, InfiniBand EDR and OTN OTU3 specifications
4x 10G/14G NRZ electrical interface
4x 10G/14G NRZ or 2x 20G NRZ optical interface
Data rate up to 41.25Gbps or 45Gbps
850nm VCSEL or 1310nm/CWDM/LAN-WDM DFB (DML or EML) transmitters and PIN or APD receivers
Reach up to 100m/150m/300m/400m over MMF or 2km/10km/20km/30km/40km/80km over SMF
Duplex LC or single MPO receptacle
Low power consumption
Built-in digital diagnostic functions
Case operating temperature range: 0°C to 70°C or -40°C to +85°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

Data Center
Storage Area Network
High-Performance Computing
Metro Telecommunication

Ordering Information

40G QSFP+ CWDM/DWDM Single Lambda Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POQP4010-C27	40G QSFP+ CWDM	40GbE/OTU3	1271nm	10km	Duplex LC	C
POQP4010-C29	40G QSFP+ CWDM	40GbE/OTU3	1291nm	10km	Duplex LC	C
POQP4010-C31	40G QSFP+ CWDM	40GbE/OTU3	1311nm	10km	Duplex LC	C
POQP4010-C33	40G QSFP+ CWDM	40GbE/OTU3	1331nm	10km	Duplex LC	C
POQP4080-Dxx	40G QSFP+ DWDM C-band 100GHz	40GbE/OTU3	C13-C60 (48λ)	80km (w/ DCM & EDFA)	Duplex LC	C

40G QSFP+ Duplex LC MMF Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POQB4001-xx	40G QSFP+ SR1.2	2x20G, 40GbE	850/900nm	100m (OM3) 150m (OM4)	Duplex LC	C
POQP4003-xx	40G QSFP+ SWDM4	40GbE	850/880/910/940nm	240m (OM3) 350m (OM4) 440m (OM5)	Duplex LC	C

Traditional 40G QSFP+ Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POQP4001-85	40G QSFP+ SR4	4x10G, 40GbE 4x11G, OTU3	850nm	100m (OM3) 150m (OM4)	MPO-12	C
POQP4001I-85	40G QSFP+ SR4	4x10G, 40GbE 4x11G, OTU3	850nm	100m (OM3) 150m (OM4)	MPO-12	I
POQP4003-85	40G QSFP+ SR4	4x10G, 40GbE 4x11G, OTU3	850nm	300m (OM3) 400m (OM4)	MPO-12	C
POQP4003I-85	40G QSFP+ SR4	4x10G, 40GbE 4x11G, OTU3	850nm	300m (OM3) 400m (OM4)	MPO-12	I
POQP4002-13	40G QSFP+ PIR4	4x10G, 40GbE 4x11G, OTU3	1310nm	2km	MPO-12	C
POQP4002I-13	40G QSFP+ PIR4	4x10G, 40GbE 4x11G, OTU3	1310nm	2km	MPO-12	I
POQP4010-13	40G QSFP+ PLR4	4x10G, 40GbE 4x11G, OTU3	1310nm	10km	MPO-12	C
POQP4010I-13	40G QSFP+ PLR4	4x10G, 40GbE 4x11G, OTU3	1310nm	10km	MPO-12	I
POQP4030-13	40G QSFP+ XPSM4	4x10G, 40GbE 4x11G, OTU3	1310nm	30km	MPO-12	C
POQP4002-xx	40G QSFP+ LR4 Lite	40GbE/OTU3	CWDM	2km	Duplex LC	C
POQP4002I-xx	40G QSFP+ LR4 Lite	40GbE/OTU3	CWDM	2km	Duplex LC	I
POQP4010-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	10km	Duplex LC	C
POQP4010I-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	10km	Duplex LC	I
POQP4020-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	20km	Duplex LC	C
POQP4020I-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	20km	Duplex LC	I
POQP4040-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	40km	Duplex LC	C
POQP4040I-xx	40G QSFP+ ER4	40GbE/OTU3	CWDM	40km	Duplex LC	I
POQP4080-xx	40G QSFP+ ZR4	40GbE/OTU3	LAN-WDM	80km	Duplex LC	C

56G QSFP+ Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POQP5601-85	56G QSFP+ SR4	4x16GFC/FDR	850nm	100m (OM3) 150m (OM4)	MPO-12	C

40G QSFP+ CWDM/DWDM Single Lambda Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POQP4010-C27	40G QSFP+ CWDM	40GbE/OTU3	1271nm	10km	Duplex LC	C
POQP4010-C29	40G QSFP+ CWDM	40GbE/OTU3	1291nm	10km	Duplex LC	C
POQP4010-C31	40G QSFP+ CWDM	40GbE/OTU3	1311nm	10km	Duplex LC	C
POQP4010-C33	40G QSFP+ CWDM	40GbE/OTU3	1331nm	10km	Duplex LC	C
POQP4080-Dxx	40G QSFP+ DWDM C-band 100GHz	40GbE/OTU3	C13-C60 (48λ)	80km (w/ DCM & EDFA)	Duplex LC	C

40G QSFP+ Duplex LC MMF Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POQB4001-xx	40G QSFP+ SR1.2	2x20G, 40GbE	850/900nm	100m (OM3) 150m (OM4)	Duplex LC	C
POQP4003-xx	40G QSFP+ SWDM4	40GbE	850/880/910/940nm	240m (OM3) 350m (OM4) 440m (OM5)	Duplex LC	C

Traditional 40G QSFP+ Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POQP4001-85	40G QSFP+ SR4	4x10G, 40GbE 4x11G, OTU3	850nm	100m (OM3) 150m (OM4)	MPO-12	C
POQP4001I-85	40G QSFP+ SR4	4x10G, 40GbE 4x11G, OTU3	850nm	100m (OM3) 150m (OM4)	MPO-12	I
POQP4003-85	40G QSFP+ SR4	4x10G, 40GbE 4x11G, OTU3	850nm	300m (OM3) 400m (OM4)	MPO-12	C
POQP4003I-85	40G QSFP+ SR4	4x10G, 40GbE 4x11G, OTU3	850nm	300m (OM3) 400m (OM4)	MPO-12	I
POQP4002-13	40G QSFP+ PIR4	4x10G, 40GbE 4x11G, OTU3	1310nm	2km	MPO-12	C
POQP4002I-13	40G QSFP+ PIR4	4x10G, 40GbE 4x11G, OTU3	1310nm	2km	MPO-12	I
POQP4010-13	40G QSFP+ PLR4	4x10G, 40GbE 4x11G, OTU3	1310nm	10km	MPO-12	C
POQP4010I-13	40G QSFP+ PLR4	4x10G, 40GbE 4x11G, OTU3	1310nm	10km	MPO-12	I
POQP4030-13	40G QSFP+ XPSM4	4x10G, 40GbE 4x11G, OTU3	1310nm	30km	MPO-12	C
POQP4002-xx	40G QSFP+ LR4 Lite	40GbE/OTU3	CWDM	2km	Duplex LC	C
POQP4002I-xx	40G QSFP+ LR4 Lite	40GbE/OTU3	CWDM	2km	Duplex LC	I
POQP4010-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	10km	Duplex LC	C
POQP4010I-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	10km	Duplex LC	I
POQP4020-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	20km	Duplex LC	C
POQP4020I-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	20km	Duplex LC	I
POQP4040-xx	40G QSFP+ LR4	40GbE/OTU3	CWDM	40km	Duplex LC	C
POQP4040I-xx	40G QSFP+ ER4	40GbE/OTU3	CWDM	40km	Duplex LC	I
POQP4080-xx	40G QSFP+ ZR4	40GbE/OTU3	LAN-WDM	80km	Duplex LC	C

56G QSFP+ Optical Transceivers

P/N	Description	Data Rate	Wavelength	Distance	Connector	Temp.
POQP5601-85	56G QSFP+ SR4	4x16GFC/FDR	850nm	100m (OM3) 150m (OM4)	MPO-12	C

40G/56G QSFP+ Optical Transceivers

40G/56G QSFP+

Features

Applications

Ordering Information

40G QSFP+ CWDM/DWDM Single Lambda Optical Transceivers

40G QSFP+ Duplex LC MMF Optical Transceivers

Traditional 40G QSFP+ Optical Transceivers

56G QSFP+ Optical Transceivers

40G QSFP+ CWDM/DWDM Single Lambda Optical Transceivers

40G QSFP+ Duplex LC MMF Optical Transceivers

Traditional 40G QSFP+ Optical Transceivers

56G QSFP+ Optical Transceivers

You need help?

Recommended

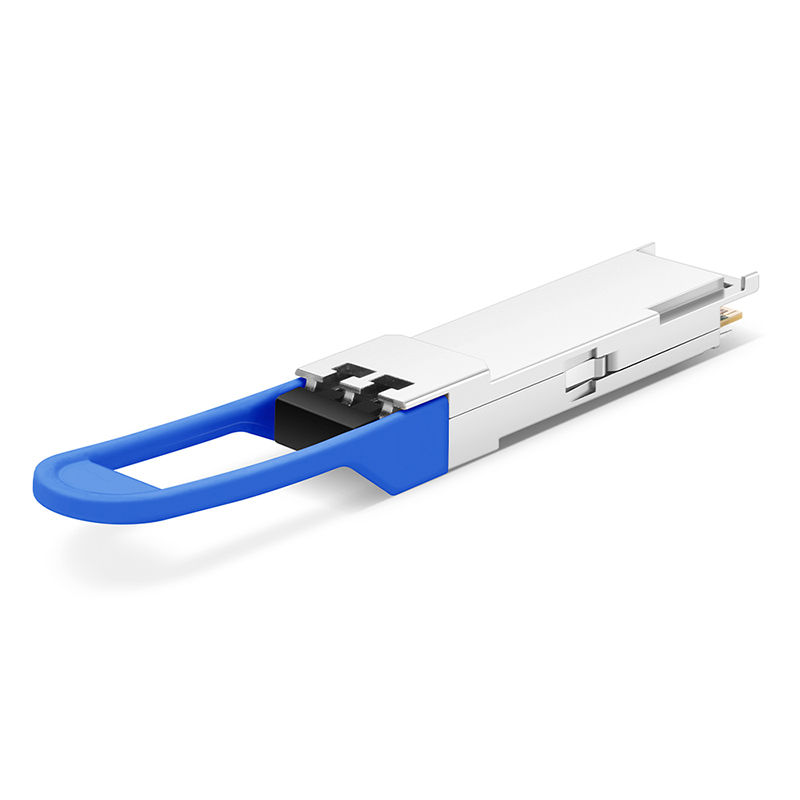

100G Lambda QSFP28
