5TX 10/100/1000M IES

5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 4 ports of IEEE 802.3af/at devices powered Up to 120-watt PoE budget Supports PoE power up to 30 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100m

High Power PoE Solution for Harsh Industrial Network

The Pro-optics-PSE1005G is the smallest industrial-grade 4-Port PoE+ Switch in Pro-optics-LINK industrial PoE product line and is specially designed to be installed in a narrow environment. It provides up to 120-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. With four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and one extra 10/100/1000BASE-T RJ45 copper interface for uplink connection.

The power system of the Pro-optics-PSE1005G  supports 48~54V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.


Plug and Play High Power Sourcing Solution

Complying with the IEEE 802.3at Power over Ethernet Plus technology, the Pro-optics-PSE1005G  provides up to 30 watts of PoE output power to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. Furthermore, the Pro-optics-PSE1005G  can extend much longer distance by using Pro-optics-LINK PoE Extender for powering up the PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PoE extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.

Dual Power Input for High Availability Network System

The Pro-optics-PSE1005G  features a strong dual power input system with wide-ranging voltages (48V~54V DC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the Pro-optics-PSE1005G  via Power Supply 2 without any break of operation.

Robust Protection

The Pro-optics-PSE1005G  provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.


Flexible and Easy Installation with Limited Space

The compact-sized Pro-optics-PSE1005G  is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.

Hardware Specifications
Copper Ports5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
PoE Budget120W maximum@75 degrees C
ConnectorRemovable 3-pin terminal block
Pin 1/2 for Power 1; Pin 2/3 for Power 2
Power Requirements48~54V DC, 3A (max.)
Redundant power with reverse polarity protection
Power ConsumptionDC 48V:
Max. 0.48 watts/1.63BTU (System)
Max. 62.88 watts/214.5BTU ( Full Loading)
DC 54V:
Max. 0.54 watts/1.84BTU (System)
Max. 123.12 watts/420BTU ( Full Loading)

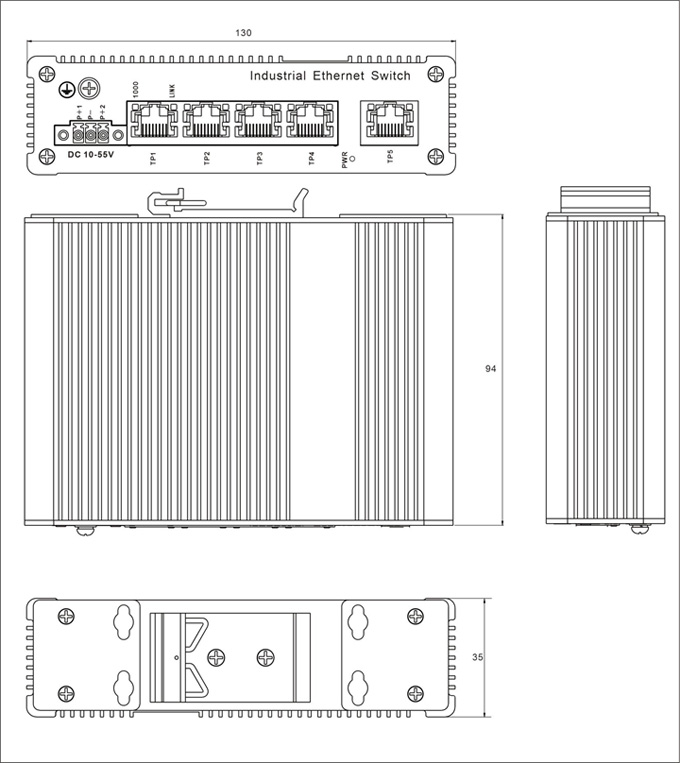

Dimensions (W x D x H)35 x 94 x 130 mm
EnclosureIP30 metal case
InstallationDIN-rail kit and wall-mount kit
ESD Protection6KV
Switch Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric10Gbps
Throughput (packet per second)7.4Mpps@64bytes
Address Table2K entries
Jumbo Frame9Kbytes
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
Backward compatible with IEEE 802.3af Power over Ethernet/PSE
PoE Power Supply TypeEnd-span
Power Pin Assignment1/2 (+), 3/6 (-)
PoE Power OutputPer port 48-54V DC
Max. 30 watts@54V DC
Max. 15 watts@48V DC
PoE Power Budget120 watts
Max. Number of Class 4 PDs4
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
IEEE 802.1p Class of Service
TemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
