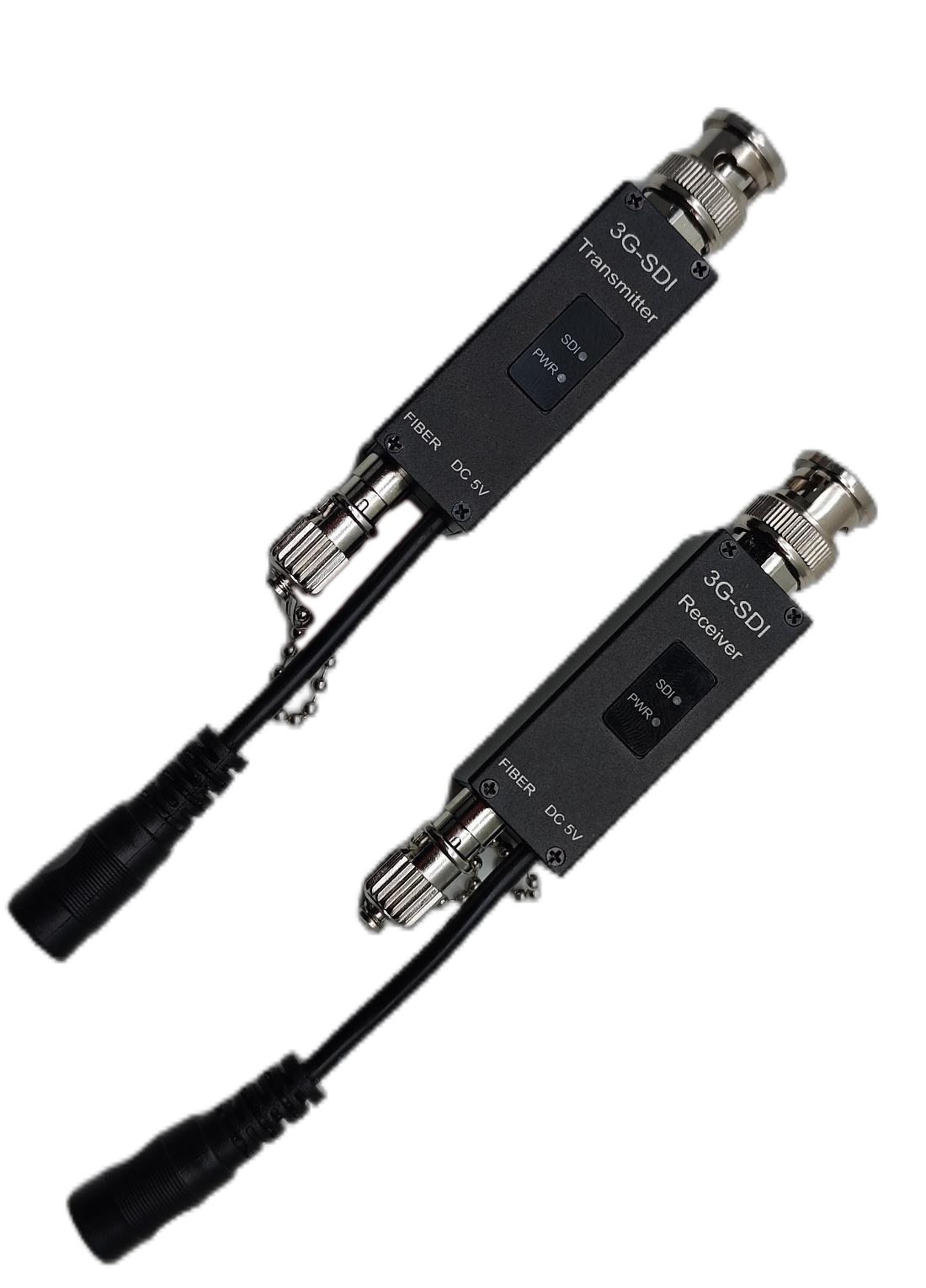

Pen-sized 3G-SDI Fiber Optical Extender

Pen-sized 1 channel forward 3G-SDI Fiber optical extender in pairs, 1310nm, up to 10km on SMF, ST optical connector, with External power adapter Input voltage 100VAC~242VAC,50-60Hz, output DC 5V,Product size 90*17*17mm

Pen-sized 3G-SDI Fiber Optical Extender.pdf


Features

lComply with DVB-ASI, SMPTE424M(3G-SDI), SMPTE292M(HD-SDI), and SMPTE259M(C)(SD-SDI)  standards;

lSupport SDI pathological signal:

lInput cable balance to compensate for the loss of cable transmission;

lInput/output cable transmission distance of up to 80m (BELDEN8281 Copper cable);

lUp to 10km over single mode fiber

lST Optical interface

lSDI Signal Lock LED

lAluminium alloy shell

lPlug-in and Play

lProduct size 90*17*17mm

lProduct net weight (unit: pair) 0.09KG

lInput DC 5V

lPower dissipation 1.5W per unit

lOperating temperature -20°C ~75°C
