1U 1.6T DCI BOX

Pay-As-You-Grow architecture based on pluggable 400G/200G transponder units and pluggable optical modules. Supported clients: 10GbE, 100GbE, OTU2, OTU4. Supported FEC modes: Line: FEC + SD-FEC for metro and long haul applications OTU4. Standard MSA pluggable: tunable 400G DWDM CFP2 DCO for 100/200/400G DWDM line interface CFP2, 100G QSFP28 SR4/ER4/LR4/CWDM4 for 100GbE client interface, 10G SFP+ for 10GbE/OTU2 client interface. Comprehensive line and service performance monitoring. Remote management with in-band GCC, or out-of-band OSC. Easy maintenance with ﬁeld-replaceable parts: Dual pluggable power supply units AC/DC, Fan unit, NMS controller card

Stackable 1U 1.6T DCI WDM Transmission Platform

Overview

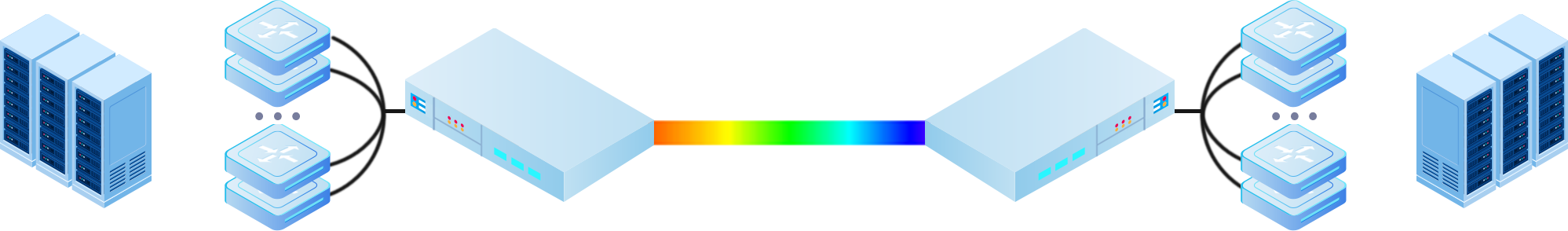

Pro-optics is a stackable 1U 1.6T DCI DWDM platform customized for data center interconnection applications. This product has large transmission capacity, small size, and fully meets the requirements of data center computer rooms. It has low power consumption and convenient operation and maintenance. It is not only suitable for short-distance service interconnection between data centers, but also for long-distance service transmission of backbone networks between data centers.

1U 1.6T DCI Chassis supports 16 100G client-side interfaces and 8X200G/4X 400G system-side interfaces, 20 SFP+ client-side interfaces and 2X 200G system- side interfaces. Based on an open software architecture, it provides various This kind of open interface allows DCI users to carry out secondary development, so that the management method can be easily integrated with the data center equipment management system, which reduces the difficulty of daily maintenance of equipment and provides a strong guarantee for the rapidly growing data center business.

Physical properties

characteristic	describe
Frame size (mm) (HWD)	44.45mm (H) * 442mm (W) * 490mm (D)
Frame size (mm) (HWD)	1U high, 19 inches wide, four pluggable electrical layer card slots, the maximum capacity is 1.6T
Pluggable cabinet	19-inch cabinet
power supply	1+1 power backup AC input: 100～240V, 47～63Hz DC input: -40V～-72V
heat dissipation	forward wind, backward wind
working environment	Operating temperature: 0 °C ~ 45 °C Storage temperature: -40 °C ~ 70 °C Relative humidity: 10% to 90%, no condensation
Maximum power consumption	450W
management interface	2xRJ45 network port, 1 x RJ45 B serial port , 1xRJ45 control port
manage	Support Open API/ SNMP/NETCONF/ CLI
In-band management	Support GCC1/ 1+ 2

Technical Specifications(2X 200G Muxponder or 400G Muxponder)


Technical indicators	Description （2X 200G Muxponder or 400G Muxponder）
Equipment size	single slot card
Client side interface	Each service channel has 4 pluggable QSFP28 100GE client ports, and the whole machine has a maximum of 16 100GE ports
System side interface	1 pluggable 400G/200G CFP2 DCO coherent color light module or 2 pluggable 200G CFP2 DCO coherent color light modules for each service channel, the whole machine has a maximum of 4x 400G/8x 200G line ports or 8 200G line ports
System side signal and multiplexing structure	200G : OCh <-> OTUC2 <-> ODUC2 <-> ODU4
System side signal and multiplexing structure	400G : OCh <-> OTUC4 <-> ODUC4 <-> ODU4
Client side signals and mapping methods	100GE <-> ODU4
Line side modulation format	200G: 16QAM
Line side modulation format	400G: 16QAM
FEC mode	200G: SD-FEC
FEC mode	400G: SD-FEC


Technical indicators	Description (200G Muxponder)
Equipment size	Dual Slot Board
Client side interface	Each service channel has 20 pluggable SFP+ 10GE ports, and the whole machine has a maximum of 40 10GE ports
System side interface	1 pluggable 200G CFP2 DCO coherent color light module per service channel, and the whole machine has a maximum of 2 200G/100G line ports
System side signal and multiplexing structure	200G : OCh <-> OTUC2 <-> ODUC2 <-> ODU4
System side signal and multiplexing structure	100G : OCh <-> OTU4 <-> ODU4
Client side signals and mapping methods	10GE<->ODU2/ODU2e<->ODU4
	STM64/OC192 <-> ODU2/ODU2e <-> ODU4
	OTU2/2e <-> ODU2/2e
Line side modulation format	100G: DP-QPSK
	200G: DP-8QAM
	200G: DP-16QAM
FEC mode	200G: SD-FEC
FEC mode	100G: G.709 FEC, SD-FEC

Optical layer common unit board

board	panel	describe
OA1		u Optical amplifier board, occupying 1 slot u Support built-in OSC monitoring channel u Support VOA gain adjustable u Support MON monitoring interface
OA2		u Optical amplifier board, occupying 2 slots u DFA supporting 23dBm and 21dBm saturated output u Support built-in OSC monitoring channel u Support O CM monitoring u Support VOA gain adjustable u Support MON monitoring interface

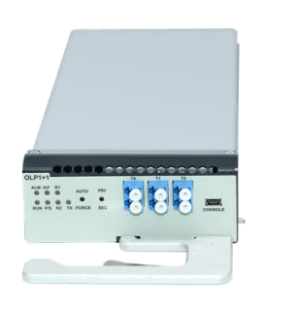

OLP1+1		u Optical line protection board, occupying 1 small slot u Support optical line 1+1 protection u Support both manual and automatic working modes u Support power down, no light lock u Support panel key switch
OTDR		u Optical time domain reflectometry monitoring card, occupying 1 small slot u Support working wavelength: 1625nm±10nm u Support pulse width: 5ns~20us
O MD48		u 4 8 -wave D WDM demultiplexing equipment

Part Number	Description

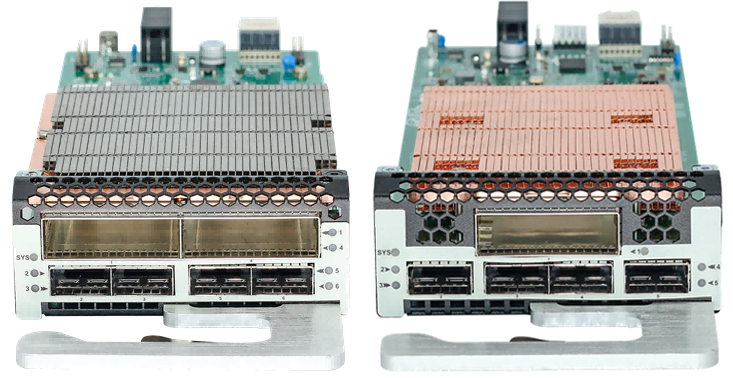

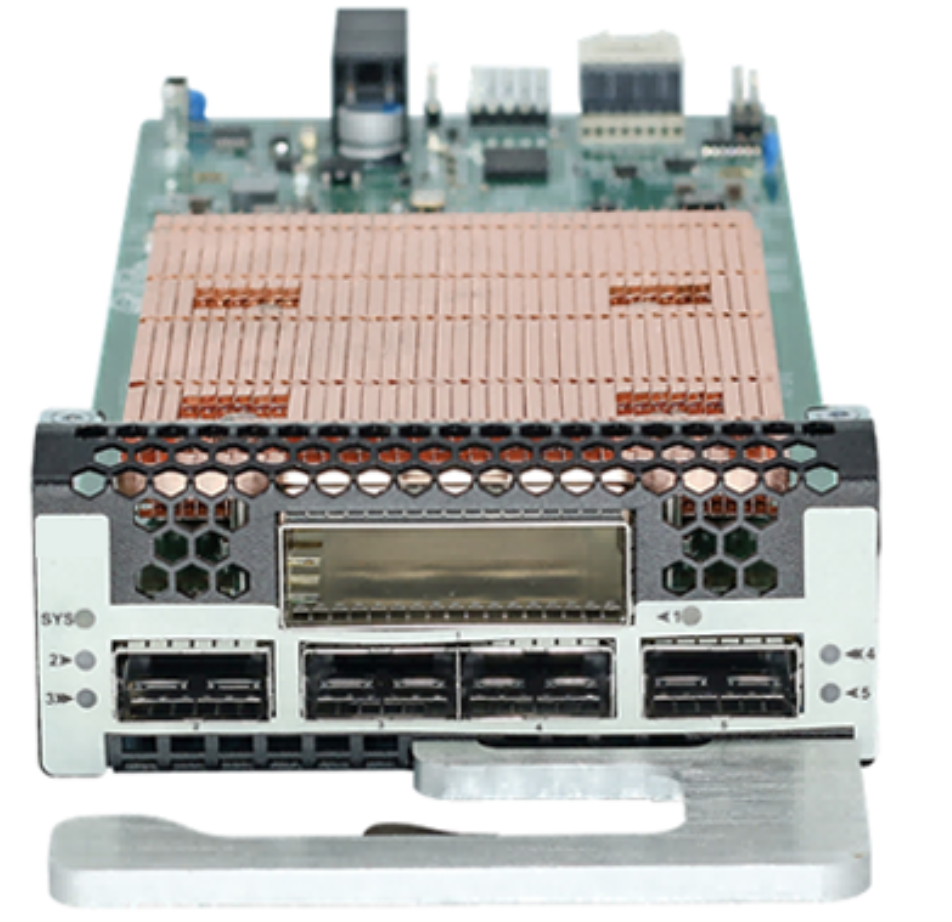

400G Muxponder	Line side 400G, client side 4x 100GE/OTU4
2x200G Muxponder	Line side 2x 200G, client side 2x (2x 100GE/OTU4)

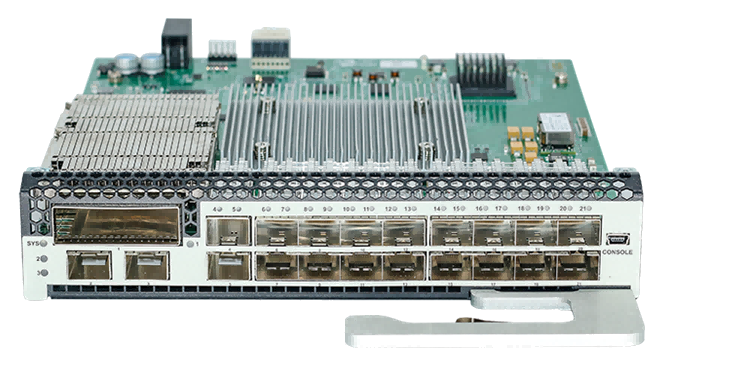

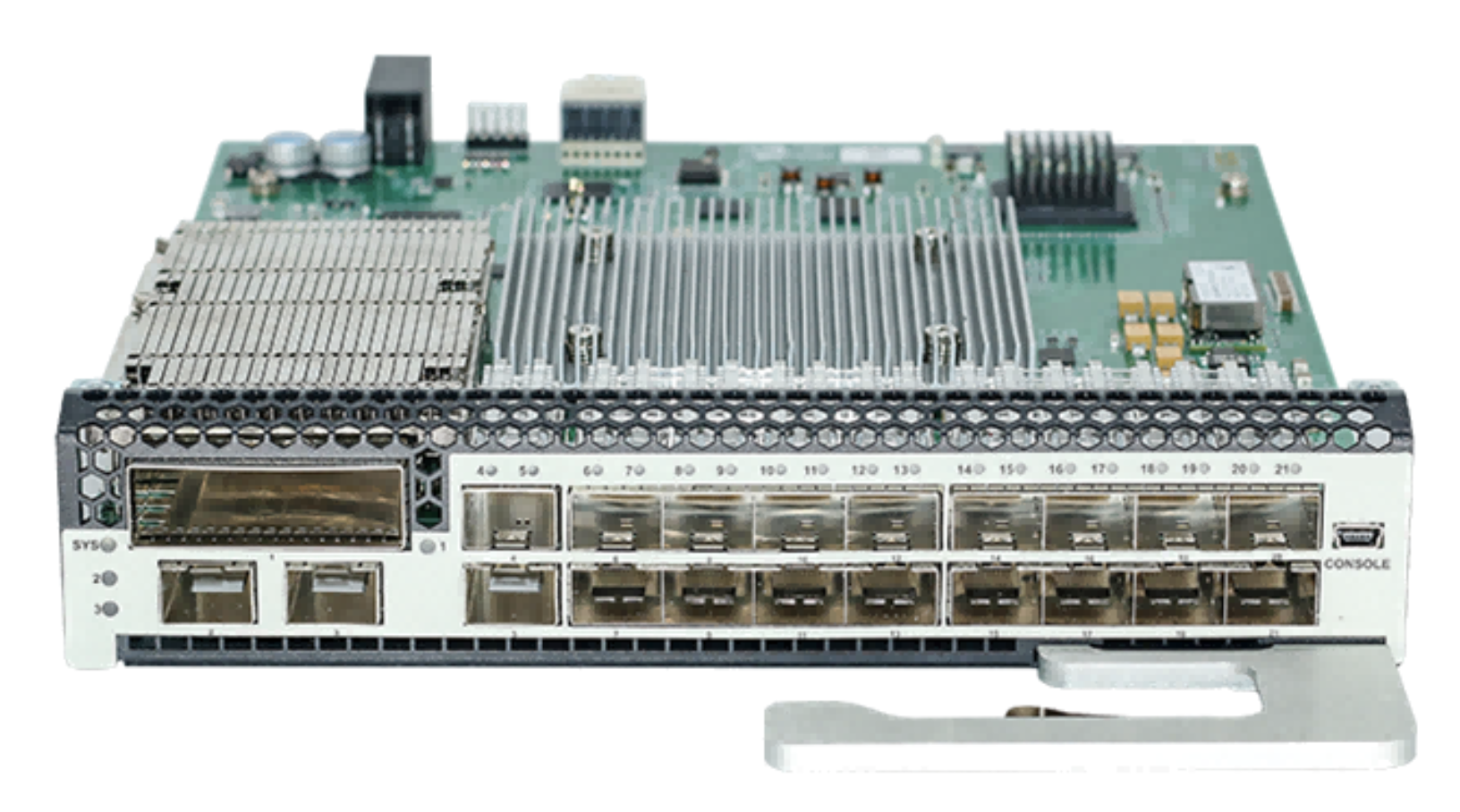

200G Muxponder	Line side 200G, client side 20 x 10GE/OTU2

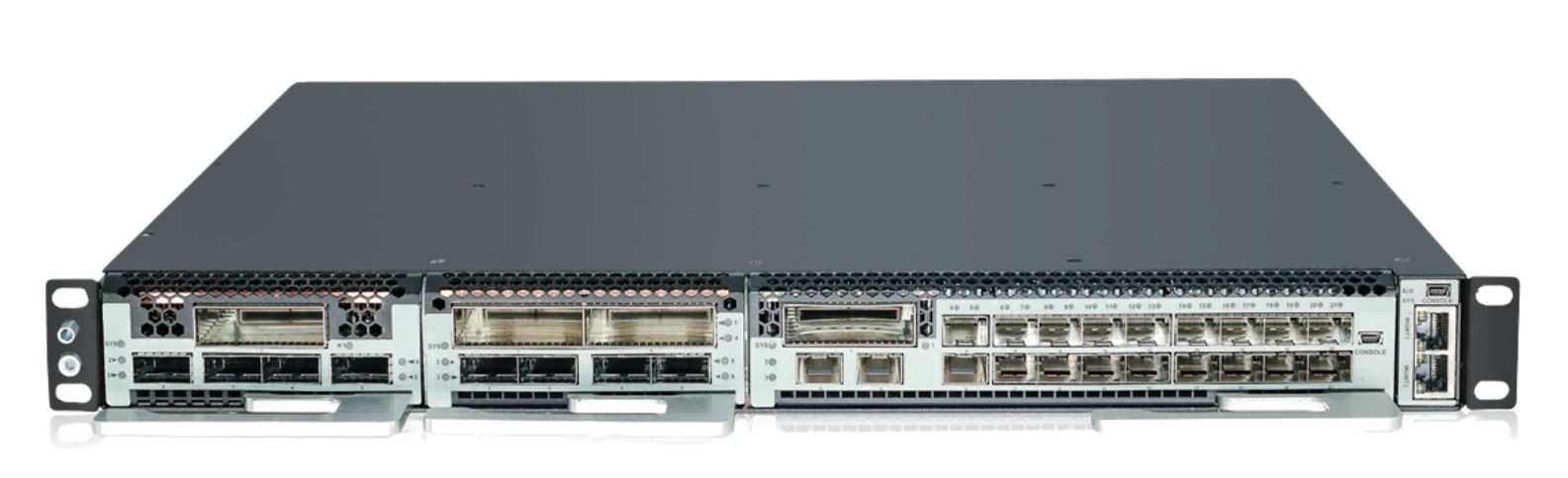

1U 1.6T Chassis	1U high, 19 inches wide, four plug-able electrical layer card slots, the maximum capacity is 1.6T, Dual Power supply 220 V AC/48 DC, Fans, NMS system
400G CFP DCO M35	Acacia 400G CFP2 DCO M35

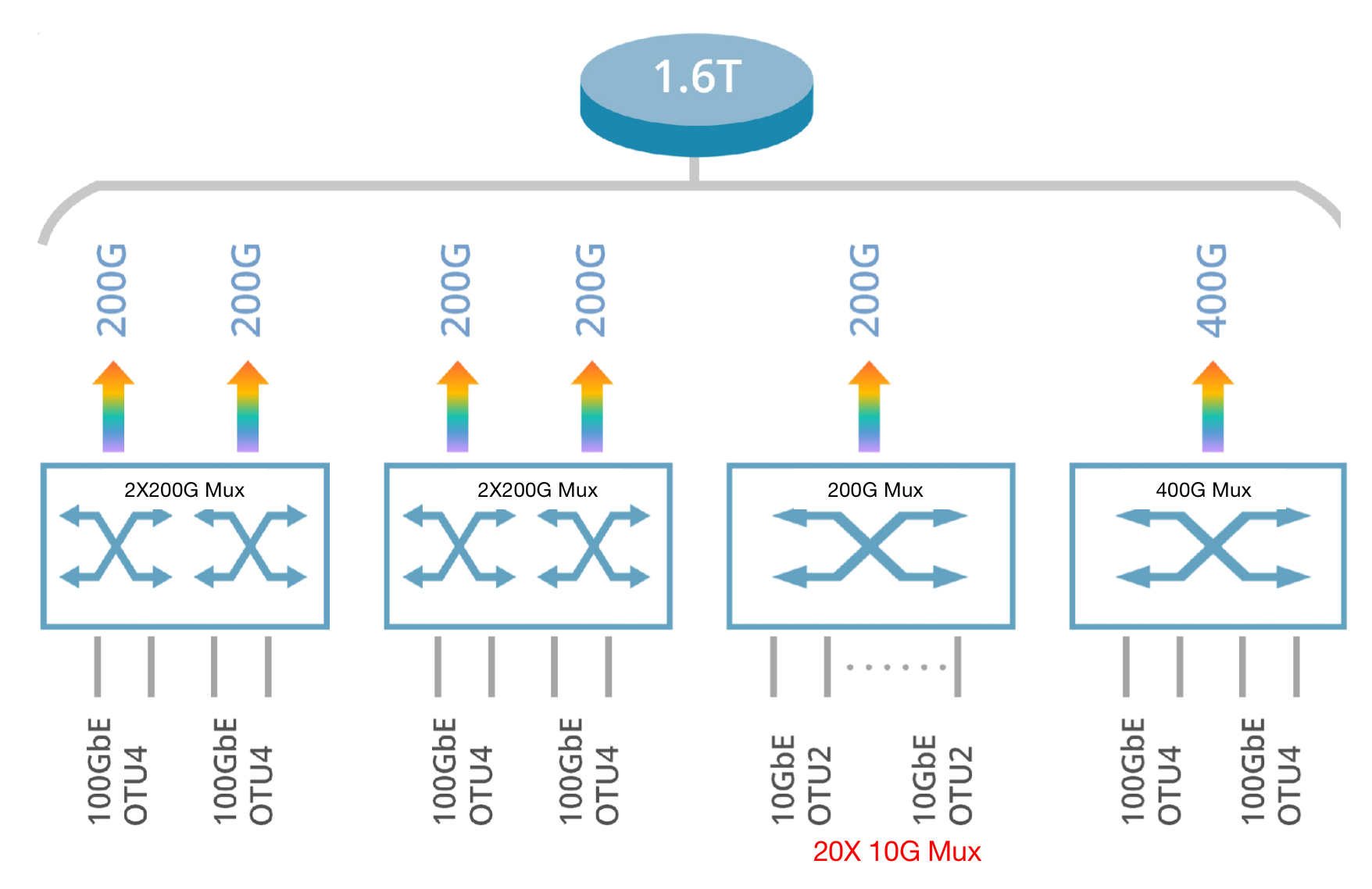

CLIENT-SIDE: 10GBE, 100GBE, OTU2, OTU4, UP TO 16X 100GE/OTU4; LINE SIDE: 8X 200G DWDM or 4X 400G DWDM
