OIF-400GZR-01.0. 400G 16QAM, DCI ( Data Center Interconnection), IP over DWDM,

400G QSFP-DD DCO

Home>Products>DWDM DCI Solution>Coherent Optical Modules

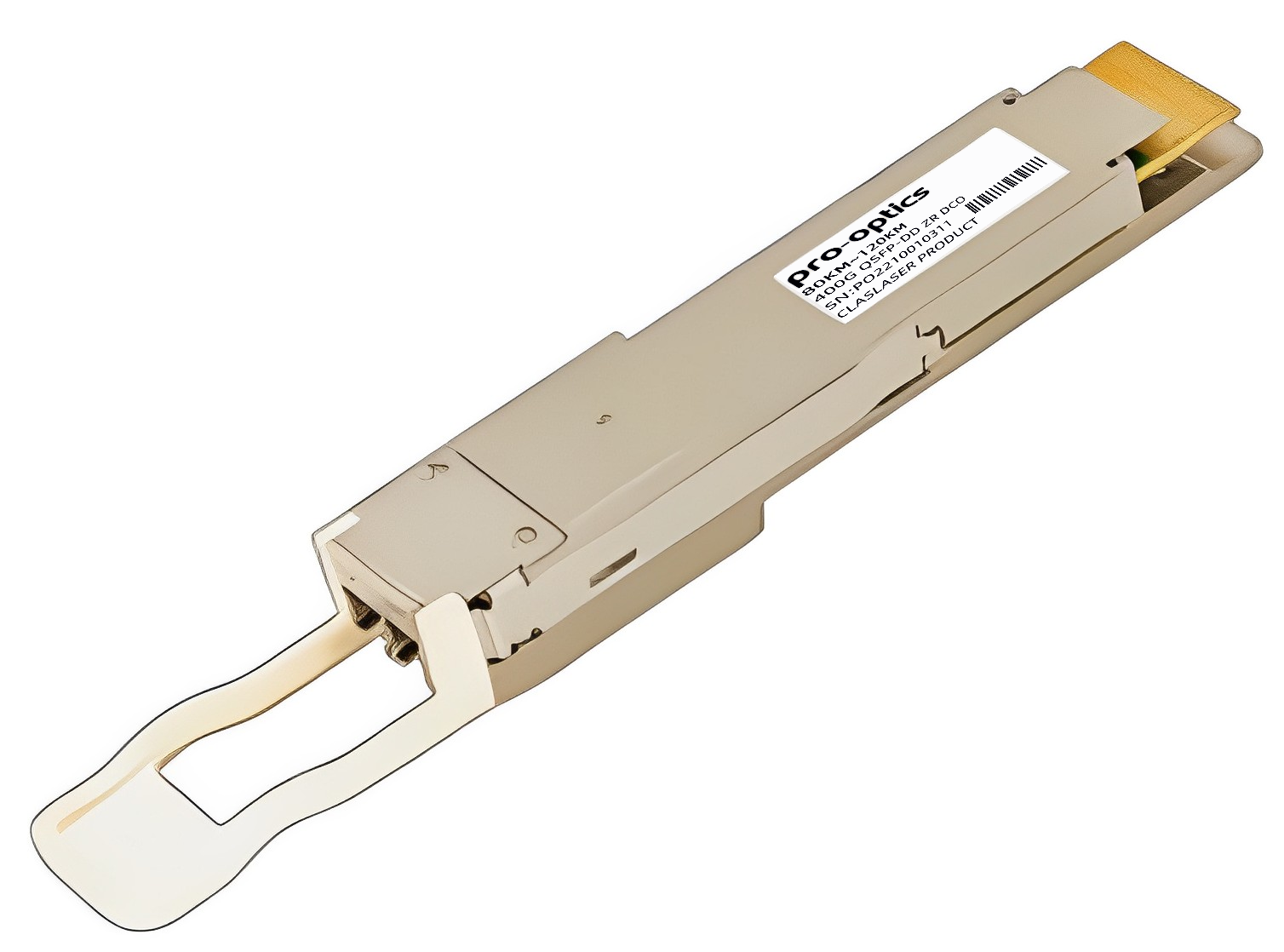

400G QSFP-DD DCO 80/120km

400G QSFP-DD DCO ZR 80KM ~ 120KM with EDFA amplifier, QSFP-DD MSA compliant, Compliant with OIF 400ZR, version 01.0, March 10, 2020, Digital diagnostic monitoring support, Maximum power consumption 16.5 W, 400G 16QAM modulation

Product Features

QSFP-DD MSA compliant

Compliant with OIF 400ZR, version 01.0, March 10, 2020

75GHz/100GHz DWDM C-band Tunable

Digital diagnostic monitoring support

Hot pluggable by 76-pin electrical interface

Maximum power consumption 16.5 W

400G 16QAM modulation

Compact size (18.4 mm x 93.4 mm x 8.5 mm)

LC duplex connector

400GBASE-R, 425 Gbps bit rate

400G-AUI-8 C2M; 8 x CEI-56G-VSR PAM-4 electrical interface

Operating case temperature: 0°C to 70°C

Single 3.3 V power supply

RoHS 2 compliant


400G QSFP-DD DCO-2.png
