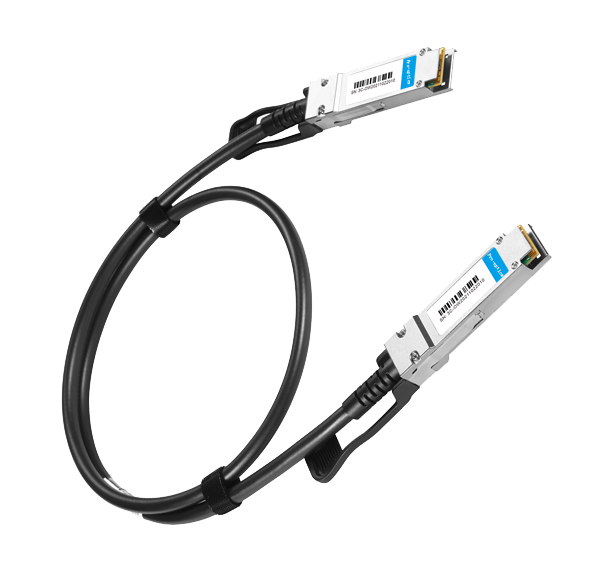

Pro-optics 's 56G QSFP+ PCC is a portfolio of passive Direct Attach Copper (DAC) cables as high-speed, cost-effective alternatives to fiber optics in 56G Ethernet applications. The 56G QSFP+ PCC cable contains 8 high-speed copper pairs, each operating at data rates of up to 16Gb/s. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system. GIGALIGHT's unique quality Passive Copper Cable (PCC) solutions provide power-efficient connectivity for short-distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

QSFP cable component: four channels with a data transfer rate of 56 Gbit/s, which can be used in 56 GBIT/s Ethernet or Infiniband QDR/FDR applications

Product features:

• Meet MSA SFF-8436 standard

• Supports 56Gbps(4channel @16Gbps) data transfer rate

• supports passive 7m transmission distance

• 26~30AWG variety cable size selection

• Provides three times the SFP+ port density interconnection

• Reliable ring pull buckle design

• RoHS and low smoke halogen-free products are available

• Lower cost and less power consumption than short distance fiber connection solutions

QSFP Passive Cable Assembly Length Recommendation
