400G QSFP-DD Muxponder

Product Description

The optical connection between the metro area and the data center used to be the cutting-edge data rate, but it has now been surpassed by the higher 400G DWDM rate. The growing interest in cloud computing, video streaming, and data replication between sites is driving the demand for more bandwidth in enterprise data centers and networks. Similarly, increasing media consumption and consumer demand for a better internet experience necessitates greater broadband communication capacity in service provider networks. As a result, enterprises and service providers worldwide recognize the need to upgrade their solutions to 400G.

In a 100G configuration, the most important factors are low-cost multiplexing and efficient bandwidth utilization, making the open Muxponder the ideal solution. The 400G OpenZR+DWDM transceiver product configuration is perfect for cost-effectively multiplexing 100G services at the user end. The device supports 4x100G and QSFP28 on the client side, and 1x400G and QSFP-DD on the line side. This includes support for a flexible range of QSFP28 client types (both with and without FEC) and line-side 400ZR+DWDM optics.

Feature

• Layer 1 Muxponder

• Support for 4 x QSFP28 ports for client signals

• Support for a flexible range of QSFP28 client type (SR4, LR4, CWDM4, ER4, ZR4)

• Support for one line module of Coherent 400ZR+ QSFP-DD or coherent 100G ZR+ QSFP-DD

• Support for multiple different line rates to ensure optical reach

• Low power consumption

• Low latency Design

TRAFFIC COMBINATIONS

CLIENT LINE SPEED Modulation

4×100GbE 400G 16QAM

3×100GbE 300G 8QAM

2×100GbE 200G QPSK

1×100GbE 100G QPSK

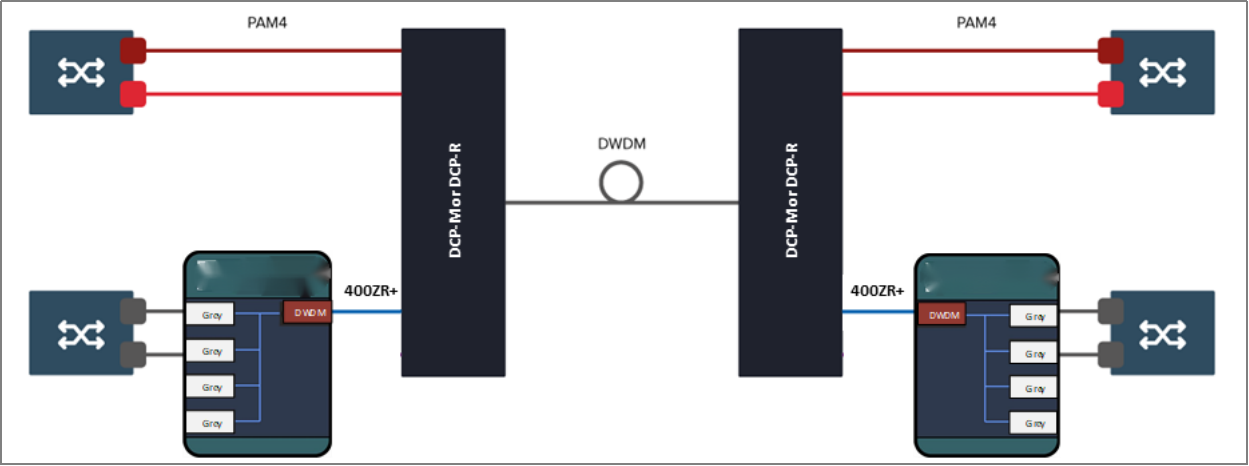

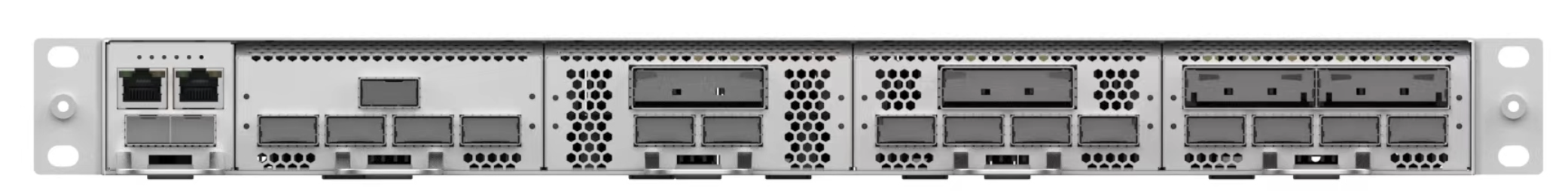

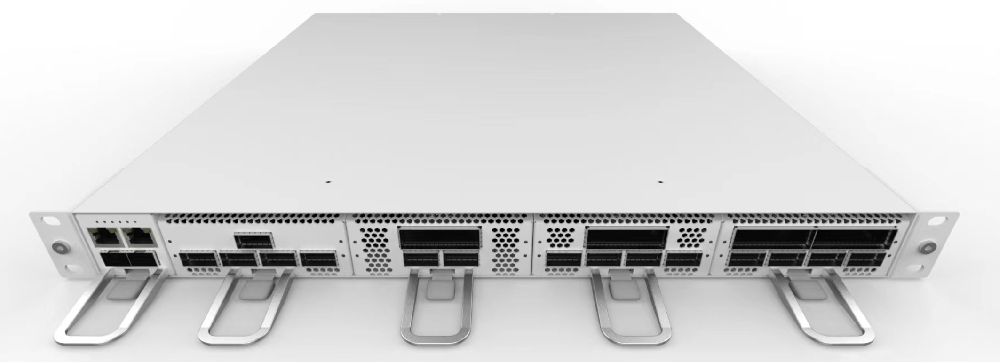

Product Appearance

Technical Index

Product Configuration

• PRODUCT CONFIGURATION

• 400G Muxponder 4x 100GbE, QSFP28 to QSFP-DD

Size

• 44×205×270mm (W×D×H)

• 1.73×8.07×10.63”

• Weight: 1.8KG/4lbs

VISUAL INDICATORS

Status LED Power & Alarm status

• Client LED: 4 x individual client

• Tx/Rx Line LED: Line Tx/Rx

Client Side

• Support 4×QSFP28 100G SR4/LR4/ZR4/ER4/CWDM4

• Support 4×QSFP28 100G DR/ER/LR/FRX/LRX

Line Side

• 400G OpenZR+ QSFP-DD

• 100G ZR QSFP-DD

Device Management

• Support SSH/CLI, SNMP, NTP, TFTP, TACACS+, Radius, Syslog

• Subsequent support version：REST, NetConf

SOFTWARE UPGRADES

• Traffic hitless software upgrades

POWER CONSUMPTION

Typical consumption at 220VAC

• Normal operation: 56W

• Max during power up: 64W

SW FEATURES

• Client In-loop and Client

• Out-loop Link Loss Forwarding

• Performance Monitoring

LATENCY

• SO-TQSFPDD4CCZRP:

400G CFEC: 8μs

400G OFEC: 5μs

300G OFEC: 6μs

200G OFEC: 7μs

100G OFEC: 11μs

• Max 1μs for the card

WORK ENVIRONMENTAL

• Operating temp: 0°C to +45°C

• Cooling: Front to back

• Humidity: 5% to 85%

• Altitude: 3000m (10000ft)

• Metro DCI

• 4×100G Muxponder, 1RU plug-in unit, 100G Ethernet

• Client port: QSFP28

• Line port: QSFP-DD
