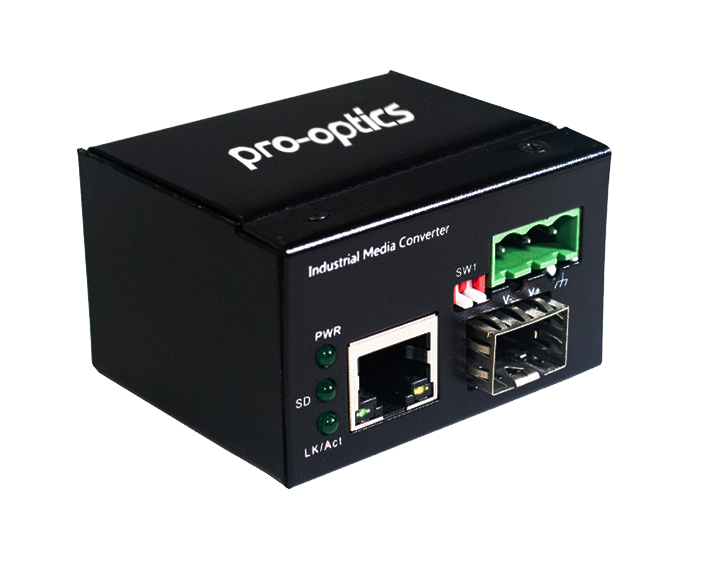

Small Type 10/100M Industrial Media Converter

Pro-optics-LINK Pro-optics-SFP0101H is an small type industrial-grade Fast media converter, featuring one 10/100BASE-T copper ports and one 100BASE-X SFP/SC fiber port and packed in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C and a wide-ranging redundant power system (9~48V DC or 24V AC), the Pro-optics-SFP0101H provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration. this industrial-grade also support 9K jumbo frame and Support LFP fucntion

Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the Pro-optics-SFP0101H ’s SFP slot supporting 100BASE-FX, SFP modules, and more can reach a transmission distance of up to 120km.
Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) for enterprises becomes so easy to users when long-distance deployment is employed. The Pro-optics-SFP0101H can handle extremely large amounts of data in a secure topology linking to a metro switch, backbone or high-capacity server.

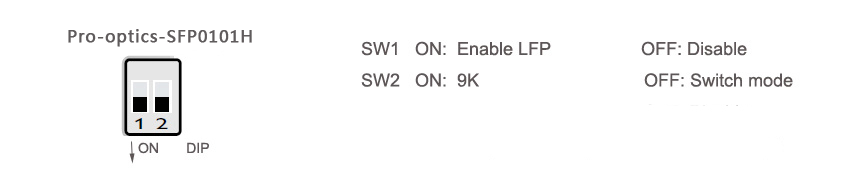

DIP Setting


Small but Tough

The Pro-optics-SFP0101H is specifically designed with durable components and strong housing to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the Pro-optics-SFP0101H is ideal for service providers, campuses and public areas to deploy outdoor wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.

Dual Power Input for High Availability Network System

The Pro-optics-SFP0101H features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the Pro-optics-SFP0101H via power supply 2 alternatively without any loss of operation.

Low Power Consumption for Green Networking

The Pro-optics-SFP0101H, adopting the advanced green networking technology, provides cable length power saving, and link-up and link-down power saving. These features make the Pro-optics-SFP0101H consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.


Robust Protection

The Pro-optics-SFP0101H provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Protocol Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Flow Control

IEEE802.3x flow control, back press flow control

Switching Performance

Forwarding Rate: 0.446MppsTransmission Mode: Store and ForwardPacket Buffer Size: 1MSystem Exchange Bandwidth: 0.6Gbps


MAC Table Size: 1K

Delay Time: < 3μs

Ethernet Port

10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation

Fiber Port

100Base-X SFP slot

LED Indicator

Power Indicator: PWRFiber Port Indicator: SDFiber Signal Indicator: LK / ACT

DIP Switch

Link Fault Pass Through(LFP)Converter Mode, Switch Mode

Power Supply

Input Voltage: DC5-60V and AC18-36VConnector: 3 bit 5.08mm removable terminal blockFull Load: <2WProtection Mechanism: overload protection, reverse connection protection, redundancy protection

Mechanical Structure

Shell: IP40 protection, aluminum-alloy housingDimension: 59*36*49mm( L*W*H )Weight: 150gInstallation: DIN-Rail mounting, wall mounting

Operating Environment

Operating Temperature: -40 - 75°CStorage Temperature: -40 - 85°CAmbient Relative Humidity: 5% - 95% (non-condensing)

Industry Standards

EMI:FCC Part 15 Subpart B Class A, EN 55022 Class AEMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact)EN61000-4-3 (R/S), Level 3 at 10V/mEN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port)


EN61000-4-5 (Surge), Level 4 at 4kV

EN61000-4-6 (CS), Level 3 at 10V/m

EN61000-4-8, Level 5 at 100A/m

Shock:IEC 60068-2-27

Free Fall:IEC 60068-2-32

Vibration:IEC 60068-2-6




>100,000 Hours
