10/100/1000M Industrial Ethernet Switches

1-TX + 1-FX 10/100M IES

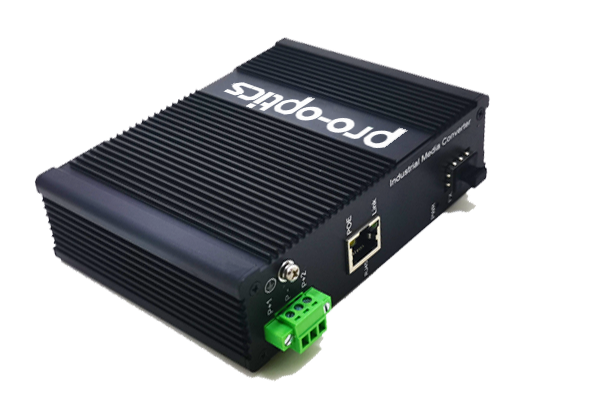

* Support 1 100Base-FX fiber ports(ST/SC/FC optional) and 1 100Base-T copper ports * Support dual power supply, input voltage: 12~48VDC ( 48~57VDC POE) * Support -40~75℃ wide operating temperature range Pro-optics-DU/WDM-100 series are 2-port 100M SC/SFP unmanaged industrial Ethernet switches. The series provide 100M copper ports, 100M fix SC/FC/ST interface. They also adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different application scenes.

Highly Convenient and Feasible Industrial Robust Switch
Pro-optics-LINK has upgraded two models named Pro-optics-DU-100 and Pro-optics-WDM-100 for use in environments with wide operating temperature. Pro-optics-DU-100 the fiber interface is Duplex. And Pro-optics-WDM-100 the fiber is Simplex. Pro-optics-DU-100 and Pro-opticsI-WDM-100 also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

Flexibly Extendable Distance
They(the Pro-optics-DU-100 and Pro-opticsI-WDM-100) each include one 10/100Base-TX auto-negotiation ports and one 100Base-FX ports. The fiber distance can choice form 0-2km via multi-Mode fiber and 10-120km via the Single-Mode fiber.

Easy Installation and Wide Range of Power Usages
The Pro-optics-DU-100 and Pro-optics-WDM-100 are designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

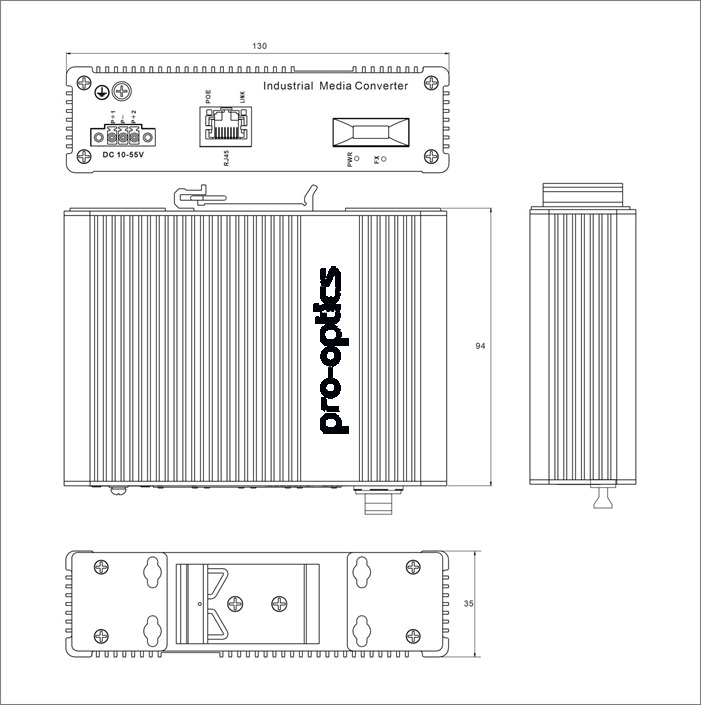

Products Size

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX
Interface	Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional
LED Indicator	Running Indicator, Port Indicator, Power Supply Indicator
Switch Property	Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 1.6G Switch time delay: <10μs
Power Requirement	12~48VDC, 4-pin 7.62mm pitch terminal blocks dual power supply redundancy, non-polarity, reverse connection protection
Environmental Limit	Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
Physical Characteristic	Housing: IP40 protection, metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 130mm×35mm×94mm
Industrial Standard	IEC 61000-4-2 (ESD), Level 4 lAir discharge: ±15kV lContact discharge: ±8kV IEC 61000-4-4 (EFT), Level 4 lPower supply: ±4kV lEthernet port: ±2kV lRelay: ±4kV IEC 61000-4-5 (Surge), Level 4 lPower supply: common mode ±4kV, differential mode±2kV lEthernet port: ±2kV lRelay: common mode±4kV, differential mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE, FCC, RoHS
Warranty	5 years

Pro-optics-DU-100-13-2	1 10/100M TX +1 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-40 ~ 75 degrees C operating temperature)
Pro-optics-DU-100-13-20	1 10/100M TX+1 100FX Port Single-mode Industrial Ethernet Switch - 20km (-40 ~ 75 degrees C operating temperature)
Pro-optics-DU-100-13-80	1 10/100M TX+1 100FX Port Single-mode Industrial Ethernet Switch - 80km (-40 ~ 75 degrees C operating temperature)
Pro-optics-DU-100-13-120	1 10/100M TX+1 100FX Port Single-mode Industrial Ethernet Switch - 120km (-40 ~ 75 degrees C operating temperature)
Pro-optics-WD-100-35-20	1 10/100M TX+1 100FX Port Single-mode single Fiber 1310T/1550R Industrial Ethernet Switch - 20km (-40 ~ 75 degrees C operating temperature)
Pro-optics-WD-100-53-20	1 10/100M TX+1 100FX Port Single-mode single Fiber 1550T/1310R Industrial Ethernet Switch - 20km (-40 ~ 75 degrees C operating temperature)
Pro-optics-SFP0101H	1 10/100M TX+1 100FX SFP slot Industrial Ethernet Switch (-40 ~ 75 degrees C operating temperature)

With POE Funcation

Pro-optics-PD-100-13-2	1 10/100M TX +1 100FX Port Multi-mode Industrial Ethernet Switch ,802.3af /at - 2km (-40 ~ 75 degrees C operating temperature)
Pro-optics-PD-100-13-20	1 10/100M TX+1 100FX Port Single-mode Industrial Ethernet Switch ,802.3af /at- 20km (-40 ~ 75 degrees C operating temperature)
Pro-optics-PD-100-13-40	1 10/100M TX+1 100FX Port Single-mode Industrial Ethernet Switch ,802.3af /at- 40km (-40 ~ 75 degrees C operating temperature)
Pro-optics-PD-100-13-80	1 10/100M TX+1 100FX Port Single-mode Industrial Ethernet Switch ,802.3af /at- 80km (-40 ~ 75 degrees C operating temperature)
Pro-optics-PD-100-13-120	1 10/100M TX+1 100FX Port Single-mode Industrial Ethernet Switch ,802.3af /at- 120km (-40 ~ 75 degrees C operating temperature)
Pro-optics-PW-100-35-20	1 10/100M TX+1 100FX Port Single-mode single Fiber 1310T/1550R Industrial Ethernet Switch - 20km ,802.3af /at (-40 ~ 75 degrees C operating temperature)
Pro-optics-PW-100-53-20	1 10/100M TX+1 100FX Port Single-mode single Fiber 1550T/1310R Industrial Ethernet Switch - 20km ,802.3af /at (-40 ~ 75 degrees C operating temperature)
Pro-optics-PSE0101H	1 10/100M TX+1 100FX SFP slot Industrial Ethernet Switch ,802.3af /at (-40 ~ 75 degrees C operating temperature)

1-TX + 1-FX 10/100M IES

Pro-optics-DU-100-13-2

Pro-optics-DU-100-13-20

Pro-optics-DU-100-13-80

Pro-optics-DU-100-13-120

Pro-optics-WD-100-35-20

Pro-optics-WD-100-53-20

Pro-optics-SFP0101H

With POE Funcation

Pro-optics-PD-100-13-2

Pro-optics-PD-100-13-20

Pro-optics-PD-100-13-40

Pro-optics-PD-100-13-80

Pro-optics-PD-100-13-120

Pro-optics-PW-100-35-20

Pro-optics-PW-100-53-20

Pro-optics-PSE0101H
