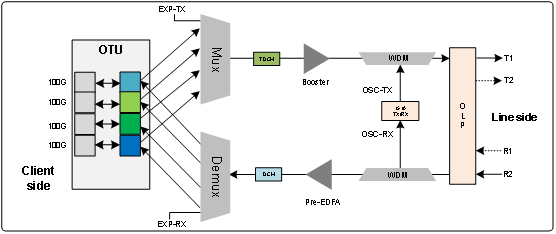

The 16x 100GE DWDM 1U BOX is an integrated wavelength division transmission platform designed for point-to-point, dual-fiber transmission. It supports 16 × 100G business channels over distances up to 140 km without the need for relay stations. Utilizing advanced coherent transmission technology, the system internally integrates critical modules including OTU, EDFA, OLP, and MUX.

Key features include:

High Capacity and Scalability: Supports out-of-band OSC monitoring, enabling seamless stacking and capacity expansion.
User-Friendly Design: The switch-style appearance simplifies fiber connections and system debugging, making it an ideal solution for data industry customers.
Enhanced Operational Efficiency: Designed for easy business activation and streamlined daily maintenance.

This platform not only meets demanding transmission requirements but also reduces installation complexity, helping customers quickly activate and manage their networks.

Physical Properties

Feature	Description
Chassis Size (mm) (Height * Width * Depth)	44mm（H）446mm（W）480mm（D） (Without hanging ears and front and rear pull rings)
Chassis Size (mm) (Height * Width * Depth)	1U high, 19 inches wide, 1 pair of hanging ears
Can be inserted into the cabinet	19 inch cabinet
Power Supply	1+1 power supply backup AC Input：90～260V，47～63Hz DC Input：36V～75V
Heat Dissipation	Front inlet air，Rear inlet air
Working Environment	Working Temperature：-40℃～45℃ Storage Temperature：-40℃～80℃ Relative Humidity：5%～95%，No Condensation
Maximum Power Consumption	AC：350W DC：400W
Management Port	2xRJ45 network port, 2xSFP optical port
Service Port	4/8/12/16xQSFP Optical port，8xLC/UPC Optical fiber fitting port
Management	Support WEB 、SNMPmanagement
In-Band Management	In-band optical layer OSC channel

Technical Parameter

Feature	Description	Unit
Business Capacity	400/800/1200/1600	Gbps
Access Service Speed	103/112	Gbps
Distance	0~140	KM
Line loss tolerance	≤30@with OLP, ≤35@without OLP	dB
Channel Space	100	GHz
Gain	BA:14 PA:22	dB
OSC Wavelength	1510	nm
Protection Method	1+1	-
Switch time	＜15	ms
Polarization Mode Dispersion	≤0.5	ps
Polarization Dependent Gain	≥0.5	dB
Return Loss	≥40	dB

Product Features

Support 4/8/12/16 * 100GE or OTU4 business access
Support stacking and expansion
Supports bidirectional transmission and link OLP protection
Support system automatic configuration, business performance visualization, and intelligent fault analysis

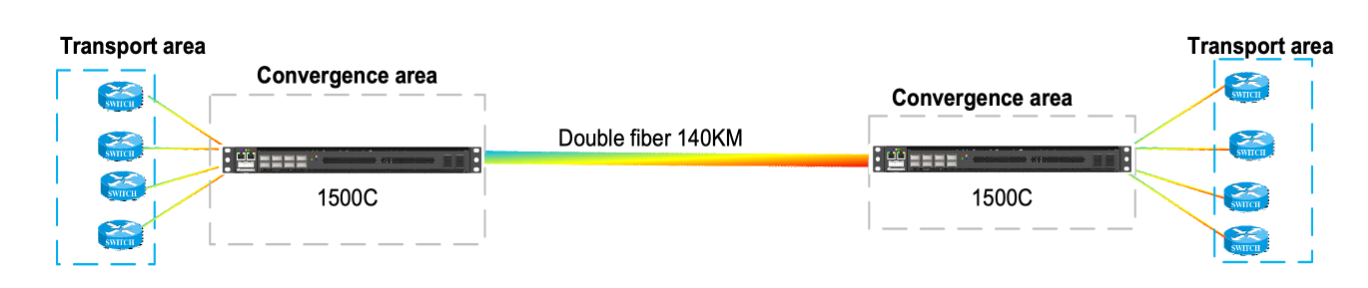

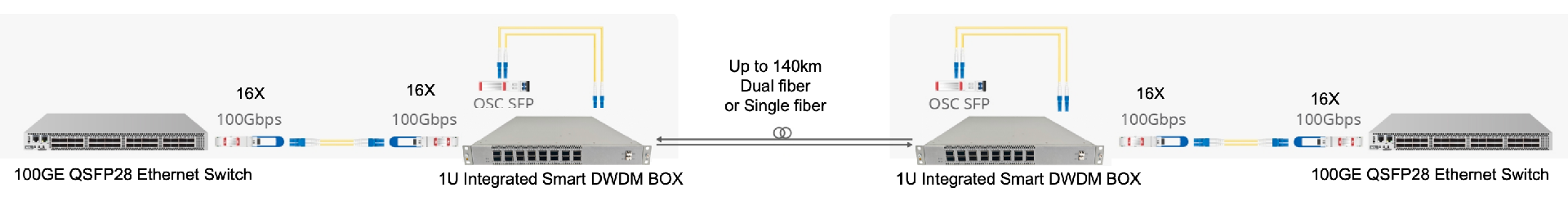

Support point-to-point relay free transmission applications from 0 to 140KM

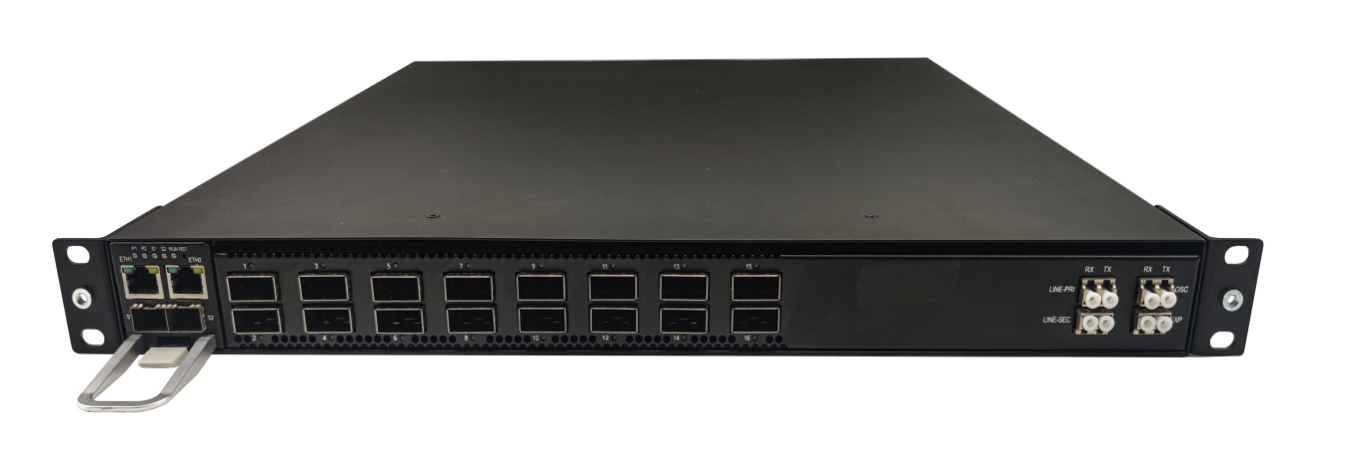

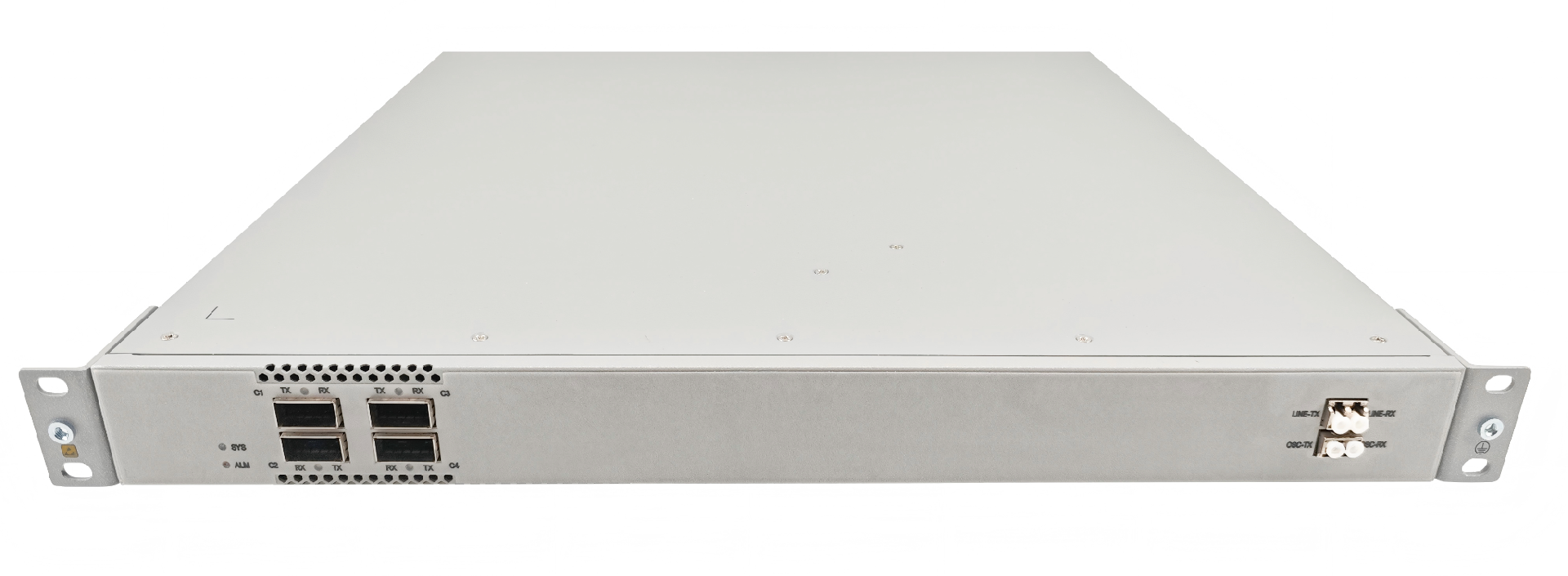

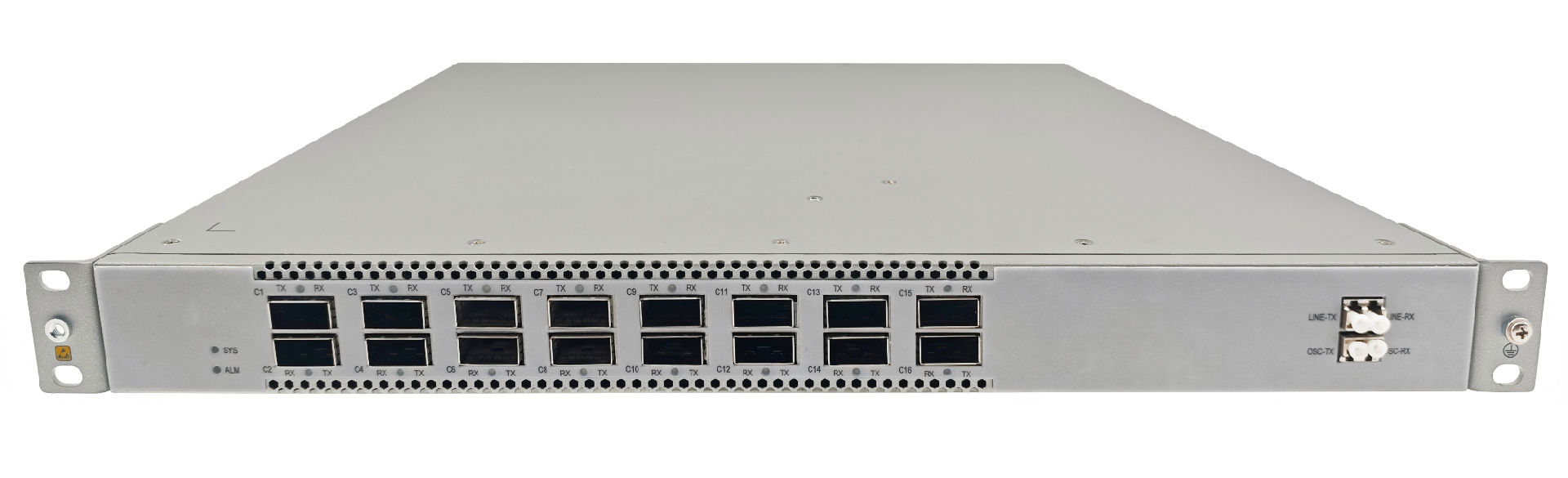

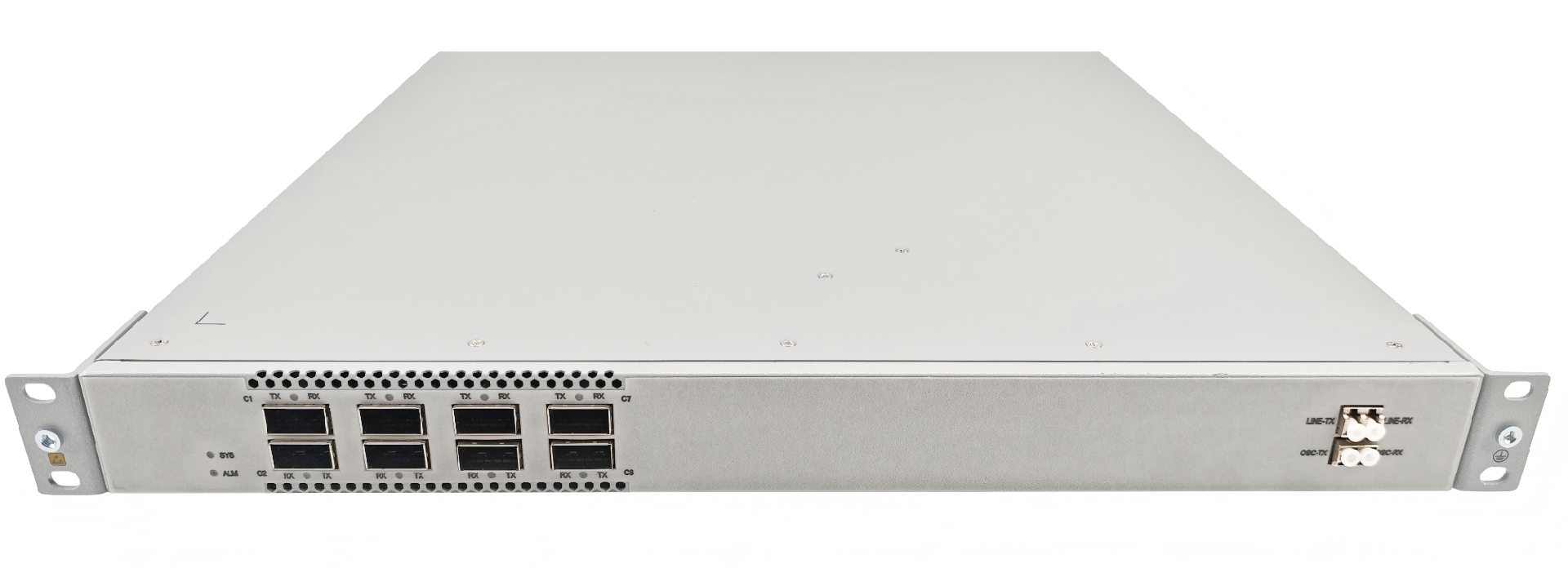

DWDM 1U BOX.png

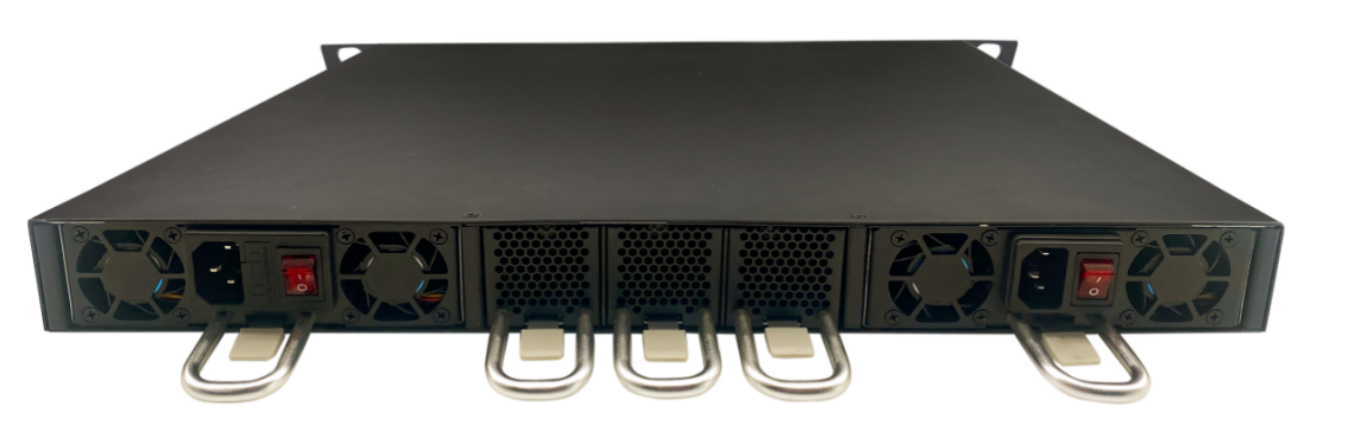

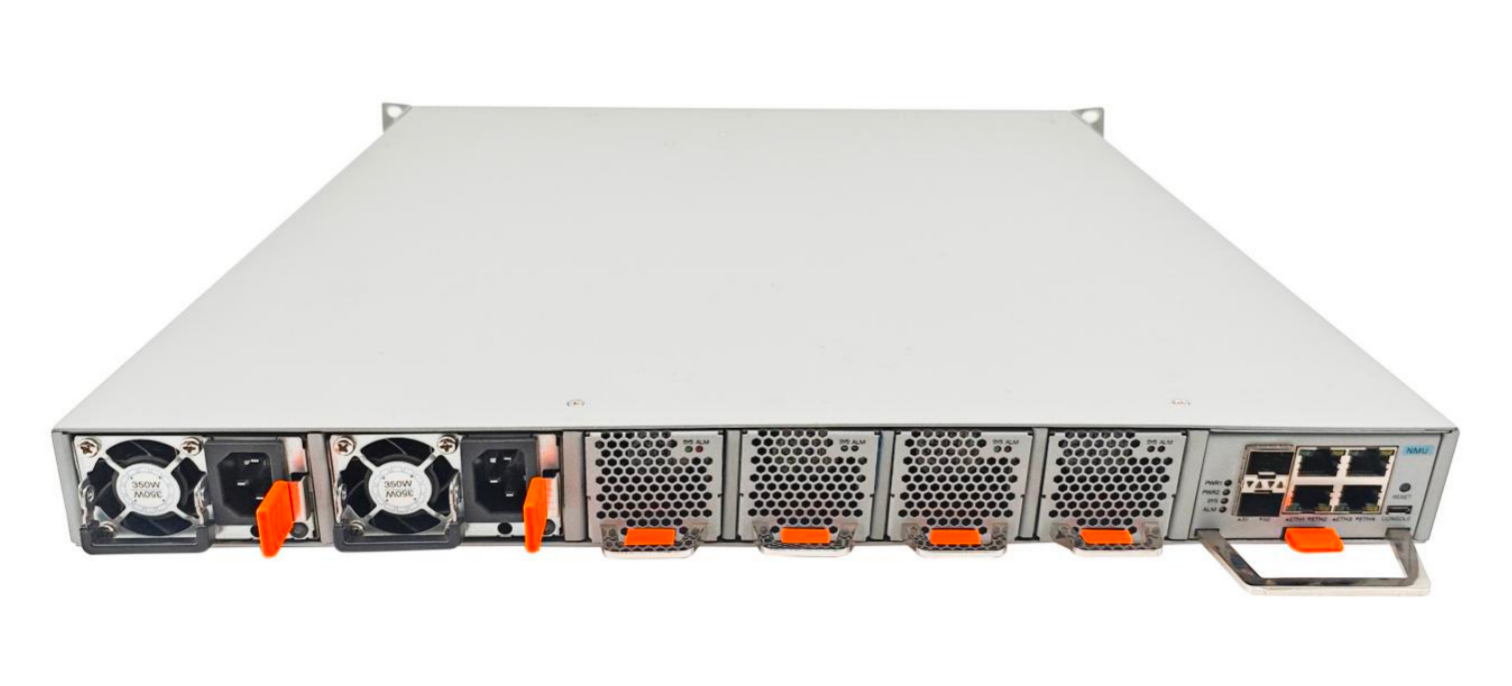

DWDM 1U BOX back.png

Order information

Choose and buy items	Model
Choose and buy items	DWDM04C	DWDM08C	DWDM12C	DWDM16C
Transmission capacity 4*100G	√
Transmission capacity 8*100G		√
Transmission capacity 12*100G			√
Transmission capacity 16*100G				√
Support line detection function	√	√	√	√
Support dispersion adaptation	√	√	√	√
Support OSC network channel	√	√	√	√
Support for optical power amplification and automatic adjustment	√	√	√	√
Support the line protection function	√	√	√	√
Double fiber transmission	√	√	√	√
DC power supply * 1	√	√	√	√
AC power supply * 1	√	√	√	√
Note: The power supply can be ordered together
