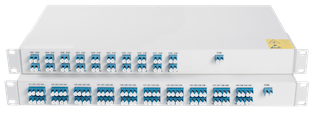

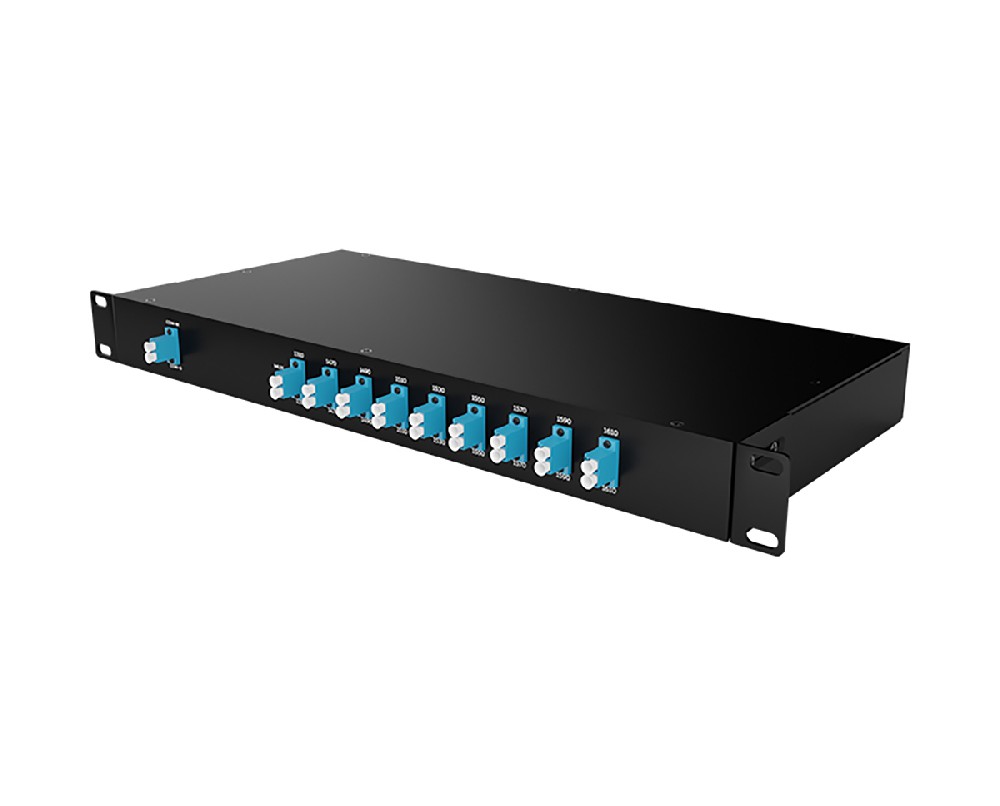

1U Rack 48CH DWDM MUX/DEMUX

1 U 19” Rach mount 48CH DWDM 100GHz（C17-C64） Dual fiber MUX & DEMUX 1U RACK;LC / UPC Duplex connector;1% Monitor port for Tx and Rx, easy troubleshooting for DWDM system;ITU G.694.1 100GHz ITU grid, 0.8nm spacing;Based on Athermal AWG DWDM module technology;Gaussian Typical insertion loss ＜4.0 dB;Flat-top Typical insertion loss ＜6.0 dB

Features

  • 1 U 19” Rach mount

  • 48CH DWDM 100GHz（C17-C64） Dual fiber MUX & DEMUX 1U RACK

  • LC / UPC Duplex connector

  • 1% Monitor port for Tx and Rx, easy troubleshooting for DWDM system

  • ITU G.694.1 100GHz ITU grid, 0.8nm spacing

  • Based on Athermal AWG DWDM module technology

  • Gaussian Typical insertion loss ＜4.0 dB

  • Flat-top Typical insertion loss ＜6.0 dB

  • Telcordia GR-1209-CORE and CR-1221-CORE compliant

  • 1% Monitor port for Tx and Rx, ensutes easy troubleshooting without downtime

  • RoHS6 compliant


Specifications

Parameters

Unit

Specification

Pass Band Type

/

Gaussian

Flat-top

Grade

/

Typ

Channel Number

/

48

Channel Spacing

GHz

100

Wavelength Accuracy

nm

   0.05

1dB Pass Band

nm

≥0.2

≥0.38

3dB Pass Band

nm

≥0.4

≥0.58

Insertion Loss1

dB

≤4.0

≤6.0

Ripple

dB

≤1.5

≤0.5

Uniformity

dB

≤1.5

≤1.5

Adjacent Crosstalk

dB

≥29

≥23

Non-adjacent Crosstalk

dB

≥35

≥29

Total Crosstalk

dB

≥21

Polarization Dependent Loss(PDL)

dB

≤0.5

PMD2

ps

≤0.5

Chromatic Dispersion2

ps/nm

±20

Return Loss

dB

≥40

Operation Temperature

℃

-5～75

Storage Temperature

℃

-40～+85

Package

mm

483*245*44(19’’ Rack Mount Box)



Mechanical Dimensions

Front view


19” Rack (Rack-Mountable483*245*44mm)


ITU Channel Guiding



ITU Channel (xx or yy)

Monitoring end

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

Wavelength  (nm)

1310

1563.863

1563.047

1562.233

1561.419

1560.606

1559.794

1558.983

1558.173

1557.363

1556.555

1555.747

1554.940

1554.134

1553.329

1552.524

1551.721

1550.918

1550.116

1549.315

1548.515

1547.715

1546.917

1546.119

1545.322







ITU Channel (xx or yy)

Monitoring end

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

Wavelength  (nm)

1310

1544.526

1543.731

1542.936

1542.142

1541.349

1540.557

1539.766

1538.976

1538.186

1537.397

1536.609

1535.822

1535.036

1534.250

1533.465

1532.681

1531.898

1531.116

1530.334

1529.553

1528.773

1527.994

1527.216

1526.438
