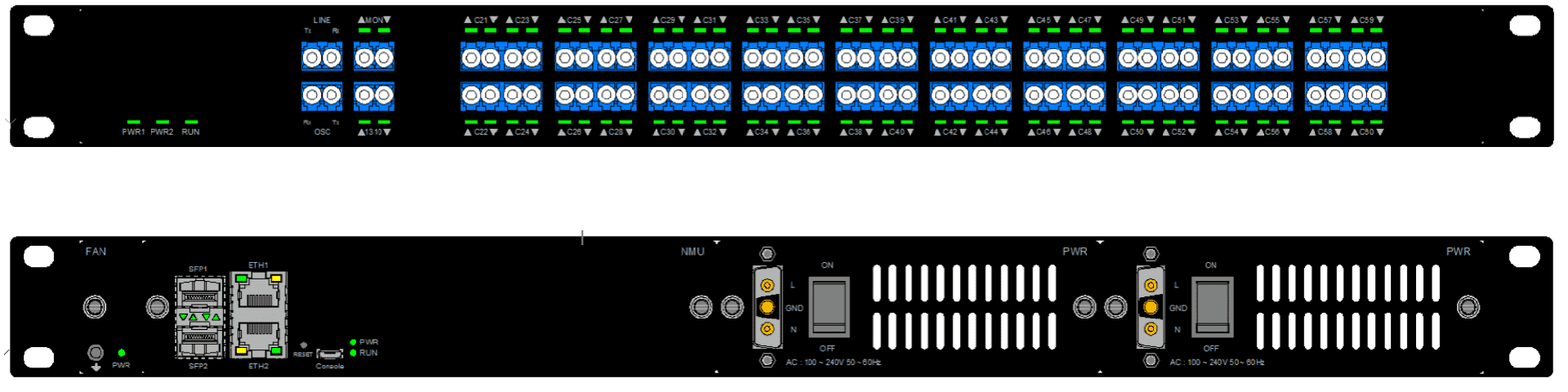

1U 40CH DWDM OLS

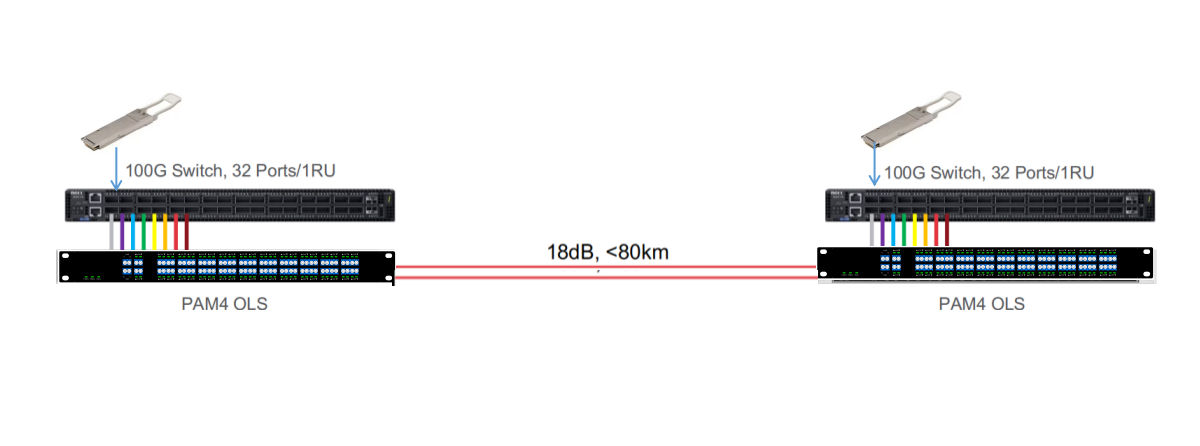

1U Chassis intelligent optical multiplexing system is a standardized and open intelligent service transmission platform, which meets various service network scenarios such as access network/metro network/backbone network optical service transmission, data center large-traffic data transmission, and 5G fronthaul network data backhaul. The system integrates various optical fiber communication technologies such as WDM, EDFA, AWG, electrically tunable TDCM, MEMS, optical performance monitoring and analysis, OTDR, etc. (service, link, devices) monitoring capability, suitable for different types of customers, and greatly saves user management and maintenance costs.

1U Chassis intellegent optical multiplexing system is a standardized and open intelligent service transmission platform, which meets various service network scenarios such as access network/metro network/backbone network optical service transmission, data center large-traffic data transmission, and 5G fronthaul network data backhaul. The system integrates various optical fiber communication technologies such as WDM, EDFA, AWG, electrically tunable TDCM, MEMS, optical performance monitoring and analysis, OTDR, etc. (service, link, devices) monitoring capability, suitable for different types of customers, and greatly saves user management and maintenance costs.





Characteristics

  • Support DWDM signal access of various coding technology types: PAM4 (40G/100G),NRZ(1-32G), Coherent (QPSK/8QAM/16QAM);

  • Supports dispersion/power dynamic adaptive compensation;

  • Support optical fiber cable link length, fault monitoring and location;

  • Support 1+1 optical line protection;

  • Support 40CH TX/RX, 1310 TX/RX, COM port power real-time high-precision monitoring;

  • Support 1310nm 40/100G expansion channel, OSC channel;

  • The device panel supports visual port service power status and yellow-green dual-color LED alarm;

  • Realize the centralized visualization and unified management of 40 service ports’ optical power;

  • Support Web/SNMP management;



Performance Parameter

Parameter

Unit

Performance Index

Optical Fiber Type


G.652SMF-28

Service Access Type


Any DWDM signal

Working Channel

CH

40

Link Power Bargin @40CH

dB

PAM423

NRZ30

Coherent34

Sourroundings Parameter

Working Temperature

℃

-10~ 60℃

Storage Temperature

℃

-40℃~ 85℃

Relative Moisture


5% ~ 95%  no condensation)

Size

1U

mm

482.6W×370D×44.5H

Power Supply

AC

100~240,50~60hz

DC

36~72

Power Consumption

1U

100Max




Recommended
