Active Optical Cables (AOC)

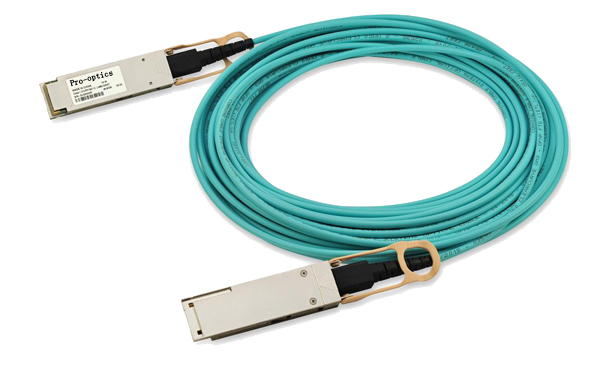

QSFP28 active optical cables (AOC) are high-performance active optical cables with bi-directional signal transmission and aggregate 100-Gbps bandwidth for both Infiniband EDR and Ethernet 100G-SR4 applications. Compared to conventional copper cables, longer and lighter optical cables enable the ease of complicated data-center cablings. The AOCs utilize multimode fiber with 850-nm VCSELs and PIN PDs. The certificated cables have superior signal integrity and bit error rate, which enables reliable operation performance.

Features

• Ethernet and InfiniBand electrical compliance
• Compliant with the 100G Ethernet IEEE802.3ba 100GBase-SR4 standards
• High-density QSFP28 connector (SFF-8436)
• Low weight for high-port-count architectures
• Allow different equipment connect by configuring each end of the cable

Specification

Vendor name	3C-LINK	Optcore Part Number	3C-100G-CU15M
Form Factor	QSFP28 AOC	Data Rate	100 Gb/s
Wavelength	850 nm	Supply Voltage	3.3V
Cable Color	Aqua	Fiber Type	OM3/OM4 MMF
Cable Length	15 meter (49 ft)	Cable Diameter	3 mm
Minimum cable bend radius	25 mm	Cable Jacket Type	LSZH
Connector	QFP28 to QSFP28	Digital Diagnostic Monitoring	Yes
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C	Weight	0.25 kg
Application	InfiniBand SDR, DDR, QDR 100GBASE-SR4 Proprietary Cluster Interconnect Networking, SAN Hubs, switches, routers, servers, NIC cards	Compliance	RoHS

* Supports 100Gbps data rate links up to 70m/100m via OM3/OM4
* VCSEL array transmitter and PIN array receiver
* Low power consumption of max 3.5W
* Bit Error Ratio (BER): 10-12
* Ethernet for 100GBASE-SR4
* Infiniband EDR, FDR, QDR
* HPC Interconnects
* Proprietary Interconnections

P/N	Data Rate (bps)	Description	Length (meter)	Cable Type	Power	BER
100G-AOC5M	100 G	QSFP28 to QSFP28 AOC	5	MMF	<2.5W	<10^(-12)
100G-AOC7M	100 G	QSFP28 to QSFP28 AOC	7	MMF	<2.5W	<10^(-12)
100G-AOC10M	100 G	QSFP28 to QSFP28 AOC	10	MMF	<2.5W	<10^(-12)
100G-AOC15M	100 G	QSFP28 to QSFP28 AOC	15	MMF	<2.5W	<10^(-12)
100G-AOC20M	100 G	QSFP28 to QSFP28 AOC	20	MMF	<2.5W	<10^(-12)
