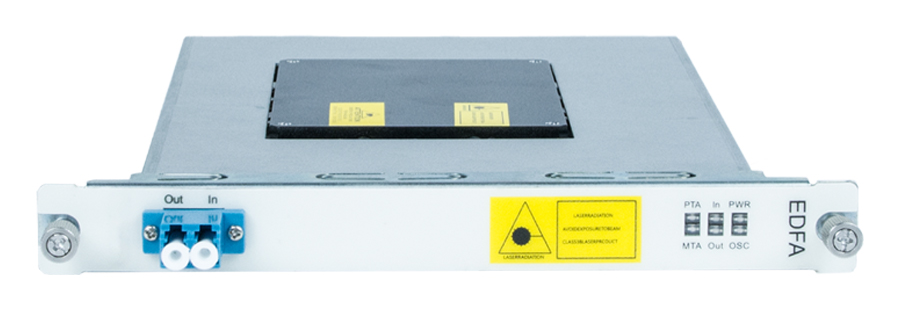

Optical Layer Systems

Supporting C-band DWDM system optical amplification.
Supporting optional OSC signal input amplification.
Supporting maximum saturated and output power +23dB, and the minimum input power -35dB.
Supporting power amplification, line amplification (secondary optical amplification), and pre-amplification.
Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface).
Monitoring: pump drive current, pump output power, pump switch, pump temperature, input optical power, output optical power, module temperature.
Supporting to set pump switch, AGC mode and APC mode (input and output optical power is adjustable).
Supporting optical monitoring port (MON).

Application: Multichannel Amplification

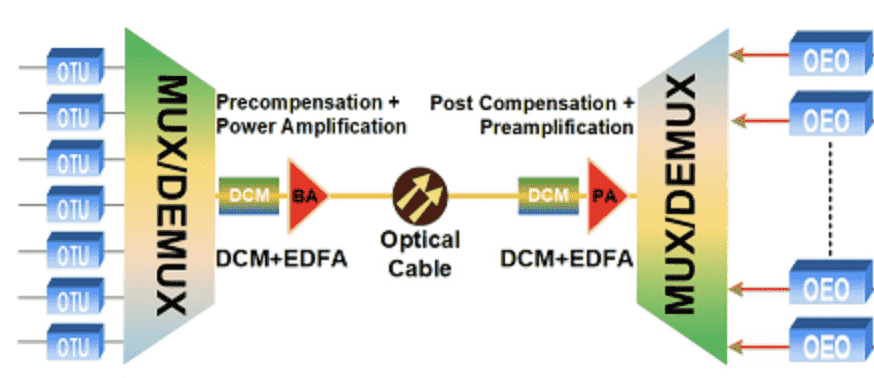

Multichannel amplification is an optical amplifier device (DWDM EDFA) connected in series in service line, which can amplify multiple wavelength optical signals in a single core optical fiber uniformly.

Product Description	Input power range, dBm	Max Noise Figure, dB	Max Gain Flatness, dB	Fiber type: Erbium or Ytterbium	Pump laser: 980nm or 1480nm	Number of pump lasers: 1 or 2
EDFA Booster. Saturation 20/Gain 16(Card)	-15~5	5.5	19	Erbium	980	1
EDFA Booster. Saturation 20/Gain 20(Card)	-15~5	5.5	23	Erbium	980	1
EDFA Booster. Saturation 20/Gain 25(Card)	-15~5	5.5	28	Erbium	980	1
EDFA Booster. Saturation 20/Gain 30(Card)	-15~5	5.5	33	Erbium	980	1
EDFA Booster. Saturation 23/Gain 16(Card)	-15~5	5.5	19	Erbium	980	2
EDFA Booster. Saturation 23/Gain 20(Card)	-15~5	5.5	23	Erbium	980	2
EDFA Booster. Saturation 23/Gain 25(Card)	-15~5	5.5	28	Erbium	980	2
EDFA Booster. Saturation 23/Gain 30(Card)	-15~5	5.5	33	Erbium	980	2

EDFA Preamplifier. Saturation 20/Gain 20(Card)	-35~-15	5.5	23	Erbium	980	1
EDFA Preamplifier. Saturation 20/Gain 25(Card)	-35~-15	5.5	28	Erbium	980	1
EDFA Preamplifier. Saturation 20/Gain 30(Card)	-35~-15	5.5	33	Erbium	980	1
EDFA Preamplifier. Saturation 20/Gain 35(Card)	-35~-15	5.5	38	Erbium	980	1

EDFA Line amplifier. Saturation 20/Gain 20(Card)	-35~-15	5.5	22	Erbium	980	1
EDFA Line amplifier. Saturation 20/Gain 25(Card)	-35~-15	5.5	28	Erbium	980	1
EDFA Line amplifier. Saturation 20/Gain 30(Card)	-35~-15	5.5	33	Erbium	980	1
EDFA Line amplifier. Saturation 20/Gain 35(Card)	-35~-15	5.5	38	Erbium	980	1
EDFA Line amplifier. Saturation 23/Gain 20(Card)	-35~-15	5.5	23	Erbium	980	2
EDFA Line amplifier. Saturation 23/Gain 25(Card)	-35~-15	5.5	28	Erbium	980	2
EDFA Line amplifier. Saturation 23/Gain 30(Card)	-35~-15	5.5	33	Erbium	980	2
EDFA Line amplifier. Saturation 23/Gain 35(Card)	-35~-15	5.5	38	Erbium	980	2
