40G QSFP+ to 4x 10G SFP+ AOC

Home>Products>DAC & AOC & AEC>Active Optical Cables

40G QSFP+ to 4x 10G SFP+ AOC

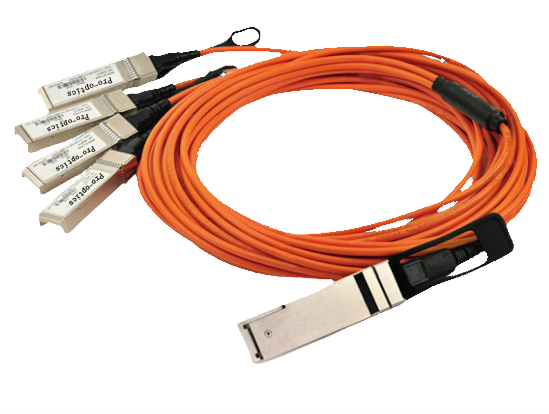

40G QSFP+ to 4x 10G SFP+ AOC breakout active optical cables are designed for 40GBASE-SR4 to 4x 10GBASE-SR Ethernet links reach up to 100m (OM3) or 150m (OM4) over Multi-Mode Fiber (MMF).

Pro-optics QSFP+ to 8LC/SC  Active Optical Cable (AOC) QDR is a high data rate parallel cable, which is designed to overcome the bandwidth limitation of traditional copper cable. It offers 4 independent data transmission channels and 4 data receiving channels via the multimode ribbon fibers, each channel is able to achieve the rate of 10Gb/s.

The 3C-LINK QSFP+ to four SFP+ 40Gbps fanout Active Optical Cable is an adaptor cable which provides connectivity between device using QSFP+ port on one end and SFP+ ports on the other end. The integrated cable transmits 4x10Gbps data on the QSFP+ side and 1x10Gbps data on the SFP+ side in duplex over a loose tube fiber with distance up to 100m. The fanout AOC is SFF-8431 (SFP+ side) and SFF-8436 (QSFP+ side) compliance.

Standard Compliance

Electrical: IBTA V2 Revision 1.2.1 and 1.3

IEEE 802.3ba
