400G/100G QSFP DAC

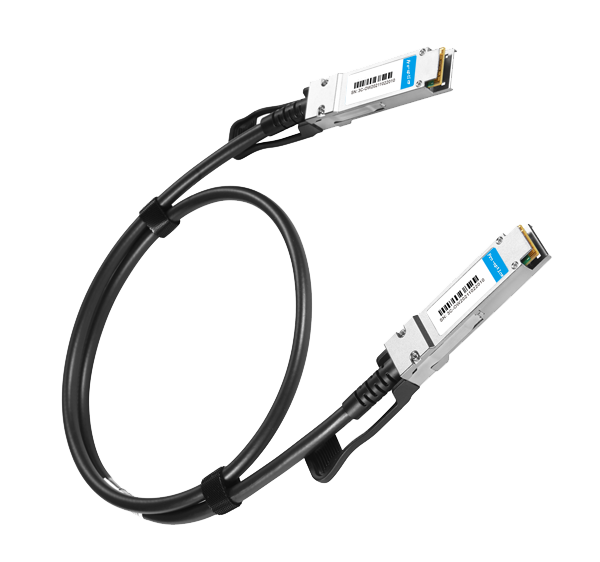

Pro-optics 100GbE QSFP28 passive copper cable is compatible with 100Gb/s networking equipment in data center. It is suitable for very short distances and offers a highly cost-effective way to establish a 100 Gigabit link connectivity between devices using QSFP28 ports. The QSFP28 copper cable is designed for 100Gb/s high-speed interconnecting networking applications such as data center, high-performance computing networks, enterprise core and distribution layers.

Features

• Compliant with SFF-8665/SFF-8679
• Compliant with IEEE 802.3bj
• 4 independent full-duplex channels
• Up to 25.8Gbps data rate per channel
• Single 3.3V power supply
• Much Lower cost when compared to genuine 100G QSFP28 DAC cable

Specification

  Vendor namePro-optics  Part Number100G-CU3M
  Form FactorQSFP28 Copper Cable  Data Rate100 Gb/s
  Passive or actively equalized Passive  Supply Voltage3.3V
  Cable Length3 meter (10ft)  Cable impedance100 Ω
  Cable TypeCopper Cable  Wire Gauge26-28AWG
  Minimum cable bend radius35 mm  Cable Jacket TypePVC
  ConnectorQSFP28/QSFP28  Digital Diagnostic MonitoringN/A
  EnvironmentOperating: 0°C to 70°C
Storage: -40°C to 85°C
  Weight0.4 kg
  ApplicationData centers, high-end servers
Enterprise wiring closets
  ComplianceIEEE802.3bj
InfiniBand EDR
SFF-8665, RoHS
