2-TX + 1-FX 10/100/1000M IES

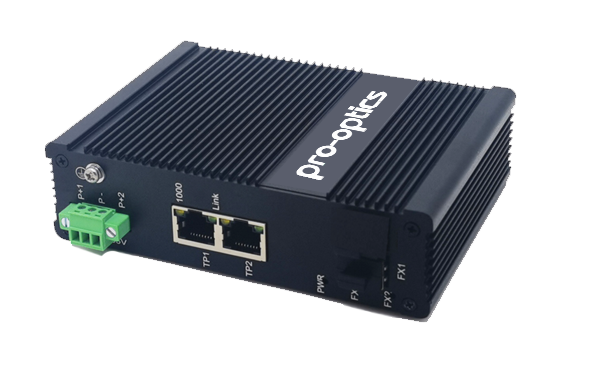

Pro-optics-LINK Pro-optics-SFP0102G is an industrial-grade Gigabit Ethernet Switch, featuring two 10/100/1000BASE-T copper ports and one 100/1000BASE-X SFP fiber port and packed in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C and a wide-ranging redundant power system (9~48V DC or 24V AC), the Pro-optics-SFP0101G provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.

Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the Pro-optics-SFP0102G’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.
Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) for enterprises becomes so easy to users when long-distance deployment is employed. The Pro-optics-SFP0102G can handle extremely large amounts of data in a secure topology linking to a metro switch, backbone or high-capacity server.


Small but Tough

The Pro-optics-SFP0102G is specifically designed with durable components and strong housing to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the Pro-optics-SFP0102G is ideal for service providers, campuses and public areas to deploy outdoor wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.


Dual Power Input for High Availability Network System

The Pro-optics-SFP0102G features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the Pro-optics-SFP0102G via power supply 2 alternatively without any loss of operation.


Low Power Consumption for Green Networking

The Pro-optics-SFP0102G, adopting the advanced green networking technology, provides cable length power saving, and link-up and link-down power saving. These features make the Pro-optics-SFP0102G consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the Pro-optics-SFP0101G can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.


Robust Protection

The Pro-optics-SFP0102G provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



Hardware Specifications
Copper Ports2-port 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation
SFP Slots1 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
ConnectorRemovable 3-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2
LED1 x LED for system and power:
 ■ Green: DC Power
2 x LED for each copper port
 ■ Green: 1000Mbps LNK/ACT
 ■ Orange:10/100Mbps LNK/ACT
1 x LED for SFP fiber slot
 ■ Green: LNK/ACT
ESD Protection6KV
Power Requirements9~48V DC, redundant power with reverse polarity protection, 24V AC power support
Power Consumption / Dissipation2.8 watts/9.5BTU
InstallationDIN-rail kit and wall-mount ear
EnclosureIP30 metal case
Dimensions (W x D x H)35 x 94 x 130 mm
Weight300g
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table4K entries
Buffer Memory1M bits on-chip buffer memory
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric10Gbps
Throughput (packet per second)7.4Mpps@64bytes
Jumbo Frame9K
Network Cables10/100/1000BASE-T
Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters)
EIA/TIA-568 100-ohm STP (max. 100 meters)
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3az Gigabit SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Environment
TemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5~90%, Storage: 5~90% (non-condensing)
