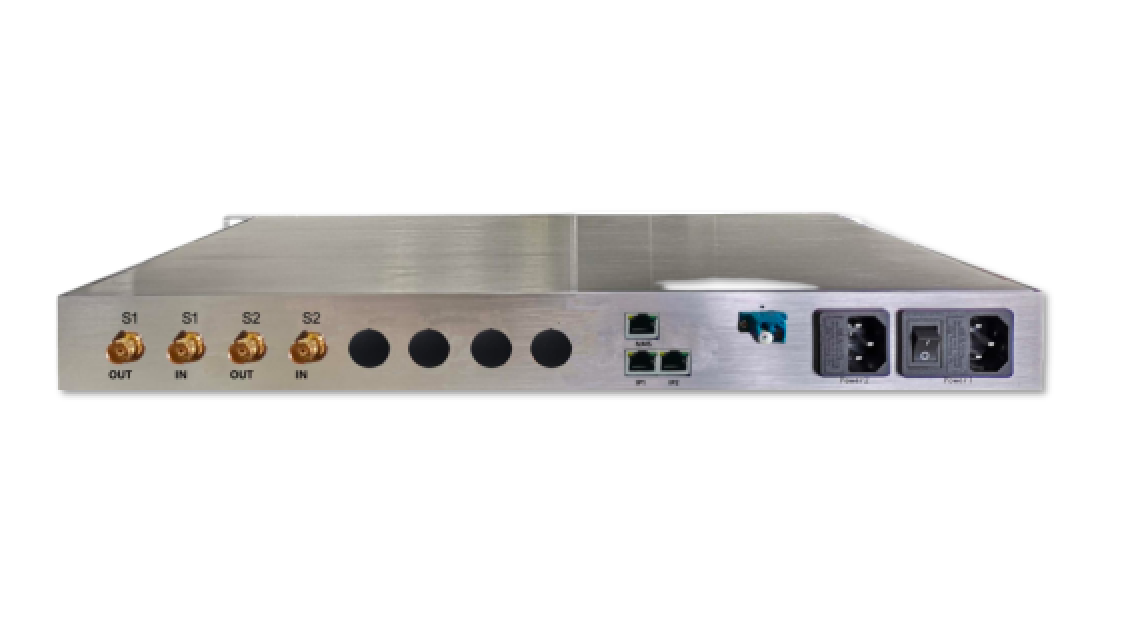

Product features

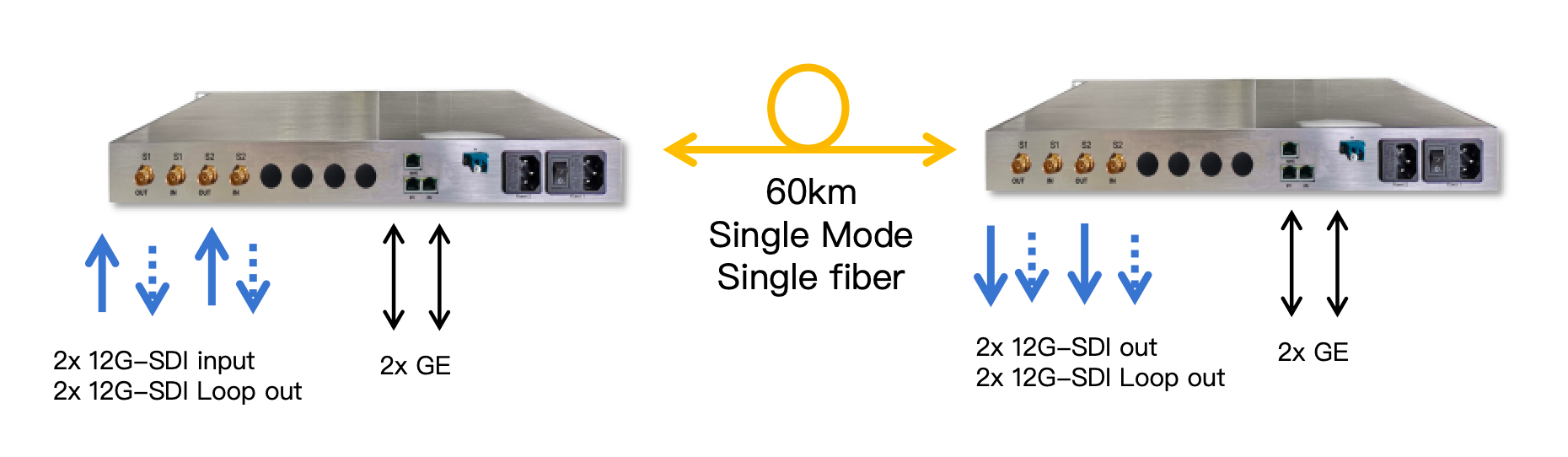

1 Single-fiber long-haul transport: Carries 2× 12G-SDI ultra-HD video channels and 2× independent Gigabit Ethernet channels over a single optical fiber, with a maximum reach of 60 km.
2 Automatic SDI signal detection and rate adaptation: Seamlessly supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI. The unit automatically identifies the incoming signal format — no manual configuration required.
3 SMPTE ST 178 compliant. Passes the full SDI pathological pattern stress test, guaranteeing signal integrity under the most demanding transmission conditions.
4 Front-panel LCD display providing real-time visibility into all key operating parameters:
n Laser operating wavelength
n Transmit and receive optical power levels
n Optical module temperature and dual power supply voltages
n Per-channel signal input / output status
n Remote-end status readback — transmitter and receiver can each monitor the operating state of the far end
5 Front-panel LED indicators provide dedicated, at-a-glance status for SDI signal I/O, optical link activity, and power supply health.
6 IP data transport compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.1d standards.
7 Ethernet ports with auto-negotiation at 10/100 /1000 Mbps and automatic MDI/MDIX crossover detection — straight-through or crossover cables both work.
8 Integrated web-based network management for remote monitoring and configuration via any standard browser — no dedicated software required.
9 Standard 1U rack-mount form factor, compatible with 19-inch equipment racks for centralized deployment and easy cable management.
10 Redundant AC + DC dual power supplies, operating independently with automatic seamless failover to ensure uninterrupted operation in the event of a power source failure.
Our solution — FPGA-based high-speed demultiplexing architecture

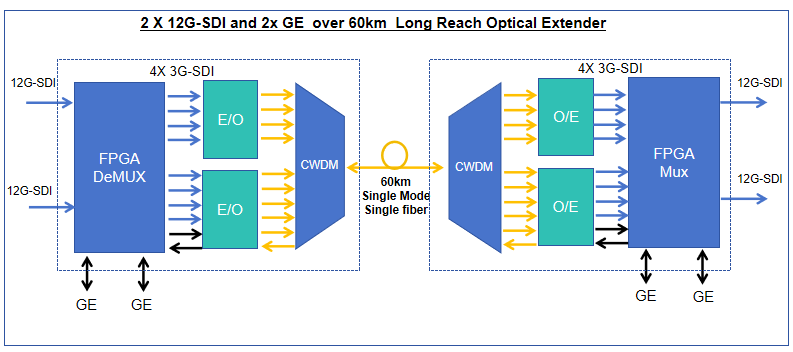

To overcome these barriers, we developed an FPGA-driven demultiplexing engine that transparently splits one 12G-SDI signal into four parallel 3G-SDI optical streams at the transmitter. Each stream travels independently over the fiber at a bitrate well within proven optical power budgets. At the receiver, the four streams are seamlessly recombined into a single, full-quality 12G-SDI ultra-HD output — with zero compression and no perceptible latency.
Our solution — FPGA-based high-speed demultiplexing architecture
Technical parameters
12G -SDI video input |
Number of output channels | 2- channel (each channel has 1 loop output ) |
Input level | >380mV P - P |
Input reflection loss | > 10 dB ( 11.88 GHz ) |
12G -SDI video output |
Number of output channels | 2- channel (each channel has 1 loop output ) |
Output level | 800mV P - P ±10% |
Overshoot /Undershoot | ≤± 1 0% |
Maximum jitter | ≤ 0.3UI ( 11.88 Gbps) |
Ethernet Channel |
Support Agreement | IEEE 802.3 , 10M , 100M , 1000M , 10 /100 / 1000M adaptive |
Working methods | Full-duplex or half-duplex |
Physical interface | RJ45 * 2 |
Optical path parameters |
Wavelength (nm) | 3G-SDI :1470, 1490, 1510, 1530, 1550 , 1570 , 1590 , 1610 nm, Gigabit Ethernet: 1430/1450 nm |
Transmit optical power per channel ( dBm ) | 0 ~ 2 |
Optical receive power per channel (dBm) | -22 ~ -3 ( Tested via pathological code signal ) |
Optical transmission distance (km) | 0 ~ 60km, Single mode fiber, Single fiber. |
Optical connector | Optional LC/PC, SC/ PC, FC /PC |
AC power | AC100 ~ 265 V < 30 W CE certified |
DC power supply | DC 9V ~18V < 30 W |
Size | 19-inch 1U chassis, 430mm x 230mm x 43mm |
