12G-SDI Fiber Broadcast System For Sony Camera System

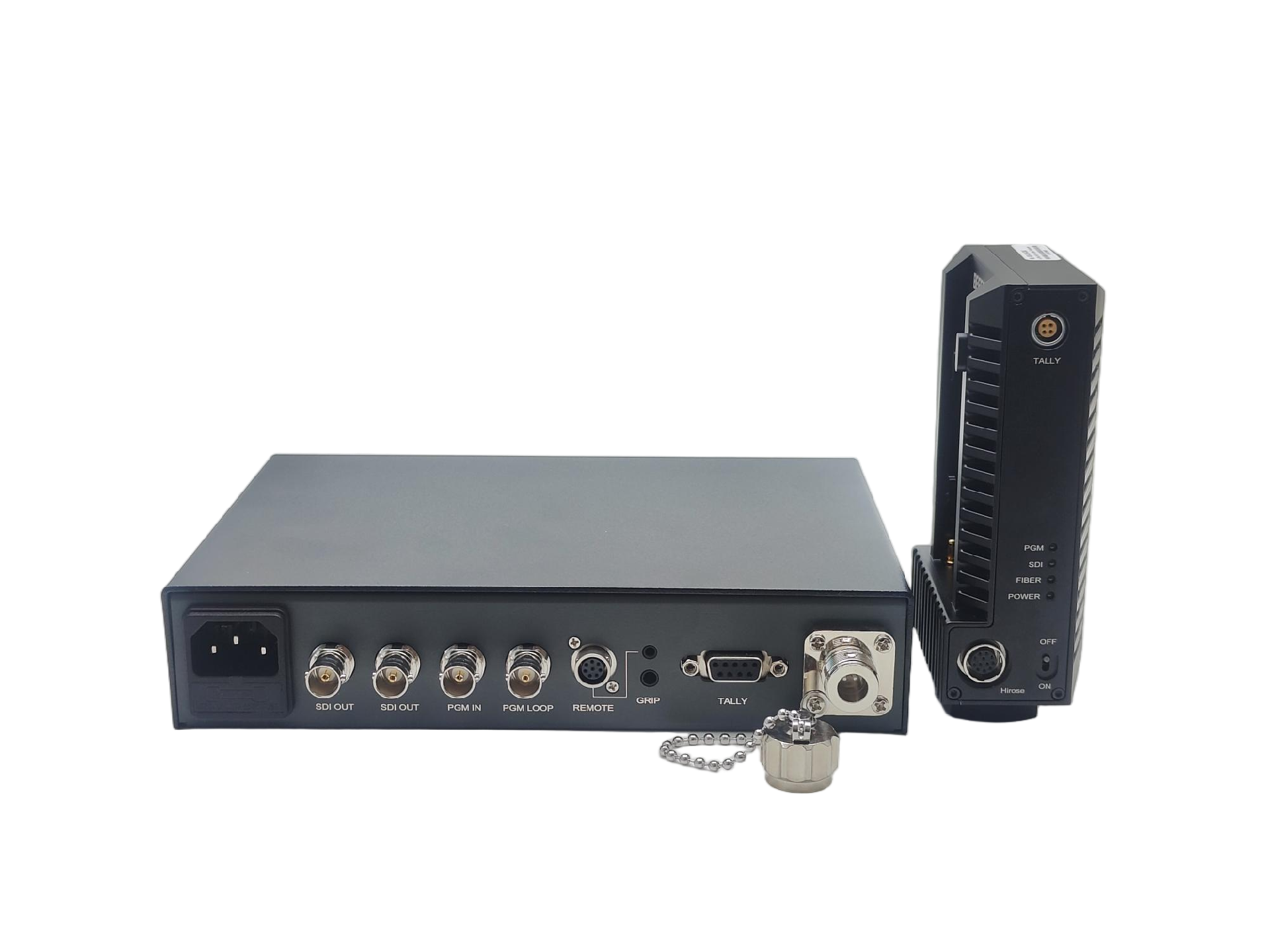

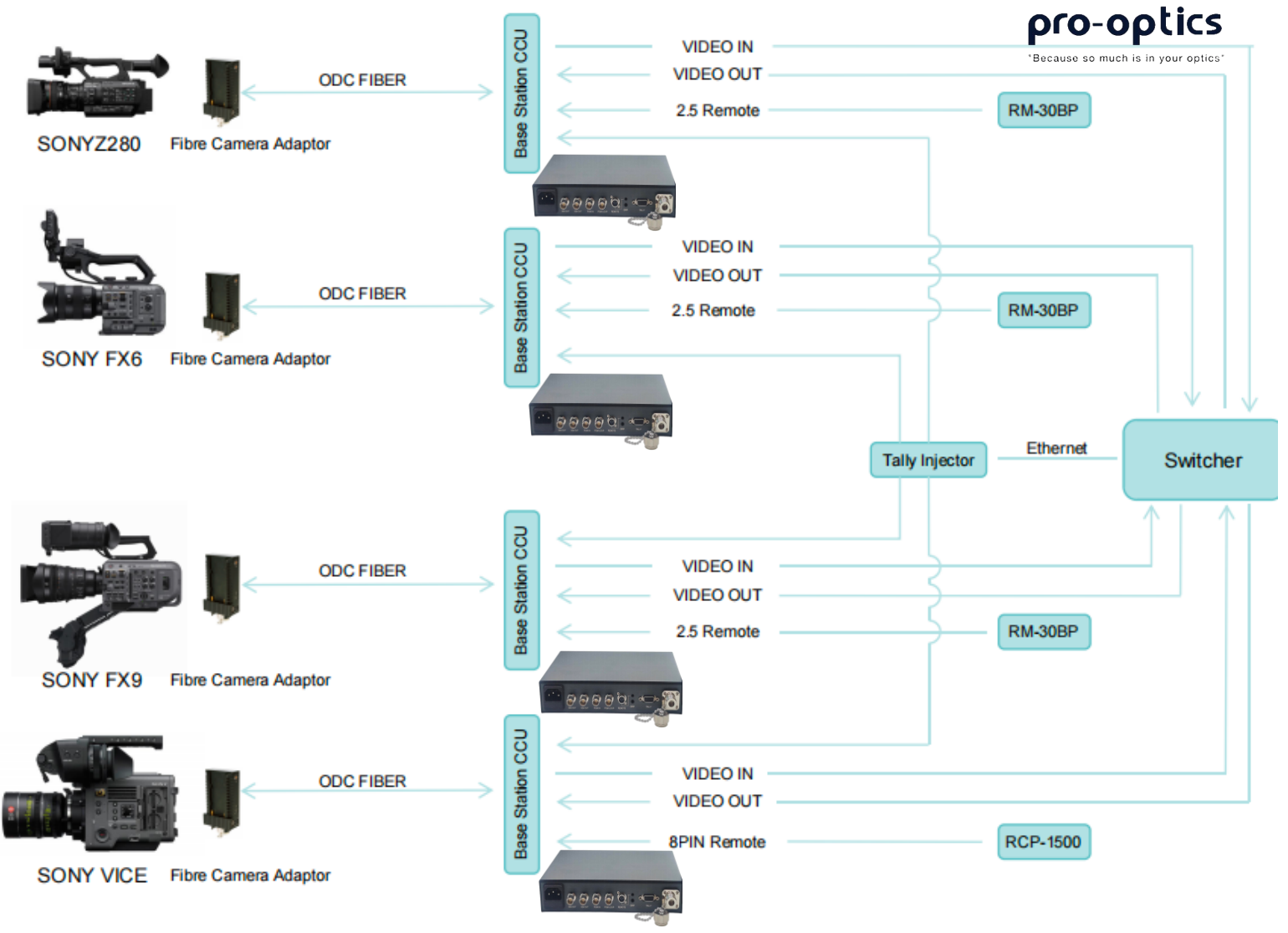

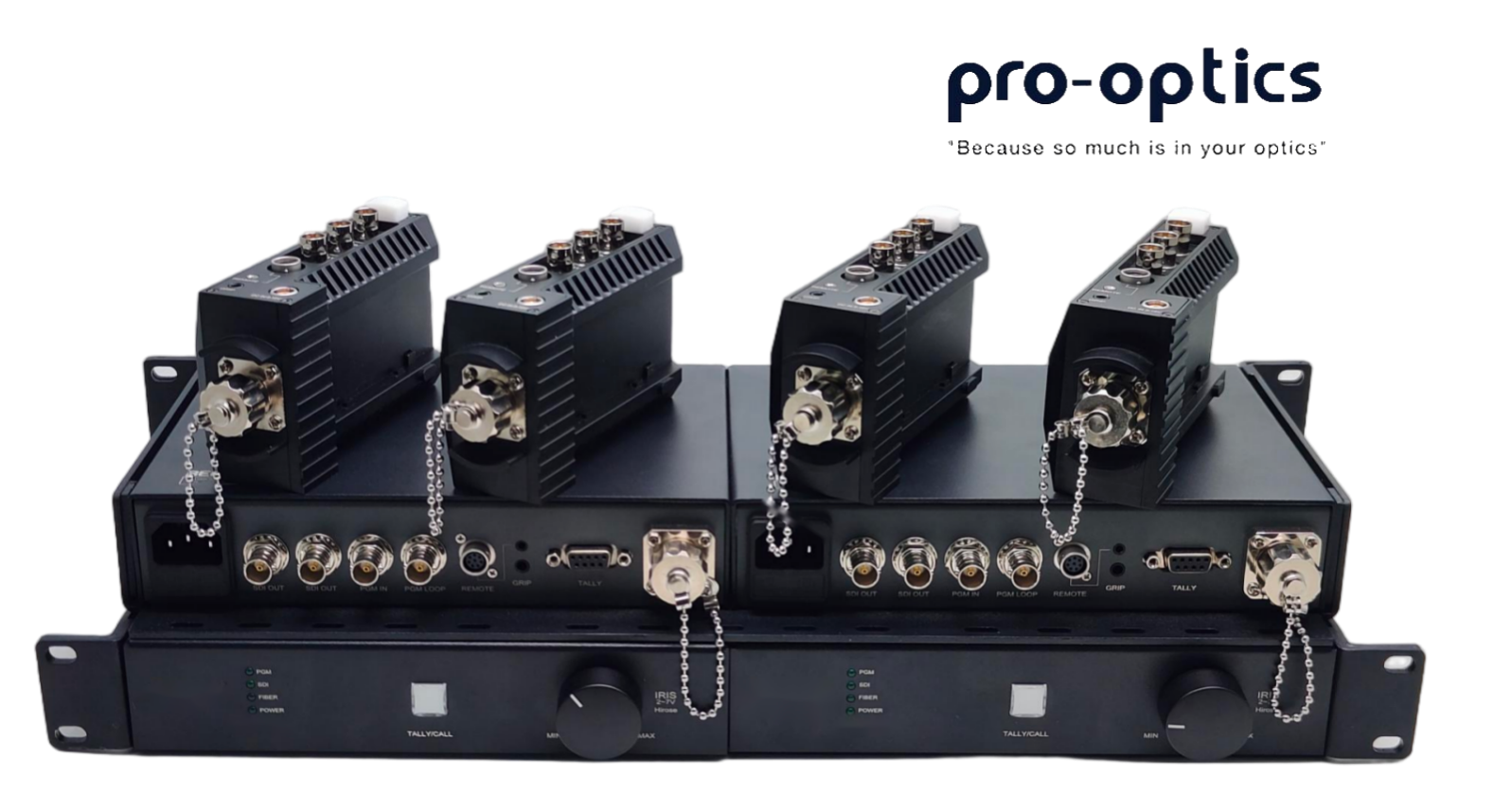

Pro-optics 12G-SDI Fiber Transmission System is purpose-built for SONY multi-camera productions. It features a robust 12G-SDI Fiber Camera Adapter and a 12G-SDI Fiber Base Station (CCU), connected via 10km single-mode fiber. The system seamlessly transports uncompressed 12G-SDI video, remote control data, and Tally Light signals, ensuring zero-latency and broadcast-grade reliability for live events.

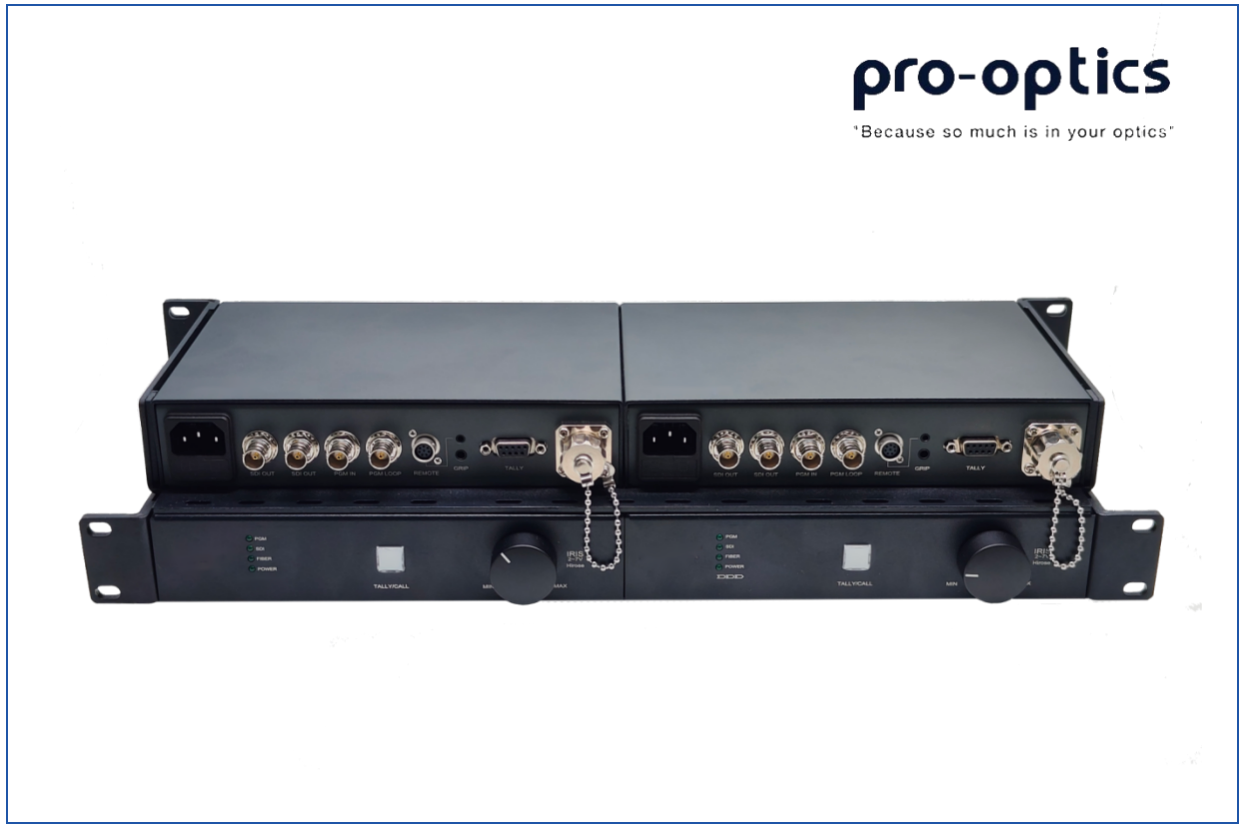

12G-SDI Fiber Base Station

• Centralized Control: Acts as the hub for all camera signals, providing comprehensive control and monitoring.

• Long-Distance Transmission: Ensures stable 4K60P signal delivery up to 10km over single-mode fiber.

• Robust & Reliable: Engineered for demanding live broadcast and field production environments.

• Seamless SONY CCU Functionality: Compatible with SONY's ecosystem, offering a familiar operational experience.

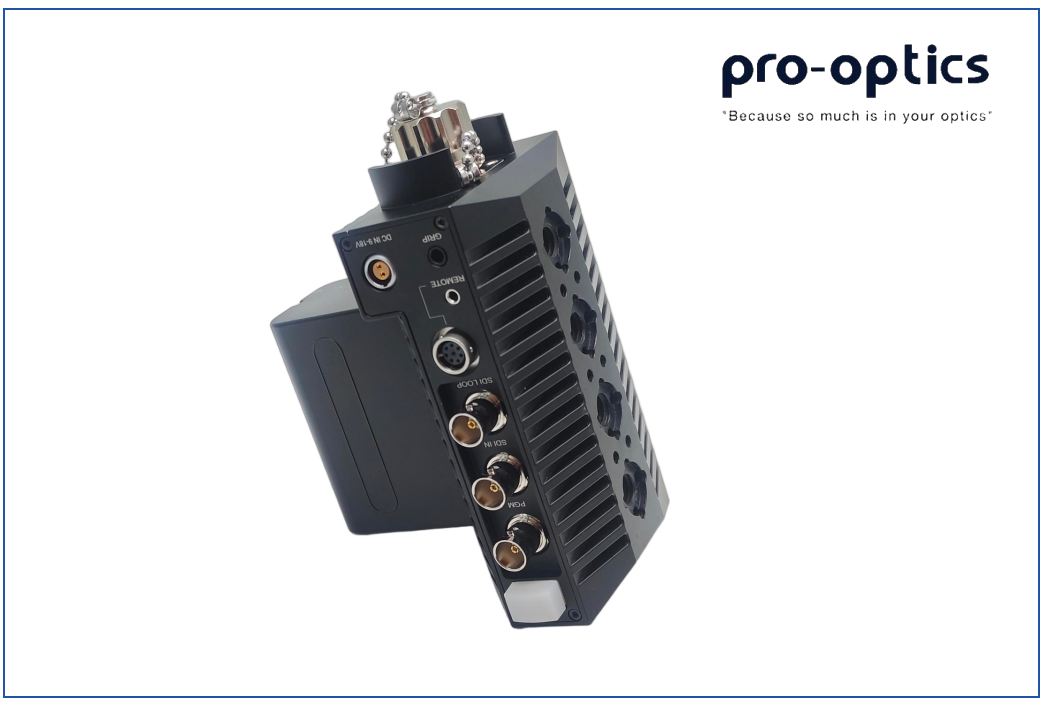

12G-SDI Fiber Camera Adapter

• 4K60P Ready: Full support for uncompressed 12G-SDI signals, ensuring pristine 4K UHD video quality.

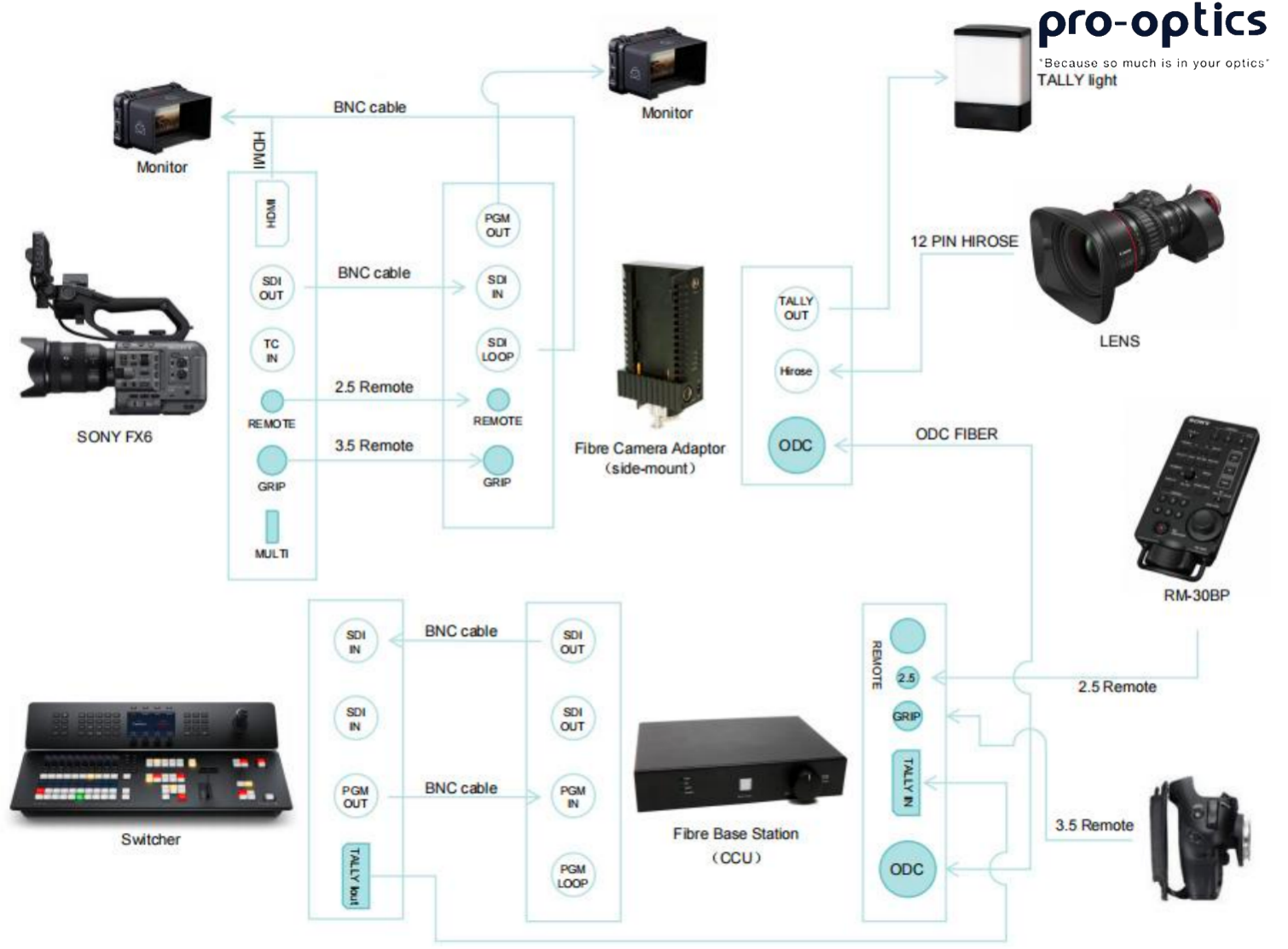

• SONY Camera Integration: Directly interfaces with a wide range of SONY professional cameras (e.g., FX6, FX9, VENICE series) for power, video, audio, and control.

• Single-Fiber Connectivity: Streamlines setup with robust ODC fiber connection, replacing bulky multi-core cables.

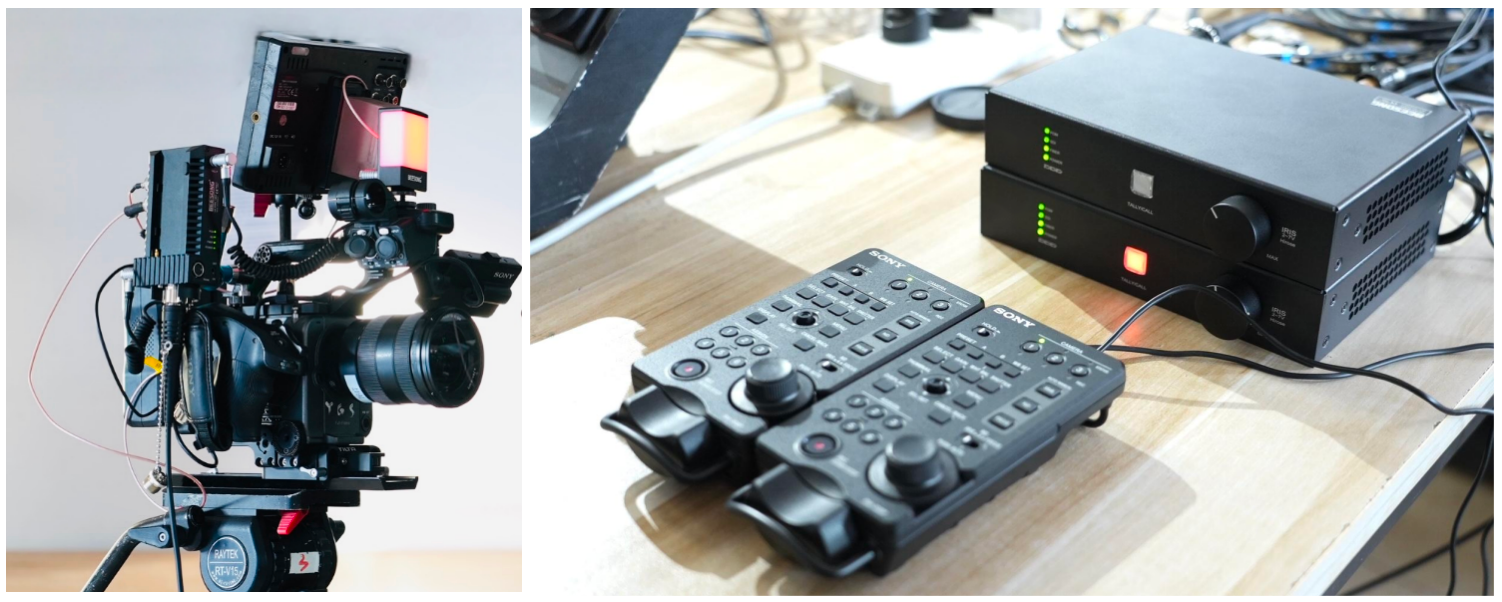

• Remote Control: Extends SONY RCP functionality for precise camera adjustments over long distances

Technical Characteristics

• Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI);

• Clock recovery function; (the clock restorer weakens high-frequency jitter and uses pure low-jitter clocks to regenerate data completely);

• The clock restorer is locked to 11.88Gb ps, 5.94Gb ps, 2.97Gb ps, 1.4 85Gb ps or 1.001 fractional sub-rate and 270Mbps SMPTE rate;

• The signal input has automatic cable equalization (EQ) function, and the output has drive (CD) function;

• Support plug-in SFP optic modules, which can be replaced according to the actual needs of the site and different distances or interfaces corresponding optic modules;Support single mode single fiber/dual-fiber transmission distance 10KM (default);

• Support status light display;

• Support wide voltage 9-18V power supply, power plug with lock to prevent falling off during operation;

• Plug and play, no debugging;

Optic Characteristics

• Wavelength: 1310nm (single mode dual fiber) 1270nm/1330nm (single mode single fiber)

• Fiber type: 9/125um single mode

• Rate: 12Gbps

• Transmitter power: 0~-3dB

• Receiver sensitivity: -12dB

• Fiber connector: ODC

• Transmission distance: single mode fiber, 10km

Pro-optics 12G-SDI Fiber Transmission System is purpose-built for SONY multi-camera productions.

Why Choose Pro-optics?

• Unmatched 4K60P Quality: Preserve every detail of your high-resolution footage.

• Simplified Setup: Reduce cable clutter and setup time with efficient fiber optic links.

• Enhanced SONY Workflow: Deep compatibility with SONY cameras and control panels.

• Reliable Performance: Built for the rigors of professional broadcasting.
