1600G OSFP224 DR8 | Pro-optics

Home>Products>Optical Transceivers>1600G

1600G OSFP224

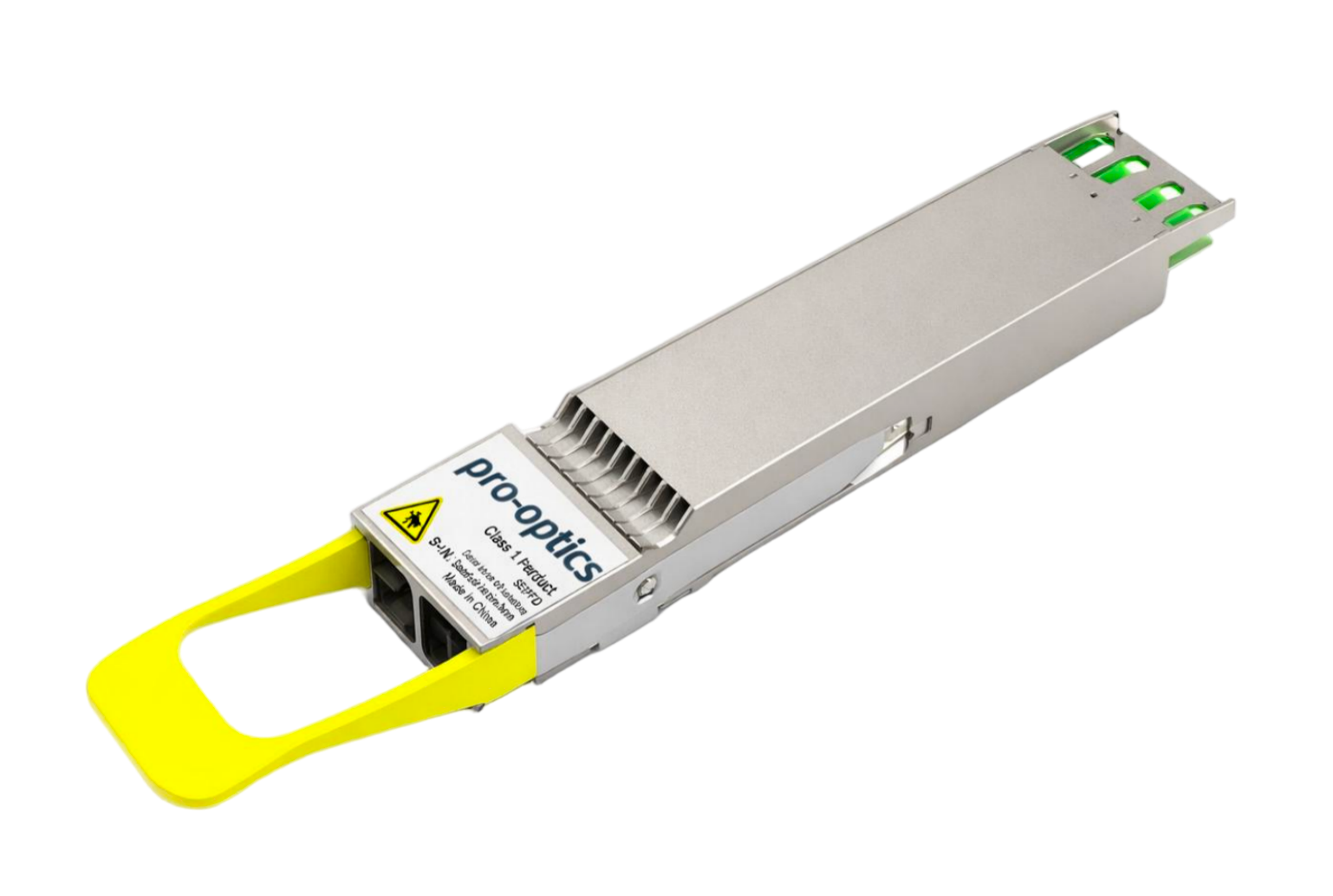

The Pro-optics POOP16DR8 transceiver is designed for 1.6T Ethernet and InfiniBand communication application links over 500m of single-mode fiber (SMF), and it is compliant with OSFP MSA,CMIS 5.3, IEEE802.3dj standards. The optical signal is transmitted over eight parallel channels at a central wavelength of 1310nm. The module contains 8 parallel channels on the transmitter and receiver, each operating at 212.5Gbps. It is suitable for 1.6T Ethernet, Data Center, InfiniBand, Breakout 2x800G DR4 or 8x200G DR Application. The optical interface is Dual MPO-12/APC connector.

Features

OSFP MSA 5.22 and CMIS 5.3 compliant

Dual MPO-12/APC optical connector

8x212.5Gbps (106.25GBd PAM4) electrical interface

8x212.5Gbps (106.25GBd PAM4) optical interface

Up to 500m over SMF

Power dissipation ≤ 25W

Operating case temperature: 0°C to 70°C

Compliant with IEEE802.3dj : 1.6TBASE-DR8 and 1.6TAUI-8 C2M

Built-in digital diagnostic functions

3.3V power supply voltage

RoHS compliant
