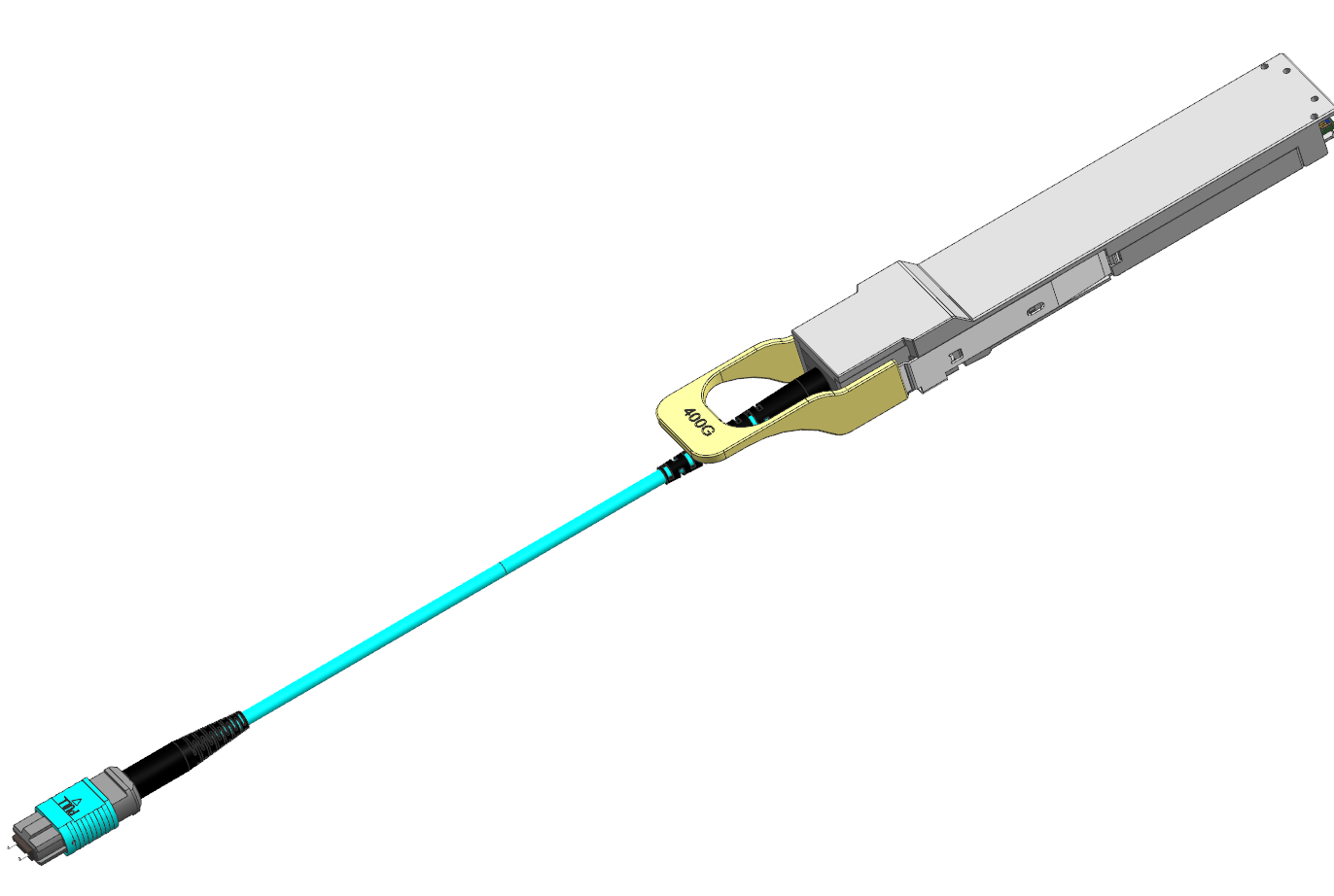

400G OSFP-RHS SR4 Liquid Cooling

Immersion Liquid cooling 400G OSFP-RHS SR4 Four-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 400Gigabit Ethernet applications. The transceivers are high performance modules that support liquid cooling for short-range data communication and interconnect application. They integrate four data lanes in each direction with 4x53.125GBd. The length of OSFP SR4 is up to 100 meters. The modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

General Description

Immersion Liquid cooling 400G OSFP-RHS SR4 Four-Channel,  Parallel, Pluggable,  Fiber-Optic OSFP for 400Gigabit  Ethernet applications.

The transceivers are  high  performance modules that support liquid cooling for short-range data communication and interconnect application. They integrate four data lanes in each direction with 4x53.125GBd. The length of OSFP SR4 is up to  100  meters. The  modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

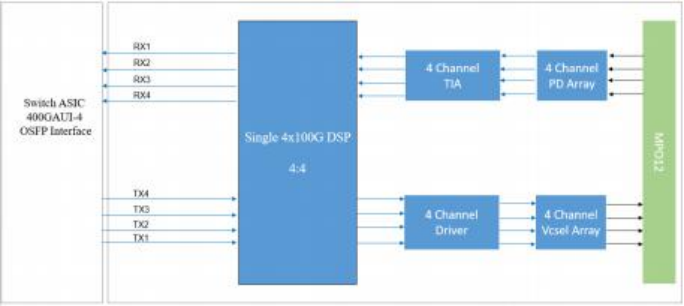

Functional Blcok Diagram
